Q1GATE 2022MCQ

A semi-circular bar of radius R m, in a vertical plane, is fixed at the end G, as shown in the figure. A horizontal load of magnitude P kN is applied at the end H. The magnitude of the axial force, shear force, and bending moment at point Q for $\theta =45 ^{\circ}$ , respectively, are

🚀 Solve in Practice Mode

📖 Explanation

\begin{aligned} (F_Q)&=P\sin \theta =\frac{P}{\sqrt{2}}&(\; at\; \theta =45^{\circ})\\ (S_Q)&=P\cos \theta =\frac{P}{\sqrt{2}}&(\; at\; \theta =45^{\circ})\\ M_Q&=PR \sin \theta =\frac{PR}{\sqrt{2}}&( \; at\; \theta =45^{\circ}) \end{aligned}

Q2GATE 2021NAT

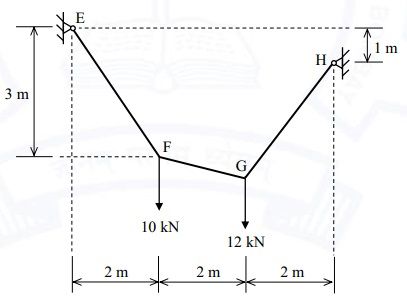

A perfectly flexible and inextensible cable is shown in the figure (not to scale). The external loads at F and G are acting vertically. The magnitude of tension in the cable segment FG (in kN, round off to two decimal places) is _______

🚀 Solve in Practice Mode

📖 Explanation

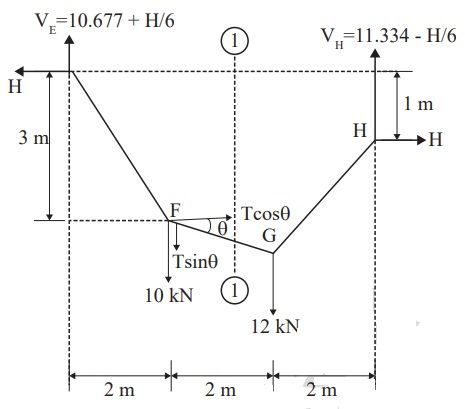

\begin{aligned} \Sigma M_F=0\\ \left ( 10.667+\frac{H}{6} \right )2-H \times 3=0\\ H=8\; kN\\ V_E=10.667+\frac{8}{6}\\ V_E=12\; kN\\ V_H=10\; kN \end{aligned}

Consider left side of section (1)-(1)

\begin{aligned} \Sigma H=0\\ T \cos \theta =H\\ T \cos \theta =8\\ T \sin \theta =2\\ \therefore \;\; T^2 \cos ^2\theta + T^2 \sin ^2 \theta =8^{2+}2^2\\ T=8.246\; kN \end{aligned}

Tension in segment GF is 8.246 kN.

Q3GATE 2020NAT

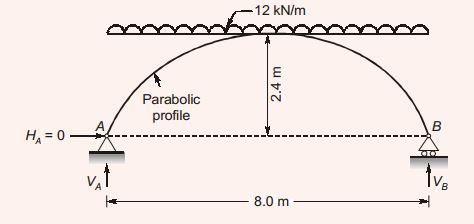

A planar elastic structure is subjected to uniformly distributed load, as shown in the figure Neglecting self-weight, the maximum bending moment generated in the structure (in kNm, round off to the nearest integer), is ___________ .

🚀 Solve in Practice Mode

📖 Explanation

$V_A=V_B=\frac{wL}{2}=\frac{12 \times 8}{2}=48 kN$ As horizontal thrust is zero so it behaves like a beam (curved beam) $M_{max}=\frac{wL^2}{8} \; (\text{ At crown})$ $=\frac{12 \times 8^2}{8}=96KNm$

Q4GATE 2017MCQ

The figure shows a two-hinged parabolic arch of span L subjected to a uniformly distributed load of intensity q per unit length The maximum bending moment in the arch is equal to

🚀 Solve in Practice Mode

Q5GATE 2010MCQ

A three hinged parabolic arch having a span of 20m and a rise of 5m carries a point load of 10 kN at quarter span from the left end as shown in the figure. The resultant reaction at the left support and its inclination with the horizontal are respectively

🚀 Solve in Practice Mode

📖 Explanation

Let the vertical reactions at left and right support be $V_{L}$ and $V_{R}$ upwards respectively. Taking moments about right support, we get,

\begin{aligned} V_{L} \times 20-10 \times 15&=0 \\ \Rightarrow \quad V_{L}&=7.5 \mathrm{kN} \\ \therefore \quad V_{R}&=10-7.5=2.5 \mathrm{kN} \end{aligned}

Let the horizontal reaction at left support be H from left to right. Taking moments about the crown from left, we get,

\begin{aligned} 7.5 \times 10-10 \times 5-H \times 5 &=0 \\ \Rightarrow \quad H&=5 \mathrm{kN} \end{aligned}

Resultant reaction,

\begin{aligned} R &=\sqrt{H^{2}+V_{L}^{2}} \\ &=\sqrt{5^{2}+(7.5)^{2}} \\ &=9.01 \mathrm{kN} \end{aligned}

Let the resultant reaction at the left support makes an angle $\theta$ with the horizontal.

\begin{aligned} & \tan \theta=\frac{7.5}{5} \\ \Rightarrow & \theta=\tan ^{-1}(1.5) \\ \Rightarrow & \theta=56.31^{\circ} \end{aligned}

Q6GATE 2004MCQ

A three hinged parabolic arch ABC has a span of 20 m and a central rise of 4 m. The arch has hinges at the ends and at the centre. A train of two point loads of 20 kN and 10 kN, 5m apart, crosses this arch from left to right, with 20 kN load leading. The maximum thrust induced at the supports is

🚀 Solve in Practice Mode

📖 Explanation

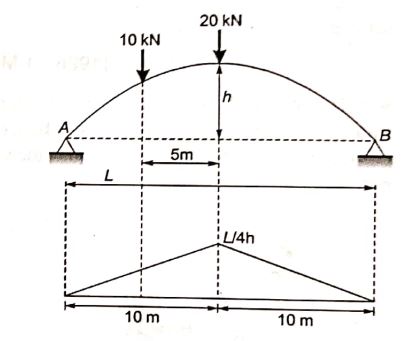

In case of a three hinged parabolic arch, the influence line diagram for horizontal thrust is linear. Maximum thrust will be induced at the supports when 20 kN load is at the crown. Ordinate of the ILD at a distance of 5 m from $A=\frac{5}{10} \times \frac{L}{4 h}=\frac{1}{2} \times \left(\frac{20}{4 \times 4}\right)=0.625 \mathrm{kN}$ also $\frac{L}{4 h}=\frac{20}{4 \times 4}=1.25 \mathrm{kN}$ Thus, horizontal thrust. $H=10 \times 0.625+20 \times 1.25=31.25 \mathrm{kN}$
