Q1GATE 2015MCQ

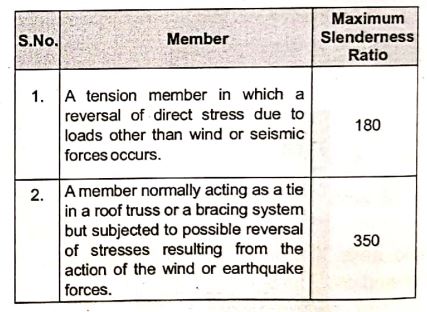

A steel member 'M' has reversal of stress due to live loads, whereas another member 'N' has reversal of stress due to wind load. As per IS 800:2007, the maximum slenderness ratio permitted is:

🚀 Solve in Practice Mode

Q2GATE 2007MCQ

A steel flat of rectangular section of size $70\times 6$ mm is connected to a gusset plate by three bolt each having a shear capacity of 15 kN in holes having diameter 11.5 mm. If the allowable tensile stress in the flat is 150 MPa, the maximum tension that can be applied to the flat is

🚀 Solve in Practice Mode

📖 Explanation

Along (1)-(1)

\begin{aligned} A_{net}&=\left ( 70-11.5 \right )\times 6 \\ &=351\, mm^{2} \\ P&=\left ( A_{net} \right )\times \left ( f_{y} \right ) \\ &=351\times 150 =52.65\, kN \end{aligned}

Along (2)-(2)

\begin{aligned} A_{net}&=\left ( 70-2\times 11.5 \right )\times 6 \\ &=282\, mm^{2} \\ P&=\left ( A_{net} \right )\times f_{y} \\ &=282\times 150 N=42.3 kN\end{aligned}

Q3GATE 2006MCQ

In the design of welded tension members, consider the following statements : I. The entire cross-sectional are of the connected leg is assumed to contribute to the effective area in case of angles. II. Two angles back-to-back and tack-welded as per the codal requirements may be assumed to behave as a tee section. III. A check on slenderness ratio may be necessary in some cases. The TRUE statements are

🚀 Solve in Practice Mode

Q4GATE 2005MCQ

The permissible stress in axial tension $\sigma _{st}$ in steel member on the net effective area of the section shall not exceed the following value ( $f_{y}$ is the yield stress)

🚀 Solve in Practice Mode

Q5GATE 2004MCQ

Two equal angles ISA $100mm\times 100mm$ of thickness 10 mm are placed back to back and connected to the either side of a gusset plate through a single row of 16 mm diameter rivets in double shear. The effective areas of the connected and unconnected legs of each of these angles are 775 m $m^{2}$ and 950 m $m^{2}$ , respectively. If the angles are NOT tack riveted, the net effective area of this pair of angles is

🚀 Solve in Practice Mode

📖 Explanation

When angles are not tack riveted, they will be considered as single angles connected on one side of gusset plate,

\begin{aligned} A_{e}&=\left ( A_{1}+kA_{2} \right )\times 2 \\ k&=\frac{3A_{2}}{3A_{1}+A_{2}} \\ &=\frac{3\times 775}{3\times 775+950} \\ &=0.71 \\ A_{e}&=\left ( 775+0.71\times 950 \right )\times 2 \\ &=2899\, mm^{2}\end{aligned}

Q6GATE 2003MCQ

A truss tie consisting of 2 ISA 75x75x8 mm carries a pull of 150 kN. At ends the two angels are connected, one each on either side of a 10 mm thick gusset plate, by 18 mm diameter rivets arranged in one row. The allowable stresses in rivet are $f_s=90.0N/mm^2$ and $f_{br}=250N/mm^2$ Minimum number of rivets required at each end is

🚀 Solve in Practice Mode

📖 Explanation

Strength of rivets in shearing, $=\frac{2\times \pi \left ( 18+1.5 \right )^{2}\times 90}{4}=53.76 kN$ Strength of rivets in bearing, $=\left ( 18+1.5 \right )\times 10\times 250 =48.75 kN$ $\therefore$ Rivet value $=48.75 kN$ Number of rivets $=\frac{150}{48.75}=3.08 \approx 4$

Q7GATE 2002MCQ

ISA 100x100x10 mm (Cross sectional area = 1908 $mm^{2}$ ) serves as tensile member. This angle is welded to a gusset plate along A and B appropriately as shown. Assuming the yield strength of the steel to be 260 $N/mm^{2}$ . The tensile strength of this member can be taken to be approximately,

🚀 Solve in Practice Mode

📖 Explanation

\begin{aligned} A_{1} &= 1000 \\ A_{2} &= 1000 \\ \therefore \; \; k&=\frac{3A_{1}}{3A_{1}+A_{2}}=0.75 \\ A&=A_{1}+kA_{2} \\ &=1750 mm^{2} \end{aligned}

Tensile strength of member $=0.6\times f_{y}\times A =0.6\times 280\times 1750=273 kN$ So, tensile strength can be taken as 225 kN.
