Electromagnetic radiation exhibits an inverse relationship between wavelength and frequency across its broad continuous spectrum. Arranging the spectrum by ascending frequency places radio waves and microwaves at the lower energy end, while ultraviolet waves, X-rays, and gamma rays occupy the higher energy tiers. Because wavelength diminishes as frequency intensifies, the radiation possessing the greatest frequency inherently features the shortest wavelength.

Accurate observation of a microscopic particle requires an electromagnetic wave whose wavelength is comparable to or smaller than the dimensions of the particle. The necessary frequency is determined using the wave equation $\nu = \frac{c}{\lambda}$, where $c$ is the speed of light and $\lambda$ corresponds to the particle dimension of $3 \times 10^{-4} \text{ cm}$. Substituting the speed of light as $3 \times 10^{10} \text{ cm/s}$ into the rearranged formula yields $\nu = \frac{3 \times 10^{10}}{3 \times 10^{-4}}$, resulting in a frequency of the order of $10^{14}$ hertz.

The electromagnetic spectrum categorizes radiation into distinct bands based on their frequency and wavelength, spanning from high-energy, short-wavelength rays to low-energy, long-wavelength transmissions. Gamma rays and X-rays occupy the extreme high-frequency end of the spectrum with incredibly microscopic wavelengths, while microwaves occupy an intermediate band. At the opposite end of the spectrum, radio waves possess the lowest frequencies and largest spatial oscillations, giving them by far the longest wavelengths of all electromagnetic radiation.

The phase velocity of an electromagnetic wave in a dielectric medium is given by the relation $v = \frac{c}{\sqrt{\varepsilon_r}}$, where $c$ is the speed of light in vacuum and $\varepsilon_r$ is the dielectric constant. Substituting $\varepsilon_r = 9$ into this expression yields a wave speed of $10^8$ meters per second. Using the frequency $f = 10^6$ hertz derived from the time-dependent term in the electric field equation, the wavelength inside the medium is evaluated as $\lambda = \frac{v}{f}$, resulting in a value of $100$ meters rather than $300$ meters.

The atomic and molecular architecture of crystalline solids is probed by utilizing radiation whose wavelength matches the typical interatomic distances found within the crystal lattice. X-rays possess wavelengths on the order of angstroms, which aligns perfectly with the spacing between adjacent atoms in solid materials. When these energetic electromagnetic waves strike a crystal, they undergo diffraction, producing distinct interference patterns that allow scientists to map out the precise spatial arrangement of the atoms.

Electron emission phenomena generally involve physical processes where electrons are liberated from a material's surface through thermal energy, photon impact, or particle bombardment. Thermionic emission, photoelectric emission, and secondary emission all result in actual free electrons escaping outward into the surrounding space. In contrast, X-ray emission arises entirely from internal atomic mechanics, specifically when high-energy electrons transition between inner orbital shells within the atom itself, releasing energy as photons rather than ejecting free electrons externally.

Electromagnetic signals transmitted by antennas travel across the Earth's surface through distinct propagation mechanisms depending on frequency and atmospheric conditions. Ground waves glide directly through the region between the Earth's surface and the lower atmosphere, utilizing the curvature of the planet to follow its contour. Simultaneously, high-frequency signals can be directed upward as sky waves, where they encounter the ionized layers of the upper atmosphere and reflect back down to distant receivers. Because antennas are fully capable of launching and capturing both of these primary modes, terrestrial communication relies heavily on a combination of these wave types.

The fundamental relationship connecting wave speed, frequency, and wavelength is expressed by the equation $c = f\lambda$, where $c$ represents the speed of light in a vacuum. Rearranging this formula to solve for the unknown parameter yields the equation $\lambda = \frac{c}{f}$. Substituting the standard vacuum light speed value of $3 \times 10^{8}$ and the given frequency value of $100$ into this expression calculates the resulting wavelength as $3 \times 10^{6}$ meters.

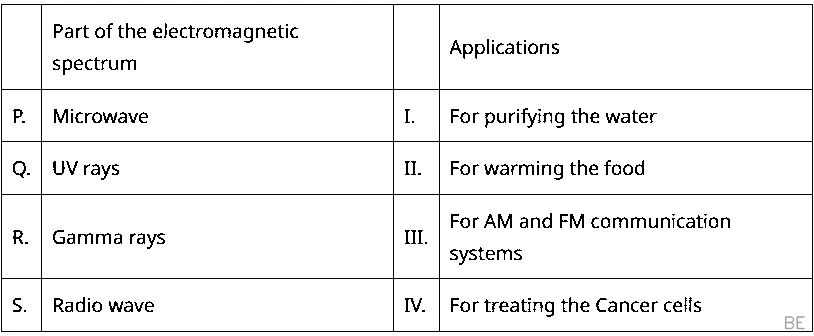

Different regions of the electromagnetic spectrum possess unique properties that dictate their practical applications across technology and medicine. Microwaves efficiently heat meals by exciting water molecules, ultraviolet rays utilize germicidal properties to purify water, and high-energy gamma rays target and destroy cancer cells. Concluding the spectrum, radio waves feature extended wavelengths ideally suited for transmitting AM and FM communication signals across long distances.

The stratospheric ozone layer functions as a vital atmospheric shield by absorbing incoming solar ultraviolet radiation across a wide span of short wavelengths. Because atmospheric ozone intercepts multiple distinct bands including wavelengths less than, equal to, and slightly above three times ten to the minus seven meters, it effectively blocks these harmful energetic rays entirely. Therefore, the protective capacity of the ozone layer comprehensively covers all these specified dimensional ranges.

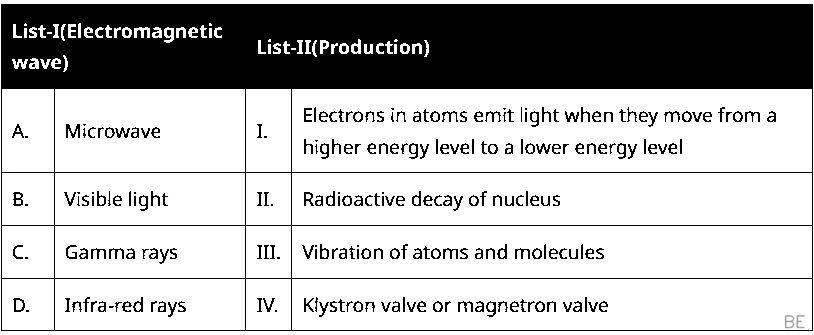

Different regions of the electromagnetic spectrum originate from distinct physical phenomena involving atomic, molecular, and nuclear processes. Microwaves are typically generated using specialized electronic devices such as klystron or magnetron valves, whereas visible light is emitted when atomic electrons transition between different energy levels. Furthermore, high-energy gamma rays originate directly from the radioactive decay of atomic nuclei, and infrared rays are produced by the thermal agitation and vibration of atoms and molecules.

The amplitude of the magnetic field in an electromagnetic wave is related to the electric field amplitude by $B_0 = \frac{E_0}{c}$. Dividing the given electric field amplitude of $60$ volts per meter by the speed of light $3 \times 10^8$ meters per second gives a magnetic field amplitude of $2 \times 10^{-7}$ tesla. Since the electric field oscillates along the z-axis and the wave propagates along the negative x-axis indicated by the positive sign in the phase argument, the magnetic field must oscillate along the y-axis to satisfy the transverse right-handed coordinate requirement while maintaining the identical phase function of $5x + 1.5 \times 10^9 t$.

Electromagnetic radiation encompasses a wide spectrum ordered by frequency and wavelength, where energy and frequency increase inversely with wavelength. Among all known spectral regions, gamma rays originate from nuclear transitions and possess the highest frequencies and highest energies. Consequently, they occupy the extreme lower end of the spectrum with the smallest possible wavelengths.

Electromagnetic radiation is generated exclusively by accelerated charges because a varying electric field creates a magnetic field and vice-versa, sustaining a self-propagating wave. A charged particle moving with a uniform velocity produces only a steady, non-time-varying magnetic field accompanied by its electrostatic field, lacking the acceleration required to radiate electromagnetic energy. Therefore, uniform motion cannot initiate or sustain an electromagnetic wave.

The ratio of the electric field intensity to the magnetic field intensity in a propagating electromagnetic wave represents the intrinsic impedance of the medium, expressed as $\sqrt{\frac{\mu}{\varepsilon}}$. Expressing this in terms of free-space constants and relative properties yields the product $\sqrt{\frac{\mu_0}{\varepsilon_0}} \sqrt{\frac{\mu_r}{\varepsilon_r}}$. Substituting the given free-space impedance value of $120\pi$ and the square root of the given permeability-to-permittivity ratio of $\frac{1}{4}$ results in $120\pi \times \frac{1}{2}$, which simplifies directly to $60\pi$.

The relationship between the amplitudes of the electric and magnetic fields in an electromagnetic wave is given by the equation $c = \frac{E_0}{B_0}$. Rearranging this expression to solve for the magnetic field amplitude yields $B_0 = \frac{E_0}{c}$. Substituting the electric field amplitude of 48 V m$^{-1}$ and the speed of light of $3 \times 10^8$ m s$^{-1}$ into this formula results in a magnetic field amplitude of $1.6 \times 10^{-7}$ T.

Capacitive reactance is inversely proportional to the angular frequency of the alternating current source, as expressed by $X_C = \frac{1}{\omega C}$. When the operating frequency decreases, the capacitive reactance increases, causing the overall circuit current to diminish. Because the displacement current in the capacitor's dielectric equals the conduction current in the external wires, this reduction in circuit current directly leads to a decrease in the displacement current.

The maximum energy of an X-ray photon corresponds to the entire kinetic energy acquired by the accelerated electron, governed by the energy conservation relation $eV = \frac{hc}{\lambda_{\min}}$. Rearranging this fundamental principle to solve for the minimum wavelength gives $\lambda_{\min} = \frac{hc}{eV}$. Since Planck's constant, the speed of light, and the elementary charge are constant, the minimum wavelength is inversely proportional to the accelerating potential difference.

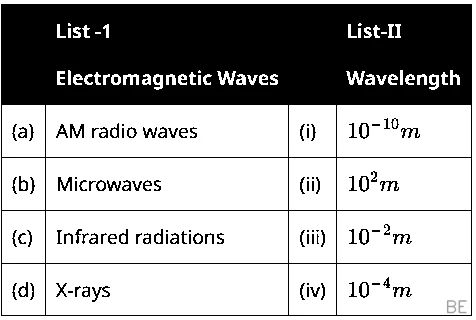

The electromagnetic spectrum spans a broad range of wavelengths, with radio waves occupying the longest end and X-rays sitting near the shortest end. AM radio waves have a characteristic large wavelength of 10^2 meters, whereas microwaves are much shorter at 10^-2 meters. Infrared radiations possess a wavelength of 10^-4 meters, and high-frequency X-rays have a tiny wavelength of 10^-10 meters.

The speed of an electromagnetic wave in any material medium is determined by the absolute permittivity and absolute permeability of that medium via the wave propagation relation $v = \frac{1}{\sqrt{\varepsilon \mu}}$. Expressing these medium properties in terms of their relative values and free-space constants yields $v = \frac{1}{\sqrt{\varepsilon_0 \varepsilon_r \mu_0 \mu_r}}$. Factoring out the vacuum terms, which combine to form the speed of light in vacuum $c$, leaves the simplified expression $v = \frac{c}{\sqrt{\varepsilon_r \mu_r}}$.
