GATE ECE 2015 Set 3

We can solve this efficiently by using the properties of determinants. The key property is that for any two square matrices $B$ and $C$, the determinant of their product is the product of their determinants, i.e., $|BC| = |B||C|$.

Applying this to our problem, we get:
$|A^T A^{-1}| = |A^T| |A^{-1}|$

Next, we use two more fundamental determinant rules:

1. The determinant of a matrix transpose is equal to the determinant of the original matrix: $|A^T| = |A|$.
2. The determinant of an inverse matrix is the reciprocal of the original matrix's determinant: $|A^{-1}| = \frac{1}{|A|}$.

Substituting these into our equation yields:
$|A^T A^{-1}| = |A| \cdot \frac{1}{|A|} = 1$

This result holds for any invertible matrix $A$, so we don't even need to calculate the specific values for this particular matrix.

The problem asks us to find the curve on the x-y plane where two partial derivatives are equal.

First, let's find the partial derivative of $x^2 + y^2$ with respect to $y$. We treat $x$ as a constant, so the derivative of $x^2$ is zero. This gives us:
$\frac{\partial}{\partial y}(x^2 + y^2) = 2y$

Next, we find the partial derivative of $6y + 4x$ with respect to $x$. We treat $y$ as a constant, so the derivative of $6y$ is zero. This gives us:
$\frac{\partial}{\partial x}(6y + 4x) = 4$

The question states that these two results are equal. Setting them equal gives the equation $2y = 4$. Solving for $y$, we find the contour is the horizontal line $y = 2$.

This integral can be solved using Cauchy's Integral Formula for derivatives. The general form of this powerful theorem is:
$\oint_{C}\frac{f(z)}{(z-z_{0})^{k+1}}dz = \frac{2\pi i}{k!}f^{(k)}(z_{0})$
Here, $f(z)$ is a function that is analytic inside the contour $C$, and $f^{(k)}(z_{0})$ is its k-th derivative evaluated at $z_{0}$.

In our specific problem, the integral is $\oint_{C}\frac{dz}{(z-z_{0})^{n+1}}$. We can match this to the formula by choosing our analytic function to be $f(z) = 1$. The problem requires the $(n+1)$-th power in the denominator, so we have $k=n$.

Since $n$ is a non-zero integer, we must find the n-th derivative of $f(z) = 1$. The first derivative of a constant is 0, and so are all higher-order derivatives. Therefore, $f^{(n)}(z_{0}) = 0$. Substituting this into the formula gives a final result of 0.

To find the area under the curve, we must calculate the integral of $g(t)$ over all time. The unit step function $u(t)$ makes the function zero for $t<0$, so the integral becomes $\int_{0}^{\infty } e^{-t}\sin(2\pi t) dt$.

A clever way to solve this is to recognize that this integral is the exact definition of the Laplace transform of $e^{-t}\sin(2\pi t)$, which we'll call $G(s)$, evaluated at $s=0$.

Using a standard Laplace transform pair for a damped sine wave, we have:
$G(s) = \mathcal{L}\{e^{-t}\sin(2\pi t)\} = \frac{2\pi}{(s+1)^2 + (2\pi)^2}$

The area is therefore $G(s)$ at $s=0$:
Area $= G(0) = \frac{2\pi}{(0+1)^2 + 4\pi^2} = \frac{2\pi}{1+4\pi^2} \approx 0.155$

This sum can be elegantly solved using the Z-transform. The given expression is equivalent to the Z-transform of the sequence $n(\frac{1}{2})^n u(n)$, evaluated at the point $z=1$.

We will use the standard Z-transform pair for a ramp-multiplied exponential sequence, which states that the transform of $n a^n u(n)$ is $X(z) = \frac{az^{-1}}{(1-az^{-1})^2}$.

For our specific problem, the constant is $a = \frac{1}{2}$.

Substituting $a = \frac{1}{2}$ and $z=1$ into the general formula gives the value of the sum:
$\frac{\frac{1}{2}(1)^{-1}}{\left(1-\frac{1}{2}(1)^{-1}\right)^2} = \frac{1/2}{(1-1/2)^2} = \frac{1/2}{(1/2)^2} = \frac{1/2}{1/4} = 2$

The Thevenin voltage, $V_{Th}$, is the open-circuit voltage across terminals a-b. We can find this value by calculating the voltage at the main node, let's call it $V_a$, using nodal analysis.

By applying Kirchhoff's Current Law (KCL) at node 'a', we sum the currents leaving the node and set the total to zero:
$\frac{V_a - 12}{3} + \frac{V_a}{6} - 1 = 0$
The first term is the current through the 3Ω resistor, the second is through the 6Ω resistor, and the -1 accounts for the 1A source entering the node.

To solve for $V_a$, we can rearrange the equation:
$V_a \left(\frac{1}{3} + \frac{1}{6}\right) = 1 + \frac{12}{3} = 5$
Simplifying the fractions gives $V_a \left(\frac{1}{2}\right) = 5$.
Therefore, $V_a = 10$ V, which is our Thevenin voltage.

To find the voltage $V_X$, we need to solve the system of two equations that describe the circuit's behavior. The first equation, derived from applying Kirchhoff's Current Law, relates the two node voltages: $13V_{X} = 100 + 2V_{Y}$. The second equation gives the dependency between them: $V_{Y} = 0.25V_{X}$.

We can rearrange the dependency equation to express $V_X$ in terms of $V_Y$: $V_X = 4V_Y$. Now, we substitute this into the first equation to eliminate the $V_X$ variable:
$13(4V_Y) = 100 + 2V_Y$

This simplifies the equation to $52V_Y = 100 + 2V_Y$. By isolating $V_Y$, we find that $50V_Y = 100$, which gives $V_Y = 2$ V. Finally, we use this value to solve for $V_X$: $V_X = 4V_Y = 4(2) = 8$ V.

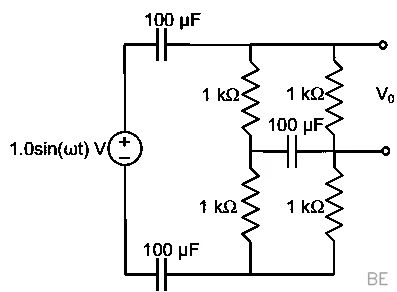

At very high frequencies, a capacitor's impedance, given by $Z_C = 1/(j\omega C)$, approaches zero. This allows us to treat all the capacitors in the circuit as ideal short circuits.

Under these conditions, the two series capacitors become wires, applying the full source voltage, $v_{\in}(t) = 1.0\sin(\omega t)$ V, across the resistor network. The network itself simplifies to two parallel voltage dividers. The output $V_0$ is measured across the top resistor of the right-hand divider.

Using the voltage divider formula for this branch:
$V_0 = v_{\in} \times \frac{1 \text{ k}\Omega}{1 \text{ k}\Omega + 1 \text{ k}\Omega} = \frac{1}{2} v_{\in}$

The peak output voltage is therefore half of the peak input voltage, which is $\frac{1}{2} \times 1.0 \text{ V} = 0.5 \text{ V}$.

The gate dielectric in a MOSFET must be an exceptionally pure and uniform insulating layer to ensure reliable device performance. Dry oxidation, which uses pure oxygen ($O_2$), is the preferred method for this critical step. While this process is significantly slower than wet oxidation, its slow growth rate allows for precise control over the thickness of the very thin oxide layer. This results in a denser, higher-quality $SiO_2$ film with a lower defect density at the crucial silicon-silicon dioxide interface, which is essential for a high-performance transistor.

The Early effect, or base-width modulation, describes how the effective base width changes with the collector-emitter voltage ($V_{CE}$). When the physical base width ($W_B$) is doubled, the depletion region's encroachment into the base becomes a much smaller fraction of the total width. This significantly reduces the impact of the Early effect. Consequently, the collector current ($I_C$) becomes less sensitive to variations in $V_{CE}$, resulting in a flatter slope on the $I_C$ vs. $V_{CE}$ output characteristic curves. The Early Voltage ($V_A$) is the magnitude of the voltage axis intercept of these extrapolated curves, so a flatter slope directly corresponds to a larger Early Voltage.

This circuit contains a PNP transistor. We begin by finding the base current ($I_B$). The emitter is at $V_E = 3 \mathrm{V}$. Given the specified emitter-to-base voltage drop $V_{EB} = 0.6 \mathrm{V}$, the voltage at the base is $V_B = V_E - V_{EB} = 2.4 \mathrm{V}$. This voltage drives a current through the base resistor to ground, so $I_B = \frac{V_B}{R_B} = \frac{2.4 \mathrm{V}}{60 \mathrm{k\Omega}} = 0.04 \mathrm{mA}$.

Next, we calculate the collector current using the current gain $\beta=50$: $I_C = \beta I_B = 50 \times 0.04 \mathrm{mA} = 2 \mathrm{mA}$. This current flows from the collector through the 500 Ω resistor, so the collector voltage is $V_C = I_C R_C = 2 \mathrm{mA} \times 500 \mathrm{\Omega} = 1 \mathrm{V}$.

Finally, the emitter-collector voltage ($V_{EC}$) is the potential difference between the emitter and collector: $V_{EC} = V_E - V_C = 3 \mathrm{V} - 1 \mathrm{V} = 2 \mathrm{V}$.

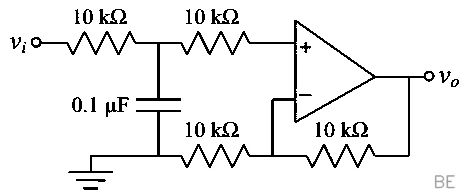

This circuit is a first-order active low-pass filter. Its behavior is defined by two distinct parts: an initial RC filter network and a subsequent non-inverting amplifier stage. The 3-dB cutoff frequency is determined entirely by the passive components in the filter section.

The formula for the cutoff frequency ($f_{3\mathrm{dB}}$) of a simple RC filter is:
$f_{3\mathrm{dB}} = \frac{1}{2\pi RC}$

Using the given values, $R = 10 \mathrm{k\Omega}$ and $C = 0.1 \mathrm{\mu F}$:
$f_{3\mathrm{dB}} = \frac{1}{2\pi (10 \times 10^3 \, \Omega)(0.1 \times 10^{-6} \, \mathrm{F})} \approx 159.15 \, \mathrm{Hz}$

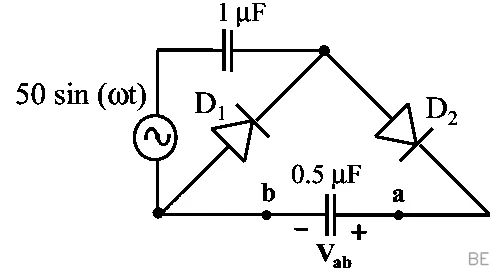

The circuits work as a voltage doubler. $\therefore V_{a b}=2 \times 50=100$

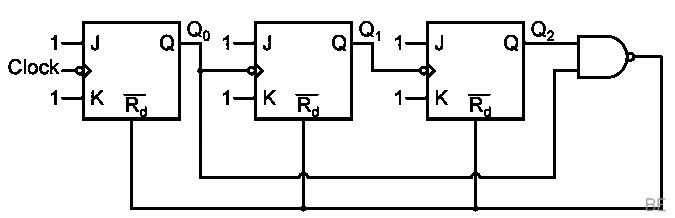

This circuit is an asynchronous ripple counter where each J-K flip-flop is in toggle mode ($J=K=1$). Since the normal output $Q$ of each flip-flop provides the negative-edge clock for the next stage, the counter counts upwards.

The reset logic consists of a NAND gate connected to the active-low reset inputs ($\bar{R_d}$). The reset signal is given by $\overline{Q_2 \cdot Q_0}$. This signal becomes low (active) only when both inputs $Q_2$ and $Q_0$ are high.

The counter state is represented by $(Q_2Q_1Q_0)$. It counts up from $000$. The first time the reset condition ($Q_2=1$ and $Q_0=1$) is met is at the state $101$ (decimal 5). As soon as the counter reaches this state, it is immediately and asynchronously reset to $000$. Thus, the counter has five stable states (0, 1, 2, 3, 4), defining it as a modulo-5 binary up counter.

Let's analyze the circuit's logic by considering the two main scenarios for the inputs.

First, consider the case where at least one input ($E_1, E_2,$ or $E_3$) is at logic '0', which is 0 V. The ideal diode connected to this low input will become forward-biased, acting like a closed switch. This creates a direct path from the output node $V_0$ to the 0 V input, forcing the output voltage $V_0$ to be 0 V (logic '0').

Next, consider the case where all three inputs are at logic '1', or 10 V. In this situation, there is no potential difference across any of the diodes to turn them on. They are effectively reverse-biased and act as open circuits. With the diodes off, no current flows through them or the resistor, so the output $V_0$ is pulled up to the supply voltage of 10 V (logic '1').

Since the output $V_0$ is high only when all inputs are high, this circuit performs the function of a 3-input AND gate.

The fundamental concept of multiplication, such as finding the product $B \times C$, is repeated addition. This program executes this by adding the value in register C to a running total, a total of $B$ times.

The accumulator (register A) is first initialized to zero (MVI A, 00H). The program then enters a loop where it adds the value of register C to the accumulator (ADD C). Register B acts as a loop counter, which is decremented after each addition (DCR B). The loop continues (JNZ LOOP) until the counter B reaches zero, leaving the final product in the accumulator.

Let's start by defining our terms. The impulse response, $h(t)$, is the output of a system when the input is a Dirac delta function. The unit step response, which we'll call $s(t)$, is the output when the input is a unit step function, $u(t)$.

The output of any LTI system is the convolution of the input with the impulse response. So, the step response is given by $s(t) = h(t) * u(t)$.

A key property of convolution is that convolving a function with the unit step is equivalent to integrating that function. This gives us the relationship:
$s(t) = \int_{-\infty }^{t} h(\tau) \, d\tau$

This equation shows that the unit step response is the time integral of the impulse response. To reverse this and solve for the impulse response $h(t)$, we apply the fundamental theorem of calculus by differentiating both sides with respect to $t$.

This yields the final relationship:
$h(t) = \frac{d}{dt} s(t)$

The filter's transfer function, $H(z)$, is the Z-transform of its impulse response, which for this FIR filter is $H(z) = \alpha_{0} + \alpha_{1}z^{-1} + \alpha_{2}z^{-2} + \alpha_{3}z^{-3}$.

A "null at zero frequency" means the filter's frequency response, $H(e^{j\omega})$, must be zero when the frequency $\omega=0$. This corresponds to evaluating the transfer function at the point $z = e^{j0} = 1$ on the unit circle.

Setting the transfer function to zero at this point gives the condition $H(1)=0$.

Substituting $z=1$ into the expression for $H(z)$ yields the requirement that the sum of the filter coefficients must be zero: $\alpha_{0} + \alpha_{1} + \alpha_{2} + \alpha_{3} = 0$.

Of the choices provided, only the condition where $\alpha_{1}=\alpha_{2}=0$ and $\alpha_{0}=-\alpha_{3}$ ensures this sum is zero, since $\alpha_{0} + 0 + 0 - \alpha_{0} = 0$.

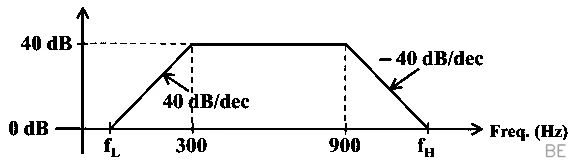

The slope of a Bode plot indicates the rate of change of gain with frequency. A slope of $+40$ dB/decade means the gain increases by $40$ dB for every factor of 10 increase in frequency.

To find $f_L$, we see the gain rises by $40$ dB (from $0$ to $40$ dB) as the frequency goes from $f_L$ to $300$ Hz. This corresponds to one decade, so the frequency ratio is 10.
$\frac{300}{f_L} = 10 \implies f_L = 30 \text{ Hz}$
Similarly, to find $f_H$, the gain drops by $40$ dB (from $40$ to $0$ dB) as frequency goes from $900$ Hz to $f_H$. This also represents one decade.
$\frac{f_H}{900} = 10 \implies f_H = 9000 \text{ Hz}$
Finally, we can calculate the difference:
$f_H - f_L = 9000 - 30 = 8970 \text{ Hz}$

To find the phase margin (PM), we first determine the gain crossover frequency, $\omega_{gc}$, where the system's magnitude equals one. We set $|G(j\omega)| = 1$:
$\left| \frac{10}{j\omega(j\omega+10)} \right| = \frac{10}{\omega\sqrt{\omega^{2+}100}} = 1$
Solving the resulting expression, $\omega^4 + 100\omega^2 - 100 = 0$, gives a gain crossover frequency of $\omega_{gc} \approx 0.99$ rad/s.

Next, we calculate the phase angle of the system at this frequency:
$\angle G(j\omega_{gc}) = -90^\circ - \tan^{-1}\left(\frac{\omega_{gc}}{10}\right) = -90^\circ - \tan^{-1}\left(\frac{0.99}{10}\right)$
Finally, the phase margin is $PM = 180^\circ + \angle G(j\omega_{gc})$, which gives:
$PM = 180^\circ - 90^\circ - \tan^{-1}(0.099) \approx 84.36^\circ$

To determine if the controller acts as a phase lead compensator, we can compare its transfer function to the standard time-constant form, $G(s) = C\frac{1+s\tau}{1+\alpha s\tau}$, where the key condition for phase lead is $\alpha < 1$.

First, let's rearrange the given transfer function, $G_{c}(s)=\frac{K(s+a)}{s+b}$, to match this standard form:
$G_{c}(s) = \frac{Ka(1+s/a)}{b(1+s/b)} = \left(\frac{Ka}{b}\right) \frac{1+s/a}{1+s/b}$
By comparing the terms, we can identify $\tau = 1/a$ and $\alpha\tau = 1/b$. Now, we solve for $\alpha$ by substituting the expression for $\tau$:
$\alpha\left(\frac{1}{a}\right) = \frac{1}{b} \implies \alpha = \frac{a}{b}$
The condition for a phase lead compensator is $\alpha < 1$. Therefore, we must have $a/b < 1$, which simplifies to $a < b$ since both $a$ and $b$ are positive.

Global System for Mobile Communications (GSM) employs Gaussian Minimum Shift Keying (GMSK) for transmissions, particularly from the mobile terminal to the base station. The primary reason for this choice is GMSK's constant envelope property, where the signal's amplitude does not fluctuate. This characteristic is crucial for battery-powered devices, as it enables the use of highly efficient, non-linear power amplifiers without introducing significant distortion. This conserves battery life while the Gaussian filtering also ensures the signal occupies a narrow bandwidth, reducing interference with adjacent channels.

The bandwidth of an angle-modulated signal is estimated by Carson's rule, $B \approx 2(\Delta f + f_m)$, where $f_m$ is the frequency of the message signal and $\Delta f$ is the peak frequency deviation.

For phase modulation, the instantaneous frequency deviation is proportional to the time derivative of the message signal, $m(t)$. With $m(t) = A_m \sin(2\pi f_m t)$, the instantaneous frequency deviation is $\frac{1}{2\pi}\frac{d}{dt}[m(t)] = A_m f_m \cos(2\pi f_m t)$.

The peak value of this frequency deviation is therefore $\Delta f = A_m f_m$.

Substituting this into Carson's rule gives the bandwidth: $B \approx 2(A_m f_m + f_m) = 2f_m(A_m + 1)$. As you can see from this final expression, the bandwidth $B$ is a function of both the message amplitude $A_m$ and the message frequency $f_m$.

Adding more elements to an antenna array increases its overall physical dimensions. This enlargement directly increases the antenna's effective area ($A_e$), which represents how well the antenna captures or transmits power in a specific direction. The directivity ($D$) of an antenna is fundamentally and proportionally related to its effective area. This relationship is described by the equation $D = \frac{4\pi A_e}{\lambda^2}$. As the formula shows, if the effective area ($A_e$) increases, the directivity ($D$) must also increase.

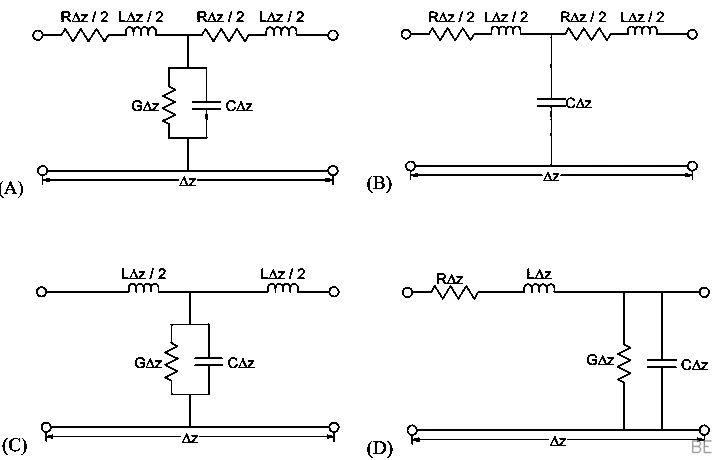

The lumped element model uses circuit components to represent the physical properties of a transmission line segment. The shunt conductance, $G$, specifically models the energy loss that occurs within the dielectric material separating the two conductors. This dielectric loss is quantified by a parameter called the loss tangent, $\tan \delta$.

The problem states that the Teflon dielectric is ideal, with a loss tangent of zero ($\tan \delta = 0$). The shunt conductance is directly related to the loss tangent by the formula $G = \omega C \tan \delta$. Consequently, a zero loss tangent means the shunt conductance $G$ must also be zero. This simplifies the general model by removing the shunt resistor ($G\Delta z$), leaving the components for conductor resistance ($R$), inductance ($L$), and capacitance ($C$).

The Newton-Raphson method finds the root of an equation by iteratively improving an initial guess. The formula for the first iteration is $x_1 = x_0 - \frac{f(x_0)}{f'(x_0)}$.

First, we need the derivative of the given function, $f(x) = x^3 - 5x^2 + 6x - 8$. The derivative is $f'(x) = 3x^2 - 10x + 6$.

Next, we evaluate both $f(x)$ and $f'(x)$ at the initial guess, $x_0 = 5$:
$f(5) = 5^3 - 5(5^2) + 6(5) - 8 = 22$
$f'(5) = 3(5^2) - 10(5) + 6 = 75 - 50 + 6 = 31$

Finally, we substitute these values into the Newton-Raphson formula to find the solution after one iteration:
$x_1 = 5 - \frac{22}{31} \approx 5 - 0.7097 = 4.2903$

This problem describes a sequence of independent Bernoulli trials, where we are waiting for the first "success". This is a classic example of a Geometric distribution.

Let X be the number of throws until a '3' is observed. The probability of success (rolling a '3') in a single trial is $p = \frac{1}{6}$.

The random variable X follows a Geometric distribution with parameter $p$.

The expected value, $E[X]$, for a Geometric distribution is given by the formula:
$E[X] = \frac{1}{p}$

Substituting the value of $p$, we get:
$E[X] = \frac{1}{1/6} = 6$
Therefore, the expected number of throws is 6.

First, we find the general solution to the homogeneous differential equation. The characteristic equation is $m^2 + 3m + 2 = 0$, which factors into $(m+1)(m+2)=0$. The roots are $m_1 = -1$ and $m_2 = -2$, so the general solution is $x(t) = C_1 e^{-t} + C_2 e^{-2t}$.

Next, we use the given conditions to find the constants $C_1$ and $C_2$. The condition $x(0) = 20$ gives us $C_1 + C_2 = 20$. The condition $x(1) = 10/e$ gives $C_1 e^{-1} + C_2 e^{-2} = 10e^{-1}$, which simplifies to $C_1 + C_2 e^{-1} = 10$.

Solving this system of two linear equations yields $C_1 = \frac{10e - 20}{e-1}$ and $C_2 = \frac{10e}{e-1}$.

Finally, we substitute these constants back into the solution and evaluate at $t=2$:
$x(2) = C_1 e^{-2} + C_2 e^{-4} = \left(\frac{10e - 20}{e-1}\right)e^{-2} + \left(\frac{10e}{e-1}\right)e^{-4} \approx 0.857$

To find the total flux, we calculate the surface integral over the closed cylinder by summing the contributions from its three distinct faces: the top, the bottom, and the curved side wall.

1. Top Cap ($z=5$): Here, the differential surface is $d\vec{s} = \rho\,d\rho\,d\phi\,\hat{a}_z$. The only component of $\vec{D} = 2\rho^2 \hat{a}_\rho + z\hat{a}_z$ that contributes is the $z$-component. The flux is $\int_0^{2\pi}\int_0^1 (z)|_{z=5} \,\rho\,d\rho\,d\phi = 5\pi$.

2. Bottom Cap ($z=0$): Since the $z$-component of $\vec{D}$ is $z$, it becomes zero on this surface. Therefore, the flux through the bottom is $0$.

3. Curved Side ($\rho=1$): The differential surface is $d\vec{s} = \rho\,d\phi\,dz\,\hat{a}_\rho$. The flux comes from the $\rho$-component of $\vec{D}$. The flux is $\int_0^5\int_0^{2\pi} (2\rho^2)|_{\rho=1} \,d\phi\,dz = 2(2\pi)(5) = 20\pi$.

The total flux is the sum of these parts: $5\pi + 0 + 20\pi = 25\pi \approx 78.54$.

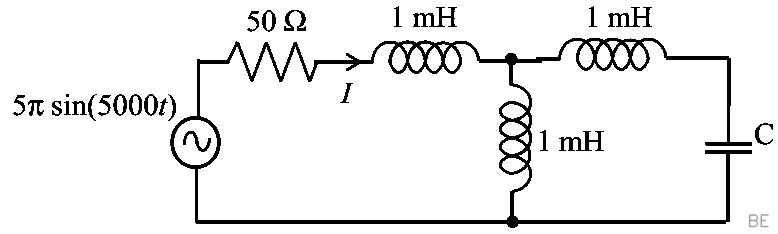

For the current $I$ to be zero, the total impedance of the circuit must be infinite. This requires the impedance of the network to the right of the resistor, which has a parallel structure, to be infinite. A parallel circuit's impedance becomes infinite at resonance, which occurs when the denominator of its equivalent impedance expression equals zero.

The angular frequency is $\omega = 5000$ rad/s. The impedance of each 1 mH inductor is $Z_L = j\omega L = j(5000)(10^{-3}) = j5 \Omega$. The two parallel branches have impedances $Z_1 = j5 \Omega$ and $Z_2 = j5 + \frac{1}{j\omega C}$.

The condition for infinite impedance is that the sum of the admittances is zero, or equivalently for this structure, the sum of the branch impedances in the denominator of the overall impedance expression is zero.
$j5\Omega + \left(j5\Omega + \frac{1}{j\omega C}\right) = 0$
$j10 = -\frac{1}{j\omega C} = \frac{j}{\omega C}$
Solving for C gives:
$C = \frac{1}{10\omega} = \frac{1}{10 \times 5000} = 20 \times 10^{-6} \text{ F} = 20 \mu\text{F}$.

To determine the ABCD parameters, we start by considering an open circuit at the output port, which sets the output current $I_2 = 0$. With the output open, the input current $I_1$ flows through the $(5+j4)\Omega$ impedance and the $2\Omega$ shunt impedance. The input voltage $V_1$ is the total voltage drop across this path: $V_1 = (5+j4+2)I_1 = (7+j4)I_1$. The output voltage $V_2$ is the voltage across the shunt element, so $V_2 = 2I_1$.

Now, we can find parameters A and C from their definitions under the open-circuit condition:
$A = \frac{V_1}{V_2} \bigg|_{I_2=0} = \frac{(7+j4)I_1}{2I_1} = 3.5+j2$
$C = \frac{I_1}{V_2} \bigg|_{I_2=0} = \frac{I_1}{2I_1} = 0.5$

These calculated values for A and C match the first column of the matrix in the correct option, allowing us to identify the answer without needing to find B and D.

To find the transfer function from the state-space model, we first identify the system matrices $A$, $B$, and $C$ from the given equations.

,

, and

The transfer function is calculated using the standard formula $H(s) = C(sI-A)^{-1}B$. We start by finding the inverse of $(sI-A)$:

Now, we substitute all the matrices into the transfer function formula and multiply them together:

Carrying out the multiplication gives a numerator of $3(3(s+4)+1) - 2(-(s-2)) = 9s+39+2s-4 = 11s+35$. Therefore, the complete transfer function is $\frac{11s+35}{(s-2)(s+4)}$.

The potential difference across the depletion region, also known as the built-in potential ($V_{bi}$), is the area under the electric field versus position graph. The profile shown is a triangle.

First, let's identify the triangle's dimensions from the graph, ensuring consistent units. The height is the peak electric field, $E_{max} = 10^4$ V/cm, which is $10^6$ V/m. The base is the total depletion width, $W$, spanning from $-0.1 \mu m$ to $1.0 \mu m$, so $W = 1.1 \mu m = 1.1 \times 10^{-6}$ m.

Now, we calculate the area:
$V_{bi} = \text{Area} = \frac{1}{2} \times \text{base} \times \text{height}$
$V_{bi} = \frac{1}{2} \times (1.1 \times 10^{-6} \text{ m}) \times (10^6 \text{ V/m}) = 0.55 \text{ V}$

The calculated potential difference is $0.55$ V, or $550$ mV. This contradicts statement C, which claims the potential difference is $700$ mV.

In the saturation region, an ideal MOS transistor's drain current ($I_D$) is independent of the drain-source voltage ($V_{DS}$). However, a real transistor exhibits channel length modulation, causing the current to increase slightly with $V_{DS}$. This effect is modeled by the equation $I_D = I_{D,sat}(1 + \lambda V_{DS})$.

We can determine the channel length modulation parameter, $\lambda$, by observing how the current changes with voltage. Using the given data points, we can approximate this relationship with finite differences.

Let's calculate the change in current ($\Delta I_D$) and the change in voltage ($\Delta V_{DS}$):
$\Delta I_D = 1.02 \text{ mA} - 1.0 \text{ mA} = 0.02 \text{ mA}$
$\Delta V_{DS} = 6 \text{ V} - 5 \text{ V} = 1 \text{ V}$

Now, we can rearrange the approximate relationship $\Delta I_D \approx I_{D1} \cdot \lambda \cdot \Delta V_{DS}$ to solve for $\lambda$. Using the initial current as our reference, we find:
$\lambda = \frac{\Delta I_D}{I_{D1} \cdot \Delta V_{DS}} = \frac{0.02 \text{ mA}}{1 \text{ mA} \times 1 \text{ V}} = 0.02 \text{ V}^{-1}$

First, we determine the collector current ($I_C$) using the standard BJT equation for the forward-active region. This current depends on the base-emitter voltage, not the current gain $\beta$.
$I_C = I_S e^{V_{BE}/V_T}$
The emitter current ($I_E$) is related to the collector current by $I_E = \frac{\beta+1}{\beta} I_C$. To find the maximum possible $I_E$, we must maximize the factor $\frac{\beta+1}{\beta}$, which can be written as $1 + \frac{1}{\beta}$. This expression is largest when $\beta$ is at its minimum value.

Given the manufacturing variation, the minimum $\beta$ is 50. Substituting this into the combined expression for $I_E$ gives the maximum value:
$I_{E,max} = \frac{50+1}{50} \times I_S e^{V_{BE}/V_T}$
$I_{E,max} = 1.02 \times (10^{-15} \text{ A}) \times e^{(700/25)} \approx 1475 \text{ } \mu\text{A}$

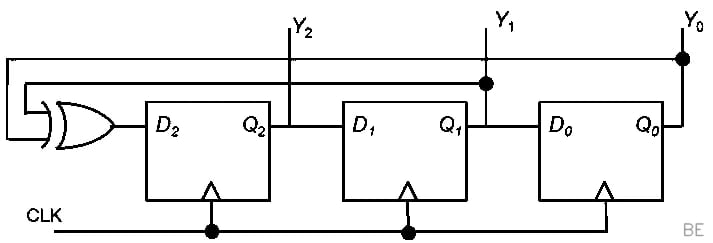

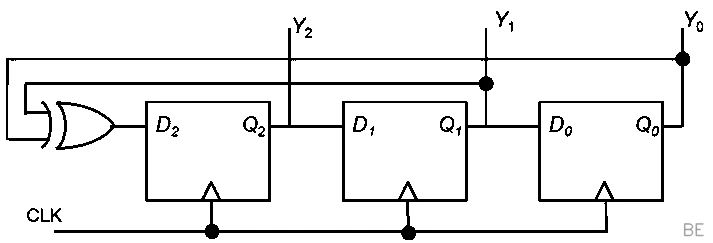

This circuit functions as a 3-bit synchronous shift register with feedback. The initial output value is given as $Y = Y_2Y_1Y_0 = 111$.

At each rising clock edge, the values shift to the right ($Y_2$ moves to $Y_1$, and $Y_1$ moves to $Y_0$), while a new value for $Y_2$ is loaded from the output of the XOR gate, which computes $Y_1 \oplus Y_0$.

Let's trace the state for three cycles:

1. Initial State: $Y = 111$. The next input for $Y_2$ is $1 \oplus 1 = 0$. After the 1st clock cycle, the state becomes $011$.
2. After 1 cycle: $Y = 011$. The next input for $Y_2$ is $1 \oplus 1 = 0$. After the 2nd clock cycle, the state becomes $001$.
3. After 2 cycles: $Y = 001$. The next input for $Y_2$ is $0 \oplus 1 = 1$. After the 3rd clock cycle, the final state is $100$.
