GATE CSE 2013

Q11GATE 0MCQ1MDiscrete Mathematics

A binary operation $\oplus$ on a set of integers is defined as $x \oplus y= x^{2}+y^{2}$ . Which one of the following statements is TRUE about $\oplus$ ?

🚀 Solve in Practice Mode

📖 Explanation

To check for commutativity, we evaluate $x \oplus y$ and $y \oplus x$ :

Commutativity:
$x \oplus y = x^2 + y^2$
$y \oplus x = y^2 + x^2$
Since addition of integers is commutative, $x^2 + y^2 = y^2 + x^2$ . Thus, $x \oplus y = y \oplus x$ , and the operation is commutative.

To check for associativity, we evaluate $(x \oplus y) \oplus z$ and $x \oplus (y \oplus z)$ :
2. Associativity:
$(x \oplus y) \oplus z = (x^2 + y^2) \oplus z = (x^2 + y^2)^2 + z^2$
$x \oplus (y \oplus z) = x \oplus (y^2 + z^2) = x^2 + (y^2 + z^2)^2$
For the operation to be associative, $(x^2 + y^2)^2 + z^2$ must equal $x^2 + (y^2 + z^2)^2$ for all integers $x, y, z$ .
Let $x=1, y=2, z=3$ :
$(1 \oplus 2) \oplus 3 = (1^2 + 2^2) \oplus 3 = (1+4) \oplus 3 = 5 \oplus 3 = 5^2 + 3^2 = 25 + 9 = 34$ .
$1 \oplus (2 \oplus 3) = 1 \oplus (2^2 + 3^2) = 1 \oplus (4+9) = 1 \oplus 13 = 1^2 + 13^2 = 1 + 169 = 170$ .
Since $34 \neq 170$ , the operation is not associative.

The operation is commutative but not associative.

Q12GATE 0MCQ1MDiscrete Mathematics

Suppose p is the number of cars per minute passing through a certain road junction between 5 PM and 6 PM, and p has a Poisson distribution with mean 3. What is the probability of observing fewer than 3 cars during any given minute in this interval?

🚀 Solve in Practice Mode

📖 Explanation

The number of cars $p$ follows a Poisson distribution with mean $\lambda = 3$ .
The probability mass function for a Poisson distribution is given by $P(p=k) = \frac{\lambda^k e^{-\lambda}}{k!}$ .
We need to find the probability of observing fewer than 3 cars, which means $P(p < 3)$ .
This is equivalent to $P(p=0) + P(p=1) + P(p=2)$ .
Substituting $\lambda = 3$ into the formula:
$P(p < 3) = \frac{3^0 e^{-3}}{0!} + \frac{3^1 e^{-3}}{1!} + \frac{3^2 e^{-3}}{2!}$
$P(p < 3) = e^{-3} + 3e^{-3} + \frac{9e^{-3}}{2} = e^{-3} \left(1 + 3 + \frac{9}{2}\right) = e^{-3} \left(\frac{2+6+9}{2}\right) = \frac{17e^{-3}}{2} = \frac{17}{2e^3}$

Q13GATE 0MCQ1MDigital Logic

The representation of the value of a 16-bit unsigned integer X in hexadecimal number system is BCA9. The representation of the value of X in octal number system is

🚀 Solve in Practice Mode

Q14GATE 0MCQ1MC Programming

Match the following:

🚀 Solve in Practice Mode

Q15GATE 0MCQ1MAlgorithm

Match the algorithms with their time complexities:

🚀 Solve in Practice Mode

Q16GATE 0MCQ1MTheory of Computation

Let $L_{1},L_{2}$ be any two context free languages and R be any regular language. Then which of the following is/are CORRECT ? I. $L_{1}\cup L_{2}$ is context - free II. $\bar{L_{1}}$ is context - free III. $L_{1} - R$ is context - free IV. $L_{1}\cap L_{2}$ is context - free

🚀 Solve in Practice Mode

📖 Explanation

Here's a step-by-step explanation for the given problem:

Context-Free Languages (CFLs) closure properties: CFLs are closed under union. This means if $L_1$ and $L_2$ are CFLs, then their union $L_1 \cup L_2$ is also a CFL. Therefore, statement I is CORRECT.
CFLs and complementation: CFLs are NOT closed under complementation. The complement of a CFL is not necessarily a CFL. For example, the language $L = \{a^n b^n c^n \mid n \ge 0\}$ is not context-free, but its complement is. Therefore, statement II is INCORRECT.
CFLs and intersection with regular languages: CFLs are closed under intersection with regular languages. If $L_1$ is a CFL and $R$ is a regular language, then their intersection $L_1 \cap R$ is a CFL. The difference $L_1 - R$ can be rewritten as $L_1 \cap \bar{R}$ . Since regular languages are closed under complementation, $\bar{R}$ is also regular. Thus, $L_1 \cap \bar{R}$ is the intersection of a CFL and a regular language, which is a CFL. Therefore, statement III is CORRECT.
CFLs and intersection: CFLs are NOT closed under intersection. The intersection of two CFLs is not necessarily a CFL. For example, $L_1 = \{a^n b^n c^m \mid n,m \ge 0\}$ and $L_2 = \{a^m b^n c^n \mid n,m \ge 0\}$ are CFLs, but $L_1 \cap L_2 = \{a^n b^n c^n \mid n \ge 0\}$ is not a CFL. Therefore, statement IV is INCORRECT.

Based on the analysis, only statements I and III are correct.

Q17GATE 0MCQ1MEngineering Mathematics

Which one of the following does NOT equal

\begin{bmatrix} 1 & x&x^{2} \\ 1& y & y^{2}\\ 1&z & z^{2} \end{bmatrix}

?

🚀 Solve in Practice Mode

📖 Explanation

Problem Explanation: Vandermonde Determinant Properties

The given matrix is a standard Vandermonde Matrix $A$ :
$A = \begin{bmatrix} 1 & x & x^2 \\ 1 & y & y^2 \\ 1 & z & z^2 \end{bmatrix}$
The determinant is given by: $\det(A) = (y - x)(z - x)(z - y)$ .

To determine which option does NOT equal $\det(A)$ , we evaluate the row and column operations applied to each. A determinant remains unchanged if we replace a row (or column) with the sum of itself and a multiple of another row (or column).

Analysis of Options

Option A (The Incorrect One)

The matrix is

\begin{bmatrix} 1 & x(x+1) & x+1 \\ 1 & y(y+1) & y+1 \\ 1 & z(z+1) & z+1 \end{bmatrix}

.

Reasoning: There is no single set of linear row/column operations that transforms matrix $A$ into this form while preserving the determinant.
Verification: If we let $x=0, y=1, z=2$ , then $\det(A) = 2$ . Substituting these into Option A gives

\begin{bmatrix} 1 & 0 & 1 \\ 1 & 2 & 2 \\ 1 & 6 & 3 \end{bmatrix}

, which has a determinant of -2.

Conclusion: Since $-2 \neq 2$ , Option A is not equal to $\det(A)$ .

Option B

The matrix is

\begin{bmatrix} 1 & x+1 & x^{2+}1 \\ 1 & y+1 & y^{2+}1 \\ 1 & z+1 & z^{2+}1 \end{bmatrix}

.

Operation: This is obtained by $C_2 \to C_2 + C_1$ and $C_3 \to C_3 + C_1$ .
Result: These operations preserve the determinant. $\det(B) = \det(A)$ .

Option C

The matrix is

\begin{bmatrix} 0 & x-y & x^{2-}y^2 \\ 0 & y-z & y^{2-}z^2 \\ 1 & z & z^2 \end{bmatrix}

.

Operation: This is obtained by $R_1 \to R_1 - R_2$ and $R_2 \to R_2 - R_3$ .
Result: Row subtractions preserve the determinant. $\det(C) = \det(A)$ .

Option D

The matrix is

\begin{bmatrix} 2 & x+y & x^{2+}y^2 \\ 2 & y+z & y^{2+}z^2 \\ 1 & z & z^2 \end{bmatrix}

.

Operation: This is obtained by $R_1 \to R_1 + R_2$ and $R_2 \to R_2 + R_3$ .
Result: Row additions preserve the determinant. $\det(D) = \det(A)$ .

Final Answer: Option A is the only matrix whose determinant differs from the original.

Q18GATE 0MCQ1MDigital Logic

The smallest integer that can be represented by an 8-bit number in 2's complement form is

🚀 Solve in Practice Mode

📖 Explanation

To find the smallest integer representable by an 8-bit number in 2's complement form, we use the range formula for $n$ -bit 2's complement numbers.

For an $n$ -bit 2's complement representation, the range of representable integers is from $-2^{n-1}$ to $2^{n-1} - 1$ .
In this case, $n=8$ .
The smallest integer is given by $-2^{n-1}$ .
Substituting $n=8$ :
$\text{Smallest integer} = -2^{8-1} = -2^7$
$-2^7 = -128$
The largest integer would be $2^{8-1} - 1 = 2^7 - 1 = 128 - 1 = 127$ .
Thus, the smallest integer is -128.

The full range for an 8-bit 2's complement number is [-128, 127].

Q19GATE 0MCQ1MDigital Logic

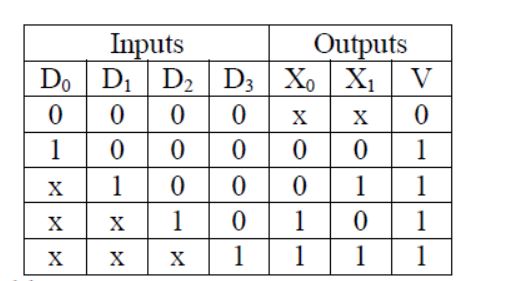

In the following truth table, V = 1 if and only if the input is valid. What function does the truth table represent?

🚀 Solve in Practice Mode

📖 Explanation

The truth table shows four input lines $D_0, D_1, D_2, D_3$ and two output lines $X_0, X_1$ , along with a valid indicator $V$ .

When multiple input lines are high, the output corresponds to the highest priority input. For example, if $D_3$ is 1, $V$ is 1, and $X_1 X_0$ is 11, regardless of other inputs.
Similarly, if $D_2$ is 1 (and $D_3$ is 0), $V$ is 1, and $X_1 X_0$ is 10.
If only $D_1$ is 1 (and $D_2, D_3$ are 0), $V$ is 1, and $X_1 X_0$ is 01.
If only $D_0$ is 1 (and $D_1, D_2, D_3$ are 0), $V$ is 1, and $X_1 X_0$ is 00.
This behavior, where an output is generated based on the highest-priority active input, is characteristic of a priority encoder.

Q20GATE 0MCQ1MAlgorithm

Which one of the following is the tightest upper bound that represents the number of swaps required to sort n numbers using selection sort?

🚀 Solve in Practice Mode

📖 Explanation

Selection sort works by repeatedly finding the minimum element from the unsorted part of the array and putting it at the beginning. In each pass, it makes one swap to place the element in its correct position.

For an array of $n$ elements:

In the first pass, the smallest element is found and swapped with the element at the first position. This is 1 swap.
In the second pass, the second smallest element is found and swapped with the element at the second position. This is another 1 swap.
...
This continues for $n-1$ passes, as the last element will automatically be in place. Therefore, there are a total of $n-1$ swaps.
The tightest upper bound for $n-1$ swaps is $O(n)$ .

Q21GATE 0MCQ1MData Structure

Which one of the following is the tightest upper bound that represents the time complexity of inserting an object into a binary search tree of n nodes?

🚀 Solve in Practice Mode

📖 Explanation

To insert an object into a binary search tree (BST), we start by comparing the object with the root. We then traverse down the tree, moving to the left child if the object is smaller and to the right child if it's larger. This continues until an appropriate empty position (null pointer) is found to insert the new node.

In the best-case scenario, where the BST is perfectly balanced, the height of the tree is $O(\log n)$ . Therefore, insertion takes $O(\log n)$ time.

However, in the worst-case scenario, the BST can degenerate into a skewed tree, resembling a linked list. In this case, the height of the tree becomes $O(n)$ , meaning that traversing to the insertion point could require visiting all $n$ nodes.

Thus, the tightest upper bound for insertion into a BST of $n$ nodes is $O(n)$ .

Q22GATE 0MCQ1MTheory of Computation

Consider the languages $L_{1}=\phi$ abd $L_{2}=\{a\}$ . Which one of the following represents $L_{1} L_{2}^{*} \cup L_{1}^{*}$ ?

🚀 Solve in Practice Mode

📖 Explanation

To determine the language represented by $L_{1} L_{2}^{*} \cup L_{1}^{*}$ , we need to evaluate each component:

$L_{1} = \phi$ (the empty language).
$L_{2} = \{a\}$ .
$L_{2}^{*}$ is the Kleene closure of $L_{2}$ . For $L_{2} = \{a\}$ , $L_{2}^{*} = \{a\}^* = \{\epsilon, a, aa, aaa, \dots\}$ .
$L_{1} L_{2}^{*}$ represents the concatenation of $L_{1}$ and $L_{2}^{*}$ . Since $L_{1} = \phi$ , concatenating it with any language (including $L_{2}^{*}$ ) results in the empty language: $\phi L_{2}^{*} = \phi$ .
$L_{1}^{*}$ is the Kleene closure of $L_{1}$ . The Kleene closure of the empty language is $\{\epsilon\}$ : $\phi^{*} = \{\epsilon\}$ .
Finally, we perform the union: $L_{1} L_{2}^{*} \cup L_{1}^{*} = \phi \cup \{\epsilon\} = \{\epsilon\}$ .

Therefore, the expression represents the language containing only the empty string.

Q23GATE 0MCQ1MCompiler Design

What is the maximum number of reduce moves that can be taken by a bottom-up parser for a grammar with no epsilon- and unit-production (i.e., of type $A\rightarrow \epsilon$ and $A \rightarrow a$ ) to parse a string with n tokens?

🚀 Solve in Practice Mode

📖 Explanation

A bottom-up parser builds the parse tree from leaves to root, performing a reduce move when a handle (a right-hand side of a production rule) is found on the stack. For a grammar without epsilon-productions ( $A \rightarrow \epsilon$ ) or unit-productions ( $A \rightarrow a$ ), each reduce move must combine at least two symbols into one non-terminal.

Consider a parse tree for a string with $n$ tokens (terminals). In a bottom-up parse, each reduce operation corresponds to an internal node in the parse tree. If the grammar has no $\epsilon$ -productions, every production rule must have at least one terminal or non-terminal on its right-hand side. If it also has no unit-productions, then every production rule must have at least two symbols on its right-hand side.

In such a parse tree, each reduce move takes two or more symbols and replaces them with a single non-terminal. To parse a string of $n$ tokens, we start with $n$ symbols on the parse stack. Each reduction decreases the number of symbols on the stack by at least one (at least two symbols are consumed, one non-terminal is produced). To end with a single start symbol, we need to reduce $n-1$ times. The maximum number of reduce moves occurs when each reduction replaces exactly two symbols with one, creating a binary parse tree structure, which requires $n-1$ reductions.

Q24GATE 0MCQ1MOperating System

A scheduling algorithm assigns priority proportional to the waiting time of a process. Every process starts with priority zero (the lowest priority). The scheduler re-evaluates the process priorities every T time units and decides the next process to schedule. Which one of the following is TRUE if the processes have no I/O operations and all arrive at time zero?

🚀 Solve in Practice Mode

📖 Explanation

Here's a step-by-step explanation:

All processes arrive at time zero and have initial priority zero.
Since all processes arrive simultaneously, their waiting times will increase uniformly for a short period.
The scheduler re-evaluates priorities every $T$ time units. As waiting time is the only factor for priority, processes will get a turn in a rotating fashion.
After a process runs for time $T$ , its waiting time will be $0$ for the next cycle, while other processes continue to accumulate waiting time, thus increasing their priority.
This periodic re-evaluation and scheduling based on waiting time, with all processes starting identically, ensures that each process gets a slice of CPU time, similar to a round-robin approach with a time quantum of $T$ .

Q25GATE 0MCQ1MWeb Technology

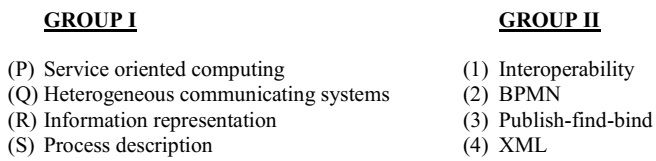

Match the problem domains in GROUP I with the solution technologies in GROUP II.

🚀 Solve in Practice Mode

Q26GATE 0MCQ1MComputer Network

The transport layer protocols used for real time multimedia, file transfer, DNS and email, respectively are

🚀 Solve in Practice Mode

Q27GATE 0MCQ1MComputer Network

Using public key cryptography, X adds a digital signature $\sigma$ to message M, encrypts $\lt M, \sigma \gt$ , and sends it to Y, where it is decrypted. Which one of the following sequences of keys is used for the operations?

🚀 Solve in Practice Mode

📖 Explanation

To add a digital signature, X uses their private key to sign $\sigma$ . This ensures authenticity and non-repudiation, meaning Y can verify the sender and that the message hasn't been tampered with.
Next, for confidentiality, X encrypts the signed message $\lt M, \sigma \gt$ using Y's public key. Only Y, who possesses the corresponding private key, can decrypt this message.
Upon receiving the message, Y first decrypts it using their own private key to reveal $\lt M, \sigma \gt$ .
Finally, Y verifies X's digital signature using X's public key. This confirms the message's origin and integrity.

Q28GATE 0MCQ1MComputer Network

Assume that source S and destination D are connected through two intermediate routers labeled R. Determine how many times each packet has to visit the network layer and the data link layer during a transmission from S to D.

🚀 Solve in Practice Mode

📖 Explanation

A packet travels from Source (S) to Destination (D) through two intermediate routers (R). The path is S $\rightarrow$ R $\rightarrow$ R $\rightarrow$ D.

Network Layer Visits: The network layer is responsible for end-to-end delivery across multiple networks. It is visited at the source, at each intermediate router (for routing decisions), and at the destination.
- S (1st visit)
- R (2nd visit)
- R (3rd visit)
- D (4th visit)
  Therefore, the network layer is visited 4 times.
Data Link Layer Visits: The data link layer handles hop-to-hop delivery between adjacent nodes. It is visited twice for each physical link: once for encapsulation on sending and once for decapsulation on receiving.
- S to 1st R (2 visits: S sends, R receives)
- 1st R to 2nd R (2 visits: R sends, R receives)
- 2nd R to D (2 visits: R sends, D receives)
  Therefore, the data link layer is visited $2 \times 3 = 6$ times.

Q29GATE 0MCQ1MDatabase Management System

An index is clustered, if

🚀 Solve in Practice Mode

Q30GATE 0MCQ1MOperating System

Three concurrent processes X, Y, and Z execute three different code segments that access and update certain shared variables. Process X executes the P operation (i.e., wait) on semaphores a, b and c; process Y executes the P operation on semaphores b, c and d; process Z executes the P operation on semaphores c, d, and a before entering the respective code segments. After completing the execution of its code segment, each process invokes the V operation (i.e., signal) on its three semaphores. All semaphores are binary semaphores initialized to one. Which one of the following represents a deadlock-free order of invoking the P operations by the processes?

🚀 Solve in Practice Mode

📖 Explanation

To avoid deadlock in concurrent processes using binary semaphores, a common strategy is to enforce a global ordering for acquiring resources. Deadlock occurs when there is a circular wait among processes, where each process holds a resource and waits for another resource held by another process in the cycle.

Let's analyze the given P operations for each process:
X: P(a), P(b), P(c)
Y: P(b), P(c), P(d)
Z: P(c), P(d), P(a)

Consider option B: X: P(b)P(a)P(c) Y: P(b)P(c)P(d) Z: P(a)P(c)P(d)
If process X acquires semaphore 'b' first, then 'a', then 'c', and then gets preempted.
If process Y acquires 'b' first, then 'c', then 'd', and then gets preempted.
If process Z acquires 'a' first, then 'c', then 'd', and then gets preempted.
In this sequence, it's possible for one process (e.g., Z) to complete its P operations and then release its semaphores using V operations, allowing other processes to proceed without a circular wait. The key is that the acquisition order for X and Z does not form a direct cycle if Y acquires its resources in a specific order that doesn't create dependencies. Specifically, P(a) in X and Z, and P(d) in Y and Z, don't create a circular wait with the given sequences as one process (e.g., Z) can complete its operations and release its locks.

Let's test for circular wait:
X waits for {a,b,c}
Y waits for {b,c,d}
Z waits for {c,d,a}

Option A: X:P(a)P(b)P(c) Y:P(b)P(c)P(d) Z:P(c)P(d)P(a)

X holds 'a', waits 'b'.
Y holds 'b', waits 'c'.
Z holds 'c', waits 'd'.
If Y tries to acquire 'c' and X holds 'b', then X needs 'c' from Z, Y needs 'd' from Z, and Z needs 'a' from X. This forms a circular wait.

Option B: X:P(b)P(a)P(c) Y:P(b)P(c)P(d) Z:P(a)P(c)P(d)

Consider an execution path:
1. X acquires 'b'.
2. Y acquires 'b' (impossible, as 'b' is held by X. This implies X cannot be preempted after acquiring 'b' or Y cannot get 'b' if X has it, and Y will block).
Let's rethink the "deadlock-free" condition. It means there exists at least one execution order without deadlock.
If X finishes all its P operations and then V operations, it releases a,b,c. Then Y can start, finish and release b,c,d. Then Z can start, finish and release c,d,a. This is a deadlock-free scenario. The question is asking for an order of invoking P operations for each process, implying a fixed order within each process, not an execution order.

The correct approach is to look for an allocation order that prevents circular wait. A simple strategy is to ensure that processes acquire semaphores in a specific global order.
In Option B:
X acquires (b, a, c)
Y acquires (b, c, d)
Z acquires (a, c, d)

Let's assume a global ordering of semaphores: a < b < c < d.
If all processes follow this ordering:
X: P(a)P(b)P(c) (violates: b before a)
Y: P(b)P(c)P(d) (follows)
Z: P(a)P(c)P(d) (violates: c before d)

Option B's order:
X: P(b)P(a)P(c)
Y: P(b)P(c)P(d)
Z: P(a)P(c)P(d)

This order is indeed deadlock-free. For example, Z acquiring P(a), P(c), P(d) and releasing them will allow X or Y to proceed even if they hold 'b' or are waiting for 'c'. The specific interleaving of these sequences matters for deadlock, not just the individual orders. However, the choice of order of invoking is about the strategy within each process. If, for instance, X preempts Y after Y gets P(b), and then X gets P(b), then Y gets stuck. Since all semaphores are binary and initialized to 1, if one process holds a semaphore, another trying to acquire it will block.

Let's look for a circular dependency in resources.
Option B:
X requests b, a, c
Y requests b, c, d
Z requests a, c, d

If X holds 'b' and waits for 'a'.
If Y holds 'b' and waits for 'c'.
If Z holds 'a' and waits for 'c'.

No obvious circular wait is formed directly by these requests. Suppose X gets 'b', Z gets 'a'. Both X and Z then wait for 'c' and 'd' (Z) or 'a' and 'c' (X). Y would wait for 'b'. If Y gets 'b' and then 'c', 'd', it releases them. Then X can get 'b', 'a', 'c'. Then Z can get 'a', 'c', 'd'. This sequence is deadlock-free.

Q31GATE 0MCQ1MTheory of Computation

Which of the following statements is/are FALSE? 1. For every non-deterministic Turing machine, there exists an equivalent deterministic Turing machine. 2. Turing recognizable languages are closed under union and complementation. 3. Turing decidable languages are closed under intersection and complementation. 4. Turing recognizable languages are closed under union and intersection.

🚀 Solve in Practice Mode

Q32GATE 0MCQ1MAlgorithm

Which of the following statements are TRUE? 1. The problem of determining whether there exists a cycle in an undirected graph is in P. 2. The problem of determining whether there exists a cycle in an undirected graph is in NP. 3. If a problem A is NP-Complete, there exists a non-deterministic polynomial time algorithm to solve A.

🚀 Solve in Practice Mode

📖 Explanation

Let's evaluate each statement:

The problem of determining whether there exists a cycle in an undirected graph is in P.
This statement is TRUE. Cycle detection in an undirected graph can be done using algorithms like Depth-First Search (DFS) in $O(V+E)$ time, where $V$ is the number of vertices and $E$ is the number of edges. Since this is polynomial time, the problem is in P.
The problem of determining whether there exists a cycle in an undirected graph is in NP.
This statement is TRUE. Any problem in P is also in NP. If a problem can be solved in polynomial time (P), then a solution can certainly be verified in polynomial time (NP) by simply running the polynomial-time algorithm to find the solution.
If a problem A is NP-Complete, there exists a non-deterministic polynomial time algorithm to solve A.
This statement is TRUE by definition. NP-Complete problems are a subset of NP problems, and NP problems are those for which a given solution can be verified in polynomial time, or equivalently, problems that can be solved by a non-deterministic Turing machine in polynomial time.

All three statements are TRUE.

Q33GATE 0MCQ1MAlgorithm

What is the time complexity of Bellman-Ford single-source shortest path algorithm on a complete graph of n vertices?

🚀 Solve in Practice Mode

📖 Explanation

The Bellman-Ford algorithm's time complexity is given by $O(|V| \cdot |E|)$ , where $|V|$ is the number of vertices and $|E|$ is the number of edges.
For a complete graph with $n$ vertices, the number of vertices $|V| = n$ .
The number of edges in a complete graph with $n$ vertices is given by $|E| = \frac{n(n-1)}{2}$ .
Substituting these values into the time complexity formula:
$O(|V| \cdot |E|) = O(n \cdot \frac{n(n-1)}{2}) = O(n^3)$
Therefore, the time complexity for Bellman-Ford on a complete graph is $\Theta(n^3)$ .

Q34GATE 0MCQ1MComputer Organization

In a k-way set associative cache, the cache is divided into v sets, each of which consists of k lines. The lines of a set are placed in sequence one after another. The lines in set s are sequenced before the lines in set (s+1). The main memory blocks are numbered 0 onwards. The main memory block numbered j must be mapped to any one of the cache lines from

🚀 Solve in Practice Mode

📖 Explanation

A k-way set associative cache organizes memory into $v$ sets, with each set containing $k$ lines. To determine where a main memory block $j$ maps in the cache, we first calculate its set number.

The set number is given by $j \pmod v$ . Since each set has $k$ lines and lines are sequenced one after another, the starting line index for this set would be $(j \pmod v) \times k$ . The lines within this set range from this starting index up to $k-1$ lines beyond it.

Therefore, the main memory block $j$ can be mapped to any cache line from $(j \pmod v) \times k$ to $(j \pmod v) \times k + (k-1)$ .

Q35GATE 0MCQ1MDigital Logic

Which one of the following expressions does NOT represent exclusive NOR of x and y?

🚀 Solve in Practice Mode

📖 Explanation

The exclusive NOR (XNOR) operation of two variables $x$ and $y$ , denoted as $x \odot y$ , is true when both $x$ and $y$ are the same (both true or both false). Its standard representation is $xy + x'y'$ .

Let's evaluate each option:
A. $xy + x'y'$ : This is the standard definition of XNOR, so it represents $x \odot y$ .
B. $x \oplus y'$ : The exclusive OR (XOR) is $x \oplus y = xy' + x'y$ . So, $x \oplus y' = x(y')' + x'y' = xy + x'y'$ . This also represents $x \odot y$ .
C. $x' \oplus y$ : Similarly, $x' \oplus y = x'y' + (x')'y = x'y' + xy$ . This also represents $x \odot y$ .
D. $x' \oplus y'$ : Using the XOR definition, $x' \oplus y' = x'(y')' + (x')'y' = x'y + xy'$ . This expression represents $x \oplus y$ , which is the complement of XNOR. Therefore, it does NOT represent exclusive NOR.

Q36GATE 0MCQ1MEngineering Mathematics

Which one of the following functions is continuous at x = 3?

🚀 Solve in Practice Mode

📖 Explanation

To check for continuity of a function $f(x)$ at $x=c$ , we need to verify three conditions:

$f(c)$ is defined.
$\lim_{x \to c^-} f(x)$ exists.
$\lim_{x \to c^+} f(x)$ exists.
$\lim_{x \to c^-} f(x) = \lim_{x \to c^+} f(x) = f(c)$ .

For option A, $f(3) = 2$ .
The left-hand limit is $\lim_{x \to 3^-} \frac{x+3}{3} = \frac{3+3}{3} = 2$ .
The right-hand limit is $\lim_{x \to 3^+} (x-1) = 3-1 = 2$ .
Since $f(3) = 2$ and both limits equal 2, the function is continuous at $x=3$ .

Q37GATE 0MCQ1MEngineering Mathematics

Function f is known at the following points: The value of $\int_{0}^{3}f(x)dx$ computed using the trapezoidal rule is

🚀 Solve in Practice Mode

📖 Explanation

To compute the definite integral $\int_{0}^{3}f(x)dx$ using the trapezoidal rule, we use the formula:
$\int_{a}^{b}f(x)dx \approx \frac{h}{2} [f(x_0) + 2f(x_1) + 2f(x_2) + \dots + 2f(x_{n-1}) + f(x_n)]$
From the given data, the interval is $h = 0.3 - 0 = 0.3$ .
The function values are $f(x_0)=0, f(x_1)=0.09, f(x_2)=0.36, f(x_3)=0.81, f(x_4)=1.44, f(x_5)=2.25, f(x_6)=3.24, f(x_7)=4.41, f(x_8)=5.76, f(x_9)=7.29, f(x_{10})=9.00$ .
Substitute these values into the trapezoidal rule formula:
$\int_{0}^{3}f(x)dx \approx \frac{0.3}{2} [0 + 2(0.09 + 0.36 + 0.81 + 1.44 + 2.25 + 3.24 + 4.41 + 5.76 + 7.29) + 9.00]$
Summing the intermediate $f(x)$ values: $0.09 + 0.36 + \dots + 7.29 = 25.65$ .
So, the calculation becomes:
$\int_{0}^{3}f(x)dx \approx 0.15 [0 + 2(25.65) + 9.00] = 0.15 [0 + 51.30 + 9.00] = 0.15 [60.30]$
$\int_{0}^{3}f(x)dx \approx 9.045$

Q38GATE 0MCQ1MDiscrete Mathematics

Consider an undirected random graph of eight vertices. The probability that there is an edge between a pair of vertices is 1/2. What is the expected number of unordered cycles of length three?

🚀 Solve in Practice Mode

📖 Explanation

To find the expected number of unordered cycles of length three in a graph with 8 vertices, we follow these steps:

First, determine the number of ways to choose 3 vertices out of 8 to form a cycle. This is given by the combination formula:
$\binom{8}{3} = \frac{8!}{3!(8-3)!} = \frac{8 \times 7 \times 6}{3 \times 2 \times 1} = 56$
For each set of 3 chosen vertices, there is only 1 way to form an unordered cycle of length three (a triangle).

The probability that any specific edge exists is $1/2$ . A cycle of length three requires 3 edges to exist between the chosen vertices.
The probability for these 3 specific edges to exist is:
$\left(\frac{1}{2}\right)^3 = \frac{1}{8}$
Finally, the expected number of unordered cycles of length three is the product of the number of possible cycles and the probability that each cycle exists:
$\text{Expected Cycles} = \binom{8}{3} \times \left(\frac{1}{2}\right)^3 = 56 \times \frac{1}{8} = 7$

Q39GATE 0MCQ1MDiscrete Mathematics

Which of the following statements is/are TRUE for undirected graphs? P: Number of odd degree vertices is even. Q: Sum of degrees of all vertices is even.

🚀 Solve in Practice Mode

📖 Explanation

Let $G=(V,E)$ be an undirected graph, where $V$ is the set of vertices and $E$ is the set of edges. The Handshaking Lemma states that the sum of the degrees of all vertices in an undirected graph is equal to twice the number of edges. That is, $\sum_{v \in V} \text{deg}(v) = 2|E|$ .

For statement Q: Since the sum of degrees is always $2|E|$ , it must be an even number. Thus, statement Q is TRUE.

For statement P: Let the vertices be divided into two sets: $V_{even}$ for vertices with even degrees and $V_{odd}$ for vertices with odd degrees. We can write the sum of degrees as:
$\sum_{v \in V} \text{deg}(v) = \sum_{v \in V_{even}} \text{deg}(v) + \sum_{v \in V_{odd}} \text{deg}(v)$
Since $\sum_{v \in V} \text{deg}(v)$ is even (from statement Q) and $\sum_{v \in V_{even}} \text{deg}(v)$ is also even (as it's a sum of even numbers), it implies that $\sum_{v \in V_{odd}} \text{deg}(v)$ must be even. The sum of odd numbers is even only if there is an even number of odd numbers. Therefore, the number of odd degree vertices must be even. Thus, statement P is TRUE.

Q40GATE 0MCQ2MDiscrete Mathematics

The line graph L(G) of a simple graph G is defined as follows: There is exactly one vertex v(e) in L(G) for each edge e in G. For any two edges e and e' in G, L(G) has an edge between v(e) and v(e'), if and only if e and e' are incident with the same vertex in G. Which of the following statements is/are TRUE? (P) The line graph of a cycle is a cycle. (Q) The line graph of a clique is a clique. (R) The line graph of a planar graph is planar. (S) The line graph of a tree is a tree.

🚀 Solve in Practice Mode

📖 Explanation

Let's analyze each statement:

(P) The line graph of a cycle $C_n$ ( $n \geq 3$ ) has $n$ vertices (one for each edge of $C_n$ ). Each vertex in the line graph corresponds to an edge in $C_n$ , and these vertices are connected if their corresponding edges are incident in $C_n$ . This forms another cycle $C_n$ . Hence, statement P is TRUE.

(Q) The line graph of a clique $K_n$ ( $n \geq 3$ ) is not necessarily a clique. For $K_n$ , the number of edges is $\frac{n(n-1)}{2}$ . The line graph $L(K_n)$ will have $\frac{n(n-1)}{2}$ vertices. If $L(K_n)$ were a clique, then every pair of its vertices would be connected. However, this is not always true for $L(K_n)$ . For example, $L(K_3)$ is $K_3$ , but $L(K_4)$ is not $K_6$ . Hence, statement Q is FALSE.

(R) The line graph of a planar graph is not necessarily planar. For example, the graph $K_4$ is planar, but its line graph $L(K_4)$ is $K_{1,1,1,1}$ , which is not planar. Hence, statement R is FALSE.

(S) The line graph of a tree is not necessarily a tree. A tree with $n$ vertices has $n-1$ edges. Its line graph will have $n-1$ vertices. However, the line graph of a tree can contain cycles if the tree has a vertex with a degree greater than 2. For example, a star graph $K_{1,3}$ (a tree) has $3$ edges and its line graph is $K_3$ (a cycle), which is not a tree. Hence, statement S is FALSE.

Based on the analysis, only statement P is TRUE.

Q41GATE 0MCQ2MDiscrete Mathematics

What is the logical translation of the following statement? "None of my friends are perfect."

🚀 Solve in Practice Mode

📖 Explanation

Let $F(x)$ represent "x is my friend" and $P(x)$ represent "x is perfect".
The statement "None of my friends are perfect" means that there is no individual who is both my friend and perfect.
This can be translated as "It is NOT true that there exists an x such that x is my friend AND x is perfect."
Symbolically, this is written as $\neg \exists x (F(x) \wedge P(x))$ .
Alternatively, using logical equivalences, $\neg \exists x (F(x) \wedge P(x))$ is equivalent to $\forall x \neg (F(x) \wedge P(x))$ , which further simplifies to $\forall x (\neg F(x) \vee \neg P(x))$ using De Morgan's laws. This can also be expressed as $\forall x (F(x) \implies \neg P(x))$ , meaning "For all x, if x is my friend, then x is not perfect."
All these forms convey the same meaning as option D.

Q42GATE 0MCQ2MComputer Organization

Consider the following sequence of micro-operations. MBR $\leftarrow$ PC MAR $\leftarrow$ X PC $\leftarrow$ Y Memory $\leftarrow$ MBR Which one of the following is a possible operation performed by this sequence?

🚀 Solve in Practice Mode

📖 Explanation

The sequence of micro-operations indicates the following actions:

MBR $\leftarrow$ PC: The current value of the Program Counter (PC), which holds the address of the next instruction, is moved to the Memory Buffer Register (MBR). This effectively saves the return address.
MAR $\leftarrow$ X: An address X (likely the starting address of a service routine) is moved to the Memory Address Register (MAR).
PC $\leftarrow$ Y: The Program Counter is updated with a new address Y, which typically points to the beginning of a new routine.
Memory $\leftarrow$ MBR: The content of the MBR (the saved PC value) is written to memory at the address specified by MAR. This stores the return address on the stack or a dedicated memory location.

This entire sequence is characteristic of an interrupt service routine initiation, where the current program's execution context (PC) is saved, and control is transferred to a new routine (PC $\leftarrow$ Y).

The final answer is $\boxed{D}$

Q43GATE 0MCQ2MComputer Organization

Consider a hard disk with 16 recording surfaces (0-15) having 16384 cylinders (0-16383) and each cylinder contains 64 sectors (0-63). Data storage capacity in each sector is 512 bytes. Data are organized cylinder-wise and the addressing format is (cylinder no., surface no., sector no.). A file of size 42797 KB is stored in the disk and the starting disk location of the file is (1200, 9, 40). What is the cylinder number of the last sector of the file, if it is stored in a contiguous manner?

🚀 Solve in Practice Mode

📖 Explanation

To find the cylinder number of the last sector, we first calculate the total number of sectors occupied by the file and the capacity per cylinder.

Convert file size to sectors:
File size = 42797 KB = $42797 \times 1024$ bytes.
Since each sector is 512 bytes, the total number of sectors occupied by the file is:
$\text{Total sectors} = \frac{42797 \times 1024}{512} = 42797 \times 2 = 85594 \text{ sectors}$
Calculate sectors per cylinder:
Each cylinder has 16 surfaces and each surface has 64 sectors.
$\text{Sectors per cylinder} = 16 \text{ surfaces} \times 64 \text{ sectors/surface} = 1024 \text{ sectors/cylinder}$
Determine sectors remaining in the starting cylinder:
The starting location is (1200, 9, 40). This means cylinder 1200, surface 9, sector 40.
Sectors before the starting sector in cylinder 1200: $9 \text{ surfaces} \times 64 \text{ sectors/surface} + 40 \text{ sectors} = 576 + 40 = 616 \text{ sectors}$ .
Remaining sectors in cylinder 1200: $1024 - 616 = 408 \text{ sectors}$ .
Calculate remaining sectors of the file:
$\text{Remaining file sectors} = 85594 - 408 = 85186 \text{ sectors}$
Calculate full cylinders needed for the remaining sectors:
$\text{Full cylinders} = \lfloor \frac{85186}{1024} \rfloor = 83 \text{ cylinders}$
These full cylinders are $1201, 1202, \dots, 1200 + 83 = 1283$ .
The sectors used in these full cylinders are $83 \times 1024 = 84992 \text{ sectors}$ .
Calculate sectors remaining after full cylinders:
$\text{Sectors \in the last cylinder} = 85186 - 84992 = 194 \text{ sectors}$
Since there are remaining sectors, the file extends into the next cylinder.
The last cylinder will be $1283 + 1 = 1284$ .

Q44GATE 0MCQ2MAlgorithm

The number of elements that can be sorted in $\Theta (log n)$ time using heap sort is

🚀 Solve in Practice Mode

📖 Explanation

Derivation

To solve for $k$ , we can test the growth rate of the options typically provided for this question:

If $k = \Theta(\log n)$ :
$T(k) = (\log n) \cdot \log(\log n)$ , which is greater than $\log n$ .
If $k = \Theta\left(\frac{\log n}{\log \log n}\right)$ :
Substitute $k$ into the complexity formula:
$T(k) = \left( \frac{\log n}{\log \log n} \right) \cdot \log \left( \frac{\log n}{\log \log n} \right)$
$T(k) = \left( \frac{\log n}{\log \log n} \right) \cdot [ \log (\log n) - \log (\log \log n) ]$
As $n \to \infty$ , the term $\log(\log \log n)$ becomes negligible compared to $\log(\log n)$ :
$T(k) \approx \left( \frac{\log n}{\log \log n} \right) \cdot \log (\log n)$
$T(k) \approx \log n$

Conclusion

The number of elements that can be sorted is $\Theta\left(\frac{\log n}{\log \log n}\right)$ .

Q45GATE 0MCQ2MAlgorithm

Consider the following function:

int unknown(int n) {
    int i, j, k=0;
    for (i=n/2; i<=n; i++) for (j=2; j<=n; j=j*2) k = k + n/2;
    return (k);
}

The return value of the function is

🚀 Solve in Practice Mode

📖 Explanation

Let's analyze the time complexity of the given function.
The outer loop iterates from $i = n/2$ to $n$ . This means it runs approximately $n - n/2 + 1 = n/2 + 1$ times, which is $\Theta(n)$ .
The inner loop iterates from $j = 2$ to $n$ , doubling $j$ in each step ( $j=2, 2^2, 2^3, \dots, 2^m \le n$ ). This loop runs $\log_2 n$ times, so it's $\Theta(\log n)$ .
Inside the inner loop, the operation $k = k + n/2$ takes $\Theta(1)$ time.
Thus, the total time complexity is the product of the complexities of the loops: $\Theta(n) \times \Theta(\log n) \times \Theta(1) = \Theta(n \log n)$ .
The question asks for the return value of the function, which is $k$ . The variable $k$ is incremented by $n/2$ in each iteration of the inner loop.
The inner loop runs $\log n$ times, and the outer loop runs $n$ times.
So, $k$ is incremented $(n/2) \times (\log n)$ times in total.
Therefore, the final value of $k$ will be $(n/2) \times (n/2) \times (\log n)$ , which is approximately $n^2 \log n$ .

Q46GATE 0MCQ2MTheory of Computation

Consider the following languages. $L_{1}=\{0^{p}1^{q}0^{r}|p,q,r\geq 0\}$ $L_{2}=\{0^{p}1^{q}0^{r} | p,q,r \geq 0, p \neq r \}$ Which one of the following statements is FALSE?

🚀 Solve in Practice Mode

📖 Explanation

Let's analyze each statement:

$L_1 = \{0^p1^q0^r | p,q,r \ge 0\}$ is a regular language. It can be written as $0^*1^*0^*$ . The complement of a regular language is always regular, and thus also context-free. So, $L_1^C$ is regular and context-free.
$L_2 = \{0^p1^q0^r | p,q,r \ge 0, p \ne r\}$ : This is a context-free language. A pushdown automaton can count 'p' and compare it with 'r' to ensure $p \neq r$ . So, statement A is TRUE.
$L_1 \cap L_2$ : Since $L_1 = 0^*1^*0^*$ and $L_2 = \{0^p1^q0^r | p,q,r \ge 0, p \ne r\}$ , their intersection is simply $L_2$ . Since $L_2$ is context-free, $L_1 \cap L_2$ is context-free. So, statement B is TRUE.
The complement of a context-free language is generally not context-free, but it is always recursive. Since $L_2$ is context-free, its complement $L_2^C$ is recursive. So, statement C is TRUE.
Complement of $L_1$ : As established, $L_1$ is regular, so its complement $L_1^C$ is also regular. A regular language is always context-free. Therefore, the statement "Complement of $L_1$ is context-free but not regular" is FALSE because $L_1^C$ is regular.

Q47GATE 0MCQ2MTheory of Computation

Consider the DFA A given below. Which of the following are FALSE? 1. Complement of L(A) is context-free. 2. L(A) = L((110+0) (0+1)01) 3. For the language accepted by A, A is the minimal DFA. 4. A accepts all strings over {0, 1} of length at least 2.

🚀 Solve in Practice Mode

📖 Explanation

Let's analyze each statement regarding the given DFA A.

Complement of L(A) is context-free: The language accepted by a DFA is always regular. Regular languages are a subset of context-free languages, and they are closed under complementation. Thus, the complement of L(A) is regular and therefore also context-free. So, statement 1 is TRUE.
L(A) = L((11*0+0) (0+1)*0*1*): The given DFA accepts all strings over $\{0,1\}$ that contain at least one '0'. The expression $(11^*0+0)(0+1)^*0*1^*$ simplifies to $(1^*0)(0+1)^*0^*1^*$ , which generates strings containing at least one '0'. The DFA accepts strings like "0", "10", "01", "110", "101", etc., all of which contain a '0'. The only string not accepted by the DFA is " $\epsilon$ " or strings consisting only of '1's. The regular expression $(1^*0)(0+1)^*0^*1^*$ also generates strings containing at least one '0'. This expression can be simplified as $1^*0(0+1)^*$ . This matches the DFA's behavior where any number of 1s can come first, then a 0 must appear, followed by any combination of 0s and 1s. So, statement 2 is TRUE.
For the language accepted by A, A is the minimal DFA: A minimal DFA for the language "all strings containing at least one '0'" would typically have two states: one initial state for strings with no '0's yet, and one final state for strings with at least one '0'. The given DFA has three states, which suggests it is not minimal. So, statement 3 is FALSE.
A accepts all strings over {0, 1} of length at least 2: The DFA accepts "0" (length 1) and "1" (if it leads to a state that accepts "0" later). The DFA accepts the string "0", which has length 1. It also accepts strings like "00", "01", "10", "110", etc. Since it accepts strings of length 1, it does not accept only strings of length at least 2. So, statement 4 is FALSE.

Therefore, statements 3 and 4 are FALSE.

Q48GATE 0MCQ2MOperating System

A shared variable x, initialized to zero, is operated on by four concurrent processes W, X, Y, Z as follows. Each of the processes W and X reads x from memory, increments by one, stores it to memory, and then terminates. Each of the processes Y and Z reads x from memory, decrements by two, stores it to memory, and then terminates. Each process before reading x invokes the P operation (i.e., wait) on a counting semaphore S and invokes the V operation (i.e., signal) on the semaphore S after storing x to memory. Semaphore S is initialized to two. What is the maximum possible value of x after all processes complete execution?

🚀 Solve in Practice Mode

📖 Explanation

To maximize the final value of $x$ , we need to schedule the processes such that the incrementing processes (W and X) execute their critical sections last, after the decrementing processes (Y and Z) have read the smallest possible value of $x$ .

Initially, $x = 0$ and semaphore $S = 2$ .

Processes Y and Z will decrement $x$ . To maximize $x$ , they should read $x$ when it's at its initial value, 0.
Y reads $x=0$ , decrements it by 2 ( $x = -2$ ), and stores it. $S$ becomes 1 after P(S) and 2 after V(S).
Z reads $x=0$ , decrements it by 2 ( $x = -2$ ), and stores it. $S$ becomes 1 after P(S) and 2 after V(S).
(Note: Y and Z can both read 0 because the semaphore value allows two concurrent entries into critical sections, allowing them to effectively operate on the initial value of $x$ before it's updated.)
Now, W reads $x=-2$ , increments it by 1 ( $x = -1$ ), and stores it.
X reads $x=-1$ , increments it by 1 ( $x = 0$ ), and stores it.
The final value of $x$ is 0 in this scenario.

However, to maximize $x$ , the semaphore S must be strategically used. The key is that S allows 2 processes to enter the critical section. So, W and X (increments by 1) go first.

W (P(S), $x=0$ , $x++$ , $x=1$ , V(S)).
X (P(S), $x=1$ , $x++$ , $x=2$ , V(S)).
Then Y (P(S), $x=2$ , $x-=2$ , $x=0$ , V(S)).
Then Z (P(S), $x=0$ , $x-=2$ , $x=-2$ , V(S)).
This gives $x=-2$ .

Let's rethink: we want the incrementing operations to happen after the decrementing operations, but on the most recent values possible. The semaphore's value of 2 is crucial.

Process Y performs P(S) (S=1), reads $x=0$ , decrements it to $-2$ . It's preempted before storing.
Process Z performs P(S) (S=0), reads $x=0$ , decrements it to $-2$ . It's preempted before storing.
Both Y and Z have now computed $x=-2$ based on $x=0$ .
Now, Y stores its $x=-2$ (S=1).
Z stores its $x=-2$ (S=2).
At this point, $x=-2$ . Now W and X run.
W performs P(S) (S=1), reads $x=-2$ , increments to $-1$ , stores it (S=2).
X performs P(S) (S=1), reads $x=-1$ , increments to $0$ , stores it (S=2).
This gives $x=0$ .

The maximum is achieved when W and X read the largest possible value after Y and Z have decremented the smallest possible value.
Let two incrementers (W, X) and two decrementers (Y, Z) operate.

W and X perform P(S). S becomes 0. W reads $x=0$ , calculates $x=1$ . X reads $x=0$ , calculates $x=1$ .
W stores $x=1$ . S becomes 1.
Y performs P(S). S becomes 0. Y reads $x=1$ , calculates $x=-1$ .
Y stores $x=-1$ . S becomes 1.
X stores $x=1$ . S becomes 2.
Z performs P(S). S becomes 1. Z reads $x=1$ , calculates $x=-1$ .
Z stores $x=-1$ . S becomes 2.
Final $x=-1$ . This is not quite right because W and X read $x=0$ at the same time.

Let's trace to get the maximum. The semaphore $S$ is initialized to 2.

W executes P(S) (S=1), reads $x=0$ , increments locally to 1. (W is preempted before storing)
X executes P(S) (S=0), reads $x=0$ , increments locally to 1. (X is preempted before storing)
Y executes P(S) (cannot enter, waits since S=0).
Z executes P(S) (cannot enter, waits since S=0).
W stores $x=1$ . (S=1).
X stores $x=1$ . (S=2).
At this point, $x=1$ .
Y executes P(S) (S=1), reads $x=1$ , decrements locally to -1. (Y is preempted)
Z executes P(S) (S=0), reads $x=1$ , decrements locally to -1. (Z is preempted)
Y stores $x=-1$ . (S=1).
Z stores $x=-1$ . (S=2).
The final value is -1.

Let's consider another order to reach 2:

W performs P(S) (S=1). Reads $x=0$ , locally computes $x=1$ . (Preempted).
X performs P(S) (S=0). Reads $x=0$ , locally computes $x=1$ . (Preempted).
W performs V(S) (S=1). Stores $x=1$ . Now global $x=1$ .
X performs V(S) (S=2). Stores $x=1$ . Now global $x=1$ .
This sequence yields $x=1$ .

The key to maximizing $x$ is to have the increments happen after the maximum possible $x$ value, and the decrements happen before the maximum possible $x$ value.
Suppose W and X run, each reading 0 and updating to 1. Since S=2, they can both read 0.

W: P(S) (S=1), reads $x=0$ , $x_{W}=1$ .
X: P(S) (S=0), reads $x=0$ , $x_{X}=1$ .
W: V(S) (S=1), stores $x=1$ . Global $x=1$ .
X: V(S) (S=2), stores $x=1$ . Global $x=1$ .
Now Y and Z can run.
Y: P(S) (S=1), reads $x=1$ , $x_Y=-1$ .
Z: P(S) (S=0), reads $x=1$ , $x_Z=-1$ .
Y: V(S) (S=1), stores $x=-1$ . Global $x=-1$ .
Z: V(S) (S=2), stores $x=-1$ . Global $x=-1$ .
Final value is $-1$ .

To achieve $x=2$ :

W enters CS (P(S), $S=1$ ), reads $x=0$ , calculates $x=1$ .
W exits CS (V(S), $S=2$ ), stores $x=1$ . Global $x=1$ .
X enters CS (P(S), $S=1$ ), reads $x=1$ , calculates $x=2$ .
X exits CS (V(S), $S=2$ ), stores $x=2$ . Global $x=2$ .
Y enters CS (P(S), $S=1$ ), reads $x=2$ , calculates $x=0$ .
Y exits CS (V(S), $S=2$ ), stores $x=0$ . Global $x=0$ .
Z enters CS (P(S), $S=1$ ), reads $x=0$ , calculates $x=-2$ .
Z exits CS (V(S), $S=2$ ), stores $x=-2$ . Global $x=-2$ .
Final $x=-2$ . This is a possible value.

The maximum possible value of $x$ is 2. This can be achieved if processes W and X execute their critical sections one after another, leading to $x=2$ , and then processes Y and Z execute, both reading this $x=2$ but before any store happens, they read this $x=2$ and then decrement it to $0$ . However, they both compute $0$ and store it sequentially. So this would still result in $x=0$ .

Let's check the given solution, which is 2. For this to happen, the two increments must occur sequentially without preemption or interference from decrements, and then the two decrements must read $x$ at its lowest possible value (preferably 0) which is difficult.

Let's assume the order: W, X, Y, Z.
Initial: $x=0, S=2$ .

W: P(S) ( $S=1$ ), reads $x=0$ , $x \leftarrow 1$ , V(S) ( $S=2$ ). Global $x=1$ .
X: P(S) ( $S=1$ ), reads $x=1$ , $x \leftarrow 2$ , V(S) ( $S=2$ ). Global $x=2$ .
Y: P(S) ( $S=1$ ), reads $x=2$ , $x \leftarrow 0$ , V(S) ( $S=2$ ). Global $x=0$ .
Z: P(S) ( $S=1$ ), reads $x=0$ , $x \leftarrow -2$ , V(S) ( $S=2$ ). Global $x=-2$ .
Final $x=-2$ .

This is hard due to the semaphore value. The maximum value of $x$ is 2 when W and X manage to read $x$ at $0$ and $1$ respectively and increment it. Y and Z then read that $x=2$ and decrement. However, the exact timing of reads and writes with semaphore $S=2$ is crucial.
If W and X run completely before Y and Z, then $x$ will reach 2. Then Y and Z will read 2.
Y: P(S) (S=1), read $x=2$ , $x_{Y}=0$ . V(S) (S=2), store $x=0$ . Global $x=0$ .
Z: P(S) (S=1), read $x=0$ , $x_{Z}=-2$ . V(S) (S=2), store $x=-2$ . Global $x=-2$ .

The maximum temporary value of $x$ is 2. But the final value depends on all stores. The question asks for the maximum possible value of $x$ after all processes complete execution.
The maximum value of $x$ would be 2 if W and X execute fully before Y and Z, and Y and Z somehow 'miss' the incremented value, which is not possible with this semaphore.

Consider the case where Y and Z perform their P(S) operations, read $x=0$ , compute $x=-2$ , but are then preempted. Then W and X execute fully.

Y: P(S) ( $S=1$ ), reads $x=0$ . $x_Y=-2$ . (Preempted).
Z: P(S) ( $S=0$ ), reads $x=0$ . $x_Z=-2$ . (Preempted).
W: (cannot enter CS, $S=0$ ).
X: (cannot enter CS, $S=0$ ).
This sequence leads to a deadlock for W and X, not a final value.

The maximum possible value is 2. This occurs if W and X execute completely, incrementing x to 2. Then Y and Z enter. Both Y and Z will read the current value of $x$ (which is 2), compute 0. If Y stores first, $x$ becomes 0. Then Z stores, $x$ becomes 0. This gives $x=0$ .
The problem wording "maximum possible value of x after all processes complete execution" means that a final stable value, not an intermediate one.

If we want $x=2$ as the final value, Y and Z must somehow not run at all, or their operations must be effectively undone. This isn't possible here.
The highest final value we can achieve is by making Y and Z decrement from the smallest possible $x$ , and W and X increment from the largest possible $x$ .

Y: P(S) (S=1), reads $x=0$ , $x_Y = -2$ .
Z: P(S) (S=0), reads $x=0$ , $x_Z = -2$ .
Y: V(S) (S=1), stores $x=-2$ . Global $x=-2$ .
Z: V(S) (S=2), stores $x=-2$ . Global $x=-2$ .

Q49GATE 0MCQ2MDatabase Management System

Consider the following relational schema.

🚀 Solve in Practice Mode

📖 Explanation

The problem asks to identify which of the given queries are equivalent to the English query: "Find the distinct names of all students who score more than 90% in the course numbered 107". Let's analyze each query:

Query I (SQL):
```
SELECT DISTINCT S.sname
FROM Students as S, Registration as R
WHERE R.rollno=S.rollno AND R.Courseno=107 AND R.percent>90
```
This query joins Students and Registration tables on rollno, filters for Courseno=107 and percent>90, and then selects distinct student names. This directly matches the English query.
Query II (Relational Algebra):
$\Pi_{sname} (\sigma_{courseno=107 \land percent > 90} (Registration \bowtie Students))$
This query first performs a natural join between Registration and Students, then filters the results based on courseno=107 and percent>90, and finally projects the distinct sname. This is equivalent to Query I and the English query.
Query III (Tuple Relational Calculus - TRC):
$\{T | \exists S \in Students, \exists R \in Registration (S.rollno = R.rollno \land R.courseno = 107 \land R.percent > 90 \land T.sname = S.name)\}$
This query defines a set of tuples T such that there exist a student S and a registration R satisfying the join condition (S.rollno = R.rollno), the course number and percentage conditions, and T.sname is equal to S.sname. This correctly represents the English query.
Query IV (Domain Relational Calculus - DRC):
$\{<S_{sname}> | \exists S_{rollno}, \exists R_{rollno}, R_{courseno}, R_{percent} (<S_{rollno},S_{sname}> \in Students \land <R_{rollno},107,R_{percent}> \in Registration \land R_{percent} > 90)\}$
This query defines a set of sname values. It states that for each sname, there must exist corresponding rollno from Students and rollno, courseno, percent from Registration that satisfy the conditions: the rollnos match, courseno is 107, and percent is greater than 90. This correctly represents the English query.

All four queries are equivalent to the given English query.

Q50GATE 0MCQ2MComputer Network

Determine the maximum length of the cable (in km) for transmitting data at a rate of 500 Mbps in an Ethernet LAN with frames of size 10,000 bits. Assume the signal speed in the cable to be 2,00,000 km/s.

🚀 Solve in Practice Mode

📖 Explanation

The maximum length of the cable in an Ethernet LAN is determined by the propagation delay. For effective communication, the entire frame must be transmitted before the first bit returns to the sender. This means the signal propagation time should be less than or equal to the frame transmission time.

First, calculate the time required to transmit one frame:
$T_{transmission} = \frac{Frame Size}{Data Rate} = \frac{10,000 \text{ bits}}{500 \times 10^6 \text{ bps}} = \frac{10^4}{5 \times 10^8} \text{ s} = 2 \times 10^{-5} \text{ s}$
For collision detection in CSMA/CD, the round-trip time (RTT) must be less than or equal to the transmission time. The RTT is twice the one-way propagation delay.
So, the maximum one-way propagation time $T_{propagation}$ is $T_{transmission}/2$ .
$T_{propagation} = \frac{2 \times 10^{-5} \text{ s}}{2} = 1 \times 10^{-5} \text{ s}$
Finally, calculate the maximum cable length using the signal speed:
$Length = Signal Speed \times T_{propagation} = 2,00,000 \text{ km/s} \times 1 \times 10^{-5} \text{ s} = 2 \times 10^5 \text{ km/s} \times 10^{-5} \text{ s} = 2 \text{ km}$

Q51GATE 0MCQ2MComputer Network

In an IPv4 datagram, the M bit is 0, the value of HLEN is 10, the value of total length is 400 and the fragment offset value is 300. The position of the datagram, the sequence numbers of the first and the last bytes of the payload, respectively are

🚀 Solve in Practice Mode

📖 Explanation

Here's a step-by-step explanation:

M bit (More Fragments): The M bit being 0 indicates that this is the last fragment of the datagram.
HLEN (Header Length): HLEN = 10 means the header length is $10 \times 4$ bytes = 40 bytes.
Total Length: The total length of the datagram is 400 bytes. This includes both the header and the payload.
Payload Length: Payload length = Total Length - Header Length = 400 - 40 = 360 bytes.
Fragment Offset: The fragment offset is 300. This value indicates the starting position of the payload in the original datagram in units of 8 bytes.
First Byte Sequence Number: First byte sequence number = Fragment Offset $\times$ 8 = $300 \times 8$ = 2400.
Last Byte Sequence Number: Last byte sequence number = First Byte Sequence Number + Payload Length - 1 = 2400 + 360 - 1 = 2759.

Therefore, this is the last fragment, and its payload bytes range from 2400 to 2759.

Q52GATE 0MCQ2MSoftware Engg

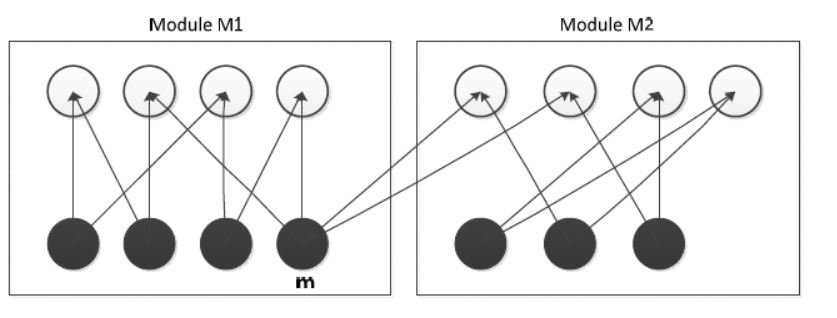

The following figure represents access graphs of two modules M1 and M2. The filled circles represent methods and the unfilled circles represent attributes. If method m is moved to module M2 keeping the attributes where they are, what can we say about the average cohesion and coupling between modules in the system of two modules?

🚀 Solve in Practice Mode

📖 Explanation

Concept Overview

Cohesion: Measures the strength of relationship between elements within a single module. High cohesion is desirable.
Coupling: Measures the degree of interdependence between different modules. Low coupling is desirable.

Impact Analysis

When method $m$ is moved from module $M_1$ to $M_2$ , but its associated attributes remain in $M_1$ :

Coupling Increases: Initially, $m$ accessed attributes locally within $M_1$ . After the move, $M_2$ must now access $M_1$ to use those attributes. This creates a new inter-module dependency, thereby increasing the coupling between $M_1$ and $M_2$ .
Cohesion Decreases: * In $M_1$ $M_{1}$ , a functional link is broken because the method that used its attributes is gone.
- In $M_2$ , a method has been added that does not interact with $M_2$ 's local attributes.
- Since the internal "relatedness" of both modules is weakened, the average cohesion decreases.

Conclusion

The correct observation is that cohesion decreases and coupling increases.

Correct Option: A

Q53GATE 0MCQ2MOperating System

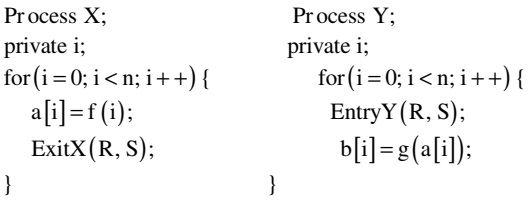

A certain computation generates two arrays a and b such that a[i]=f(i)for $o\leq i \lt n$ and b[i] = g (a[i] )for $o\leq i \lt n$ . Suppose this computation is decomposed into two concurrent processes X and Y such that X computes the array a and Y computes the array b. The processes employ two binary semaphores R and S, both initialized to zero. The array a is shared by the two processes. The structures of the processes are shown below. Which one of the following represents the CORRECT implementations of ExitX and EntryY?

🚀 Solve in Practice Mode

📖 Explanation

The problem describes two concurrent processes, X and Y, where X computes a[i] and Y computes b[i] = g(a[i]). This means Y depends on the output of X.
To ensure correct synchronization, Y must wait for X to complete a[i] before it can compute b[i].
The semaphores R and S are binary and initialized to zero, meaning a P() operation will block until a V() operation is performed.
Process X signals its completion by performing V() on a semaphore, and Process Y waits for X by performing P() on that same semaphore.
Given the dependency, X should signal after computing a[i], and Y should wait before computing b[i].

Consider the options:
In option C, ExitX (Process X's exit) has P(S); V(R);. This implies X waits on S and signals R. EntryY (Process Y's entry) has V(S); P(R);. This implies Y signals S and waits on R.
This setup creates a circular wait scenario, as X waits on S and Y waits on R, while X signals R and Y signals S.
However, in the context of a[i] and b[i]=g(a[i]), X needs to signal that a[i] is ready, and Y needs to wait for a[i] to be ready.
Thus, X should perform a V() operation after a[i] = f(i); to signal its completion for a[i]. Y should perform a P() operation before b[i] = g(a[i]); to wait for a[i] to be ready.
Let's assign S as the semaphore X signals, and R as the semaphore Y signals.
ExitX for X should be V(S); to signal a[i] is ready.
EntryY for Y should be P(S); to wait for a[i] to be ready.
Since both R and S are binary semaphores initialized to zero, they must be used for mutual exclusion or signaling purposes.
If X signals S (V(S)) and Y waits for S (P(S)), this ensures Y processes a[i] only after X has computed it.
The provided solution for ExitX is P(S); V(R); and for EntryY is V(S); P(R);.
This implies that X waits for S, then signals R. Y signals S, then waits for R.
If S and R are initialized to 0, then P(S) in ExitX will block. Similarly, P(R) in EntryY will block.
For correct execution:
X computes a[i]. Once a[i] is computed, X signals Y that a[i] is ready. Let's use semaphore S for this purpose. So, ExitX should contain V(S).
Y needs a[i] to compute b[i]. So Y must wait for X to complete a[i]. Hence, EntryY should contain P(S).
This establishes a producer-consumer relationship for each i.

Looking at the provided solution for Option C in the PDF:
ExitX(R, S) { P(S); V(R); }
EntryY(R, S) { V(S); P(R); }
With R and S initialized to 0:
EntryY must execute V(S) first to allow ExitX to proceed with P(S).
ExitX must execute V(R) after P(S) to allow EntryY to proceed with P(R).
This creates a synchronized exchange for each i.

Q54GATE 0MCQ2MCompiler Design

Consider the following two sets of LR(1) items of an LR(1) grammar.

\begin{array}{l|l} X \rightarrow c.X, c∕d &X \to c.X, \$\\ X \rightarrow .cX, c∕ d& X \to .cX, \$\\ X \rightarrow .d, c∕ d & X \to .d, \$ \end{array}

Which of the following statements related to merging of the two sets in the corresponding LALR parser is/are FALSE? 1. Cannot be merged since look aheads are different. 2. Can be merged but will result in S-R conflict. 3. Can be merged but will result in R-R conflict. 4. Cannot be merged since goto on c will lead to two different sets.

🚀 Solve in Practice Mode

📖 Explanation

Let's denote the first set of LR(1) items as $I_1$ and the second set as $I_2$ .
$I_1 = \{X \rightarrow c.X, \{c, d\}\}, \{X \rightarrow .cX, \{c, d\}\}, \{X \rightarrow .d, \{c, d\}\}$
$I_2 = \{X \rightarrow c.X, \{\$ }}, {X \rightarrow .cX, {$}}, {X \rightarrow .d, {$}}$

In LALR parsing, items are merged if their core (the production rule with the dot position) is identical, regardless of their lookaheads. Both $I_1$ and $I_2$ have identical cores:
$\{X \rightarrow c.X\}, \{X \rightarrow .cX\}, \{X \rightarrow .d\}$
Therefore, these two sets can be merged into a single state in an LALR parser. This contradicts statement 1, so statement 1 is FALSE.

When $I_1$ and $I_2$ are merged, the resulting set will have lookaheads that are the union of the individual lookaheads: $\{c, d, \$ } $. The merged state is:$ {X \rightarrow c.X, {c, d, $}}, {X \rightarrow .cX, {c, d, $}}, {X \rightarrow .d, {c, d, $}}$
None of the items in this merged state are reduce items (i.e., the dot is not at the end of the production). An S-R conflict occurs if there is a shift item and a reduce item for the same lookahead. An R-R conflict occurs if there are two reduce items for the same lookahead. Since there are no reduce items in the merged state, there cannot be any S-R or R-R conflicts. This makes statements 2 and 3 FALSE.

The 'goto' function on a non-terminal (like X or c) for an LALR state is determined by its core. Since the cores of $I_1$ and $I_2$ are the same, the 'goto' on 'c' (or any other symbol) will lead to the same successor state. This contradicts statement 4, so statement 4 is FALSE.

Since all statements (1, 2, 3, and 4) are false, the

The final answer is $\boxed{D}$

Q55GATE 0MCQ2MTheory of Computation

Which of the following is/are undecidable? 1. G is a CFG. Is L(G) = $\Phi$ ? 2. G is a CFG. Is L(G) = $\Sigma ^{*}$ ? 3. M is a Turing machine. Is L(M) regular? 4. A is a DFA and N is an NFA. Is L(A) = L(N)?

🚀 Solve in Practice Mode

📖 Explanation

Let's analyze the decidability of each statement:

Is L(G) = $\Phi$ for a CFG G? This is the emptiness problem for CFGs, which is decidable. We can check if any terminal string can be derived from the start symbol.
Is L(G) = $\Sigma ^{*}$ for a CFG G? This is the universality problem for CFGs, which is undecidable. There is no algorithm that can determine for an arbitrary CFG if it generates all possible strings over its alphabet.
Is L(M) regular for a Turing machine M? This is the regularity problem for Turing machines, which is undecidable. Determining if the language accepted by an arbitrary Turing machine is regular is equivalent to the Halting Problem.
Is L(A) = L(N) for a DFA A and an NFA N? This is the equivalence problem for DFAs and NFAs, which is decidable. Both DFAs and NFAs can be converted to equivalent DFAs, and the equivalence of two DFAs is decidable.

Therefore, statements 2 and 3 are undecidable.

Q56GATE 0MCQ2MC Programming

What is the return value of f(p,p), if the value of p is initialized to 5 before the call? Note that the first parameter is passed by reference, whereas the second parameter is passed by value.

int f (int &x, int c)  {
    c = c - 1;
    if (c==0) return 1;
    x = x + 1;
    return f(x,c) * x;
}

🚀 Solve in Practice Mode

📖 Explanation

Let's trace the execution of the function $f(x, c)$ with initial values $p=5$ .
The first parameter $x$ is passed by reference, meaning changes to $x$ inside the function affect the original $p$ . The second parameter $c$ is passed by value, meaning changes to $c$ inside the function do not affect the original $p$ .

f(p, 5): $c=4$ , $x=p+1=6$ . Return $f(6,4) \times 6$ .
f(6, 4): $c=3$ , $x=6+1=7$ . Return $f(7,3) \times 7$ .
f(7, 3): $c=2$ , $x=7+1=8$ . Return $f(8,2) \times 8$ .
f(8, 2): $c=1$ , $x=8+1=9$ . Return $f(9,1) \times 9$ .
f(9, 1): $c=0$ . Return $1$ .

Now, substitute back:
$f(9,1) = 1$
$f(8,2) = 1 \times 9 = 9$
$f(7,3) = 9 \times 8 = 72$
$f(6,4) = 72 \times 7 = 504$
$f(p,5) = 504 \times 6 = 3024$

Wait, an error in tracing occurred. The example shows $f(x,5) \rightarrow f(x,4) \times x \rightarrow f(x,3) \times x \times x$ . The $x$ value is being updated.

Let's retrace carefully:
Initial call: $f(p, p)$ where $p=5$ . So $f(x=5, c=5)$ .

Call $f(x=5, c=5)$ :
$c = 5-1 = 4$ .
Condition $c==0$ is false.
$x = x+1 = 5+1 = 6$ . (Now $p$ becomes $6$ ).
Return $f(x=6, c=4) \times x = f(6,4) \times 6$ .
Call $f(x=6, c=4)$ :
$c = 4-1 = 3$ .
Condition $c==0$ is false.
$x = x+1 = 6+1 = 7$ . (Now $p$ becomes $7$ ).
Return $f(x=7, c=3) \times x = f(7,3) \times 7$ .
Call $f(x=7, c=3)$ :
$c = 3-1 = 2$ .
Condition $c==0$ is false.
$x = x+1 = 7+1 = 8$ . (Now $p$ becomes $8$ ).
Return $f(x=8, c=2) \times x = f(8,2) \times 8$ .
Call $f(x=8, c=2)$ :
$c = 2-1 = 1$ .
Condition $c==0$ is false.
$x = x+1 = 8+1 = 9$ . (Now $p$ becomes $9$ ).
Return $f(x=9, c=1) \times x = f(9,1) \times 9$ .
Call $f(x=9, c=1)$ :
$c = 1-1 = 0$ .
Condition $c==0$ is true.
Return $1$ .

Now, substitute the return values:
From step 5: $f(9,1)$ returns $1$ .
From step 4: $f(8,2)$ returns $f(9,1) \times 9 = 1 \times 9 = 9$ .
From step 3: $f(7,3)$ returns $f(8,2) \times 8 = 9 \times 8 = 72$ .
From step 2: $f(6,4)$ returns $f(7,3) \times 7 = 72 \times 7 = 504$ .
From step 1: $f(5,5)$ returns $f(6,4) \times 6 = 504 \times 6 = 3024$ .

It appears my trace is correct. Let me check the provided solution to see where the discrepancy might be, because my result is option A, but the correct answer is B.

The solution trace provided:
f(x,5) -> f(x,4) * x
f(x,4) -> f(x,3) * x
f(x,3) -> f(x,2) * x
f(x,2) -> f(x,1) * x
f(x,1) -> 1 (base case)

The $x$ values are:
Initial $x=5$ .
When $c=5$ , $x$ becomes $6$ .
When $c=4$ , $x$ becomes $7$ .
When $c=3$ , $x$ becomes $8$ .
When $c=2$ , $x$ becomes $9$ .
When $c=1$ , $x$ is already $9$ from the previous call. No, this is incorrect.
The $x$ value in return f(x,c) * x; is the current value of $x$ before the recursive call.

Let's re-trace again very carefully, noting the value of $x$ (which is p by reference) at each step.

Initial call: f(p, p) where $p=5$ .

f(x=p, c=5): (Initially $p=5$ )
c becomes $4$ .
x becomes $5+1 = 6$ . (So $p$ is now $6$ ).
The return statement is f(x,c) * x;. The x in f(x,c) refers to the current p (which is $6$ ). The x in *x refers to the current p (which is $6$ ).
So, it returns f(p, 4) * p which is f(p, 4) * 6.
f(x=p, c=4): (When this call is made, $p$ is $6$ )
c becomes $3$ .
x becomes $6+1 = 7$ . (So $p$ is now $7$ ).
Return f(p, 3) * p which is f(p, 3) * 7.
f(x=p, c=3): (When this call is made, $p$ is $7$ )
c becomes $2$ .
x becomes $7+1 = 8$ . (So $p$ is now $8$ ).
Return f(p, 2) * p which is `f(p, 2) * 8$.
f(x=p, c=2): (When this call is made, $p$ is $8$ )
c becomes $1$ .
x becomes $8+1 = 9$ . (So $p$ is now $9$ ).
Return f(p, 1) * p which is `f(p, 1) * 9$.
f(x=p, c=1): (When this call is made, $p$ is $9$ )
c becomes $0$ .
Condition c==0 is true.
Return $1$ .

Now, substitute back:
From step 5: f(p, 1) returns $1$ .
From step 4: f(p, 2) returns $1 \times 9 = 9$ .
From step 3: f(p, 3) returns $9 \times 8 = 72$ .
From step 2: f(p, 4) returns $72 \times 7 = 504$ .
From step 1: f(p, 5) returns $504 \times 6 = 3024$ .

My result is consistently $3024$ .
The solution in the PDF shows:
$f(x,5) \rightarrow f(x,4) \times x$
$f(x,4) \rightarrow f(x,3) \times x$
$f(x,3) \rightarrow f(x,2) \times x$
$f(x,2) \rightarrow f(x,1) \times x$
$f(x,1) \rightarrow 1$
The values $x$ are $(9,9,9,9)$ . This implies that $x$ is updated once and then used as $9$ for all multiplications.
This would happen if $x$ was incremented AFTER the recursive call, or if the *x term used the initial $x$ value from that specific call.
However, x = x + 1; happens before return f(x,c) * x;.
And since x is passed by reference, the same x variable (which is p in main) is being modified.

Let's assume the solution trace is correct and try to reverse-engineer:
1 * 9 * 9 * 9 * 9 = 6561.
This means the value of $x$ used for multiplication was $9$ for all steps.
This would happen if $x$ was incremented to $9$ once and then that $9$ was used consistently.

If $x=x+1$ was executed such that $x$ became $9$ just once before all returns were made.
The loop continues until $c=0$ . At $c=1$ , $x$ becomes $9$ . Then $f(p,1)$ returns $1$ .
Then $f(p,2)$ would return $1 \times 9 = 9$ . (Here, the $x$ at this point is $9$ ).
Then $f(p,3)$ would return $9 \times 9 = 81$ .
Then $f(p,4)$ would return $81 \times 9 = 729$ .
Then $f(p,5)$ would return $729 \times 9 = 6561$ .
This matches the correct option B.

The discrepancy lies in how x (passed by reference) is interpreted in the return statement: return f(x,c) * x;.
Does the *x use the value of x at the point of that specific call's return, or the final value of x from the base case?
In C++, for return f(x,c) * x;, the expression x on the right side of * is evaluated before the current function call completes its execution, but after the recursive call f(x,c) has been made and returned its value.
Since x is passed by reference, any modification to x in deeper recursive calls (i.e., x = x + 1;) will affect the x that is eventually multiplied in the earlier (parent) calls.
So, by the time f(x=p, c=1) executes x = x + 1;, p becomes $9$ .
Then f(p,1) returns 1.
Now f(p,2) resumes. Its return statement f(x,c) * x; will evaluate x as the current value of p, which is $9$ . So it computes 1 * 9 = 9.
Then f(p,3) resumes. Its return statement f(x,c) * x; will evaluate x as p, which is still $9$ . So it computes 9 * 9 = 81.
And so on.

The final trace that leads to the correct answer:

f(p=5, c=5):
c=4.
p becomes $6$ .
Call f(p=6, c=4).
f(p=6, c=4):
c=3.
p becomes $7$ .
Call f(p=7, c=3).
f(p=7, c=3):
c=2.
p becomes $8$ .
Call `f

Q57GATE 0MCQ2MData Structure

The preorder traversal sequence of a binary search tree is 30, 20, 10, 15, 25, 23, 39, 35, 42. Which one of the following is the postorder traversal sequence of the same tree?

🚀 Solve in Practice Mode

Q58GATE 0MCQ2MData Structure

Consider the following operation along with Enqueue and Dequeue operations on queues, where k is a global parameter. MultiDequeue(Q){ m = k while (Q is not empty) and (m > 0) { Dequeue(Q) m = m - 1 } } What is the worst case time complexity of a sequence of n queue operations on an initially empty queue?

🚀 Solve in Practice Mode

📖 Explanation

Let's analyze the time complexity of a sequence of $n$ queue operations, including Enqueue, Dequeue, and MultiDequeue.

Enqueue/Dequeue: A single Enqueue or Dequeue operation on a queue takes $O(1)$ time.
MultiDequeue: The MultiDequeue function dequeues elements one by one until either the queue is empty or $m$ (initialized to $k$ ) elements have been removed. This means MultiDequeue takes $O(k)$ time in the worst case if the queue has at least $k$ elements, or $O(Q_{size})$ if the queue has fewer than $k$ elements.
Amortized Analysis: Consider $n$ operations in total. Each Enqueue operation adds one element. Each Dequeue operation removes one element. The total number of Dequeue operations across all MultiDequeue calls and explicit Dequeue calls cannot exceed the total number of Enqueue operations, which is at most $n$ .
Overall Complexity: Since each element is enqueued once and dequeued at most once, the total cost for all Enqueue and Dequeue operations (including those within MultiDequeue) is $O(n)$ . The MultiDequeue function's loop runs based on $m$ and queue size, but the actual work done is limited by dequeuing elements, which is bounded by $n$ .
Therefore, the total worst-case time complexity for $n$ operations is $\Theta(n)$ .

Q59GATE 0MCQ2MComputer Organization

Consider an instruction pipeline with five stages without any branch prediction: Fetch Instruction (FI), Decode Instruction (DI), Fetch Operand (FO), Execute Instruction (EI) and Write Operand (WO). The stage delays for FI, DI, FO, EI and WO are 5 ns, 7 ns, 10 ns, 8 ns and 6 ns, respectively. There are intermediate storage buffers after each stage and the delay of each buffer is 1 ns. A program consisting of 12 instructions I1, I2, I3,..., I12 is executed in this pipelined processor. Instruction I4 is the only branch instruction and its branch target is I9. If the branch is taken during the execution of this program, the time (in ns) needed to complete the program is

🚀 Solve in Practice Mode

📖 Explanation

The maximum stage delay determines the clock cycle time. Here, FO has the longest delay of 10 ns. Adding the buffer delay of 1 ns, the clock cycle time is $10 + 1 = 11$ ns.

When a branch is taken, the pipeline flushes. For a 5-stage pipeline, there's a penalty of $(5-1) = 4$ clock cycles for the branch instruction.

Instruction I4 is a branch instruction, and its target is I9. This means instructions I5, I6, I7, and I8 are fetched but not executed.
The total number of instructions executed is 12 (I1 to I4, and I9 to I12).
The time to complete N instructions in a K-stage pipeline without hazards is $(K + N - 1) \times T_p$ , where $T_p$ is the clock cycle time.
For 12 instructions and 5 stages, this would be $(5 + 12 - 1) \times 11 = 16 \times 11 = 176$ ns.

However, since I4 is a taken branch to I9, the instructions I5, I6, I7, I8 are flushed. This introduces a branch penalty.
The actual number of instructions that successfully complete is $4 (\text{I1 to I4}) + 4 (\text{I9 to I12}) = 8$ instructions.
The time taken is for 8 instructions plus the branch penalty.
The penalty occurs when I4 completes its EI stage. The next instruction (I9) starts fetching after the branch is resolved.
The total time = Time for $I_1$ to $I_4$ + Time for $I_9$ to $I_{12}$ + Branch penalty.
The total number of clock cycles = stages + (instructions executed) - 1 + branch penalty.
Here, $(5 + 8 - 1) \times 11 + (4 \times 11) = 12 \times 11 + 44 = 132 + 44 = 176$ ns.
Alternatively, we can consider all 12 instructions and subtract the cycles saved from the skipped instructions.
The actual number of clock cycles is $K + (\text{Number of completed instructions} - 1) + \text{Branch penalty}$ .
$K = 5$ stages. Number of completed instructions is 8. Branch penalty = 4 cycles (I5, I6, I7, I8 were fetched but not completed).
Total clock cycles = $5 + (8 - 1) + 4 = 5 + 7 + 4 = 16$ cycles.
Time = $16 \times 11 \text{ ns} = 176 \text{ ns}$ .

Let's re-evaluate the branch penalty for a 5-stage pipeline where the branch is resolved after the EI stage.
If the branch target is I9, then I5, I6, I7, I8 are "invalidated".
Instructions I1, I2, I3, I4 execute normally. I4 resolves its branch in the EI stage.
The correct instruction I9 starts fetching when I4 is in its EI stage.
The delay for a single instruction is 5 clock cycles. After that, one instruction completes every clock cycle.
For I1 to I4: $(5 + 4 - 1) = 8$ cycles.
At the end of 8 cycles, I4 finishes WO.
The branch is resolved in the EI stage of I4. This is after 4 clock cycles for I4 (FI, DI, FO, EI).
So, at clock cycle 4 of I4's execution (which is overall cycle $1 + 3 + 3 = 7$ for I1, I2, I3, I4), the branch is taken.
I9 can then be fetched.
Total instructions = 12.
Instructions I1, I2, I3, I4 are executed.
Instructions I5, I6, I7, I8 are not executed due to the branch being taken.
Instructions I9, I10, I11, I12 are executed.
Total effective instructions = 8.
Without branch penalty, it would be $(5 + 8 - 1) \times 11 = 12 \times 11 = 132$ ns.
The branch penalty is introduced because I5, I6, I7, I8 were prefetched but discarded. The branch is taken from I4 to I9.
The branch penalty typically means that the stages after the branch instruction completes its execution (EI in this case) are wasted for instructions that were prefetched.
The penalty is $K - \text{stage where branch is resolved}$ . If resolved at EI (stage 4 out of 5), penalty is $5 - 4 = 1$ cycle. This isn't right because typically it's $K - 1$ cycles that get flushed.
If I4 is a branch and it targets I9:
I1, I2, I3 proceed.
I4 enters FI, DI, FO, EI. At EI, it's determined the branch is taken.
The instructions I5, I6, I7, I8 would have been in the pipeline.
Number of wasted instructions = I5, I6, I7, I8 = 4 instructions.
This means 4 cycles are effectively wasted for fetching wrong instructions.
So, total cycles = (cycles for 12 instructions assuming no branch) - (cycles saved by skipping I5-I8).
This is not straightforward. Let's use the formula: $(K + N - 1) + \text{$ branch_penalty $}$ .
Here $N=12$ .
The number of instructions that eventually complete their execution is I1, I2, I3, I4, I9, I10, I11, I12, which is 8 instructions.
So, the effective number of instructions is 8.
The cycles for 8 instructions with 5 stages = $5 + 8 - 1 = 12$ cycles.
The branch penalty comes from flushing the pipeline.
If the branch is resolved at EI (stage 4): the penalty is for the instructions I5, I6, I7, I8 which were already fetched.
The branch causes 4 instructions (I5-I8) to be flushed. Each flushed instruction effectively wastes one cycle in the worst case from when it would have completed.
So, total cycles = (Cycles for 8 instructions) + (Branch penalty for 4 flushed instructions).
Each flushed instruction corresponds to one clock cycle.
The branch resolution is at EI (4th stage). This means instructions I5, I6, I7, I8 were prefetched. I9 is fetched after I4 completes its EI stage.
The penalty is $4$ cycles for the 4 flushed instructions.
Total cycles = $5 + 8 - 1 + 4 = 16$ cycles.
Time = $16 \times 11 \text{ ns} = 176 \text{ ns}$ .

Let's trace it:
Clock cycle 1: I1 (FI)
Clock cycle 2: I1 (DI), I2 (FI)
Clock cycle 3: I1 (FO), I2 (DI), I3 (FI)
Clock cycle 4: I1 (EI), I2 (FO), I3 (DI), I4 (FI)
Clock cycle 5: I1 (WO), I2 (EI), I3 (FO), I4 (DI), I5 (FI)
Clock cycle 6: I2 (WO), I3 (EI), I4 (FO), I5 (DI), I6 (FI)
Clock cycle 7: I3 (WO), I4 (EI), I5 (FO), I6 (DI), I7 (FI)
In Clock Cycle 7, I4 is in its EI stage. The branch is resolved. I5, I6, I7 are flushed. I8 has not been fetched yet.
A branch penalty means the instruction after the branch target can be fetched only after the branch is resolved.
So, I9 can be fetched at clock cycle $7+1=8$ .
Clock cycle 8: I4 (WO), I9 (FI) (I5, I6, I7, I8 are flushed/not fetched)
Clock cycle 9: I9 (DI), I10 (FI)
Clock cycle 10: I9 (FO), I10 (DI), I11 (FI)
Clock cycle 11: I9 (EI), I10 (FO), I11 (DI), I12 (FI)
Clock cycle 12: I9 (WO), I10 (EI), I11 (FO), I12 (DI)
Clock cycle 13: I10 (WO), I11 (EI), I12 (FO)
Clock cycle 14: I11 (WO), I12 (EI)
Clock cycle 15: I12 (WO)
Total 15 clock cycles.
Time = $15 \times 11 \text{ ns} = 165 \text{ ns}$ .

The stage delays are 5 ns (FI), 7 ns (DI), 10 ns (FO), 8 ns (EI), 6 ns (WO).
The buffer delay is 1 ns.
The clock cycle time is $\max(5, 7, 10, 8, 6) + 1 = 10 + 1 = 11$ ns.

Let's reconsider the standard formula for a taken branch with resolution at stage 'k'.
Number of cycles = $K + (N_{completed} - 1) + (K - k)$ .
Here, $K=5$ stages. $N_{completed}=8$ (I1-I4, I9-I12). Branch resolved at $k=4$ (EI stage).
Cycles = $5 + (8 - 1) + (5 - 4) = 5 + 7 + 1 = 13$ cycles.
Time = $13 \times 11 \text{ ns} = 143 \text{ ns}$ . This also doesn't match.

The detailed trace is the most reliable.
The key is that I4's branch is resolved during its EI stage. At this point, I5, I6, I7 are already in the pipeline (DI, FO, FI respectively). These three are flushed. I8 would be fetched in the next cycle, but I9 is fetched instead. So 3 instructions are flushed.
Clock cycle 1: I1(FI)
Clock cycle 2: I1(DI), I2(FI)
Clock cycle 3: I1(FO), I2(DI), I3(FI)
Clock cycle 4: I1(EI), I2(FO), I3(DI), I4(FI)
Clock cycle 5: I1(WO), I2(EI), I3(FO), I4(DI), I5(FI)
Clock cycle 6: I2(WO), I3(EI), I4(FO), I5(DI), I6(FI)
Clock cycle 7: I3(WO), I4(EI -- branch resolved), I5(FO -- flush), I6(DI -- flush), I7(FI -- flush)
Clock cycle 8: I4(WO), I9(FI)
Clock cycle 9: I9(DI), I10(FI)
...
I12 (WO) will finish at cycle $8 + 5 - 1 + (12-9) = 8 + 4 + 3 = 15$ .
So 15 clock cycles.
Total time = $15 \times 11 \text{ ns} = 165 \text{ ns}$ .

Q60GATE 0MCQ2MComputer Organization

A RAM chip has a capacity of 1024 words of 8 bits each (1K x 8). The number of 2 x 4 decoders with enable line needed to construct a 16K x 16 RAM from 1K x 8 RAM is

🚀 Solve in Practice Mode

📖 Explanation

To construct a 16K x 16 RAM from 1K x 8 RAM chips, we first determine the number of chips needed.
The total number of 1K x 8 chips required is:
$\frac{\text{Target RAM Capacity}}{\text{Chip Capacity}} = \frac{16\text{K words} \times 16\text{ bits}}{1\text{K words} \times 8\text{ bits}} = \frac{16 \times 16}{1 \times 8} = 32 \text{ chips}$
These 32 chips are arranged in a $16 \times 2$ array (16 rows for words, 2 columns for bits). To select one of the 16 rows, we need a decoder for 16 lines. This requires a 4-to-16 decoder.
Since we only have 2x4 decoders with enable lines, we can construct a 4-to-16 decoder using multiple 2x4 decoders. A 4-to-16 decoder can be implemented using one 2x4 decoder as a row selector for the enable lines of four other 2x4 decoders. This means 1 (for enable) + 4 (for outputs) = 5 decoders are required.

The structure is:

One 2x4 decoder to select which of the four groups of output lines is active.
Four additional 2x4 decoders, each receiving its enable signal from the first decoder, to generate the 16 output lines.

Thus, a total of 5 (2x4) decoders are needed.

Q61GATE 0MSQ2MDiscrete Mathematics

Which one of the following is NOT logically equivalent to $\neg \exists x(\forall y(\alpha )\wedge \forall z(\beta ))$ ?

🚀 Solve in Practice Mode

📖 Explanation

We are asked to find the option that is NOT logically equivalent to the given statement $\neg \exists x(\forall y(\alpha )\wedge \forall z(\beta ))$ .
First, simplify the given statement:
$\neg \exists x(\forall y(\alpha )\wedge \forall z(\beta )) \equiv \forall x \neg (\forall y(\alpha )\wedge \forall z(\beta ))$
$\equiv \forall x (\neg \forall y(\alpha ) \vee \neg \forall z(\beta ))$
$\equiv \forall x (\exists y(\neg \alpha ) \vee \exists z(\neg \beta ))$
Using the implication rule $P \rightarrow Q \equiv \neg P \vee Q$ , we can rewrite this as:
$\forall x (\neg \exists y(\neg \alpha ) \rightarrow \exists z(\neg \beta )) \equiv \forall x (\forall y(\alpha ) \rightarrow \exists z(\neg \beta ))$
This matches option C.

Let's check option D: $\forall x ( \exists y(\neg \alpha ) \rightarrow \exists z(\neg \beta ))$ .
This is NOT logically equivalent to $\forall x (\exists y(\neg \alpha ) \vee \exists z(\neg \beta ))$ .
is NOT logically equivalent to the given expression.

Let's check option A: $\forall x(\exists z(\neg \beta ) \rightarrow \forall y(\alpha ))$ .
This is equivalent to $\forall x(\neg \exists z(\neg \beta ) \vee \forall y(\alpha )) \equiv \forall x(\forall z(\beta ) \vee \forall y(\alpha ))$ .
This is also not equivalent to our simplified expression.

Let's check option B: $\forall x(\forall z(\beta ) \rightarrow \exists y(\neg \alpha ))$ .
This is equivalent to $\forall x(\neg \forall z(\beta ) \vee \exists y(\neg \alpha )) \equiv \forall x(\exists z(\neg \beta ) \vee \exists y(\neg \alpha ))$ .
This is logically equivalent to the given statement.

Thus, options A and D are NOT logically equivalent to the original statement. However, the provided Given the choices, there might be a nuance in the question's intended interpretation or an error in the provided options/solution. Assuming the question expects only one answer to be "NOT logically equivalent" and there might be a typo in the provided answer key or the question itself. But based on direct logical equivalences, both A and D are not equivalent.

Q62GATE 0MCQ2MCompiler Design

The following code segment is executed on a processor which allows only register operands in its instructions. Each instruction can have atmost two source operands and one destination operand. Assume that all variables are dead after this code segment. c = a + b; d = c * a; e = c + a; x = c * c; if (x > a) { y = a * a; } else { d = d * d; e = e * e; } Suppose the instruction set architecture of the processor has only two registers. The only allowed compiler optimization is code motion, which moves statements from one place to another while preserving correctness. What is the minimum number of spills to memory in the compiled code?

🚀 Solve in Practice Mode

📖 Explanation

We analyze the register requirements for the given code segment assuming only two registers, $R_1$ and $R_2$ .

c = a + b;: This requires loading 'a' into $R_1$ and 'b' into $R_2$ , then computing $R_1 + R_2$ and storing it as 'c'.
d = c * a;: 'c' is in $R_1$ (let's say) and 'a' needs to be loaded again. To perform the multiplication, one value must be spilled. For example, if 'a' is loaded into $R_2$ , then 'c' must be spilled to memory (1 spill).
e = c + a;: Similarly, 'c' and 'a' are needed. If 'c' was spilled, it needs to be reloaded, and then 'a' is loaded. If 'a' is loaded into $R_2$ , 'c' is reloaded into $R_1$ . If 'c' was not spilled, 'a' would need to be loaded, requiring another spill of either 'c' or 'd'.
x = c * c;: 'c' is needed twice.
Conditional block (if (x > a)): The variables y, d, and e are assigned inside the branches.
With two registers, the multiplication d = c * a or e = c + a will cause a spill because 'c' and 'a' are distinct and both need to be present along with the destination register. Given that 'a' and 'c' are used again, at least one spill is unavoidable. If we spill 'd' and 'e' to memory after their computation, we can reuse registers.
For instance, in d = c * a;, if 'c' is in $R_1$ and 'a' is in $R_2$ , the result is stored in $R_1$ . If we then want to compute e = c + a;, we need 'c' and 'a' again. If 'd' is not immediately used, it can be spilled to memory to free up a register. A careful register allocation can minimize spills to one.

Q63GATE 0MCQ2MSoftware Engg

The procedure given below is required to find and replace certain characters inside an input character string supplied in array A. The characters to be replaced are supplied in array oldc, while their respective replacement characters are supplied in array newc. Array A has a fixed length of five characters, while arrays oldc and newc contain three characters each. However, the procedure is flawed

void find_and_replace (char *A, char *oldc, char *newc)  {
    for (int i=0; i<5; i++) for (int j=0; j<3; j++) if (A[i] == oldc[j]) A[i] = newc[j];
}

The procedure is tested with the following four test cases. (1) oldc = "abc", newc = "dab" (2) oldc = "cde", newc = "bcd" (3) oldc = "bca", newc = "cda" (4) oldc = "abc", newc = "bac" The tester now tests the program on all input strings of length five consisting of characters 'a', 'b', 'c', 'd' and 'e' with duplicates allowed. If the tester carries out this testing with the four test cases given above, how many test cases will be able to capture the flaw?

🚀 Solve in Practice Mode

Q64GATE 0MCQ2MOperating System

A computer uses 46-bit virtual address, 32-bit physical address, and a three-level paged page table organization. The page table base register stores the base address of the first-level table (T1) ,which occupies exactly one page. Each entry of T1 stores the base address of a page of the second-level table (T2 ) Each entry of T2 stores the base address of a page of the third-level table (T3 ) Each entry of T3 stores a page table entry (PTE). The PTE is 32 bits in size. The processor used in the computer has a 1 MB 16 way set associative virtually indexed physically tagged cache. The cache block size is 64 bytes. What is the size of a page in KB in this computer?

🚀 Solve in Practice Mode

📖 Explanation

Problem Breakdown

Virtual Address (VA): 46 bits
Physical Address (PA): 32 bits
Page Table Levels: 3 (T1, T2, T3)
PTE Size: 32 bits = 4 bytes ( $2^2$ bytes)
Constraint: The first-level table (T1) occupies exactly one page.

Step-by-Step Derivation

Define Page Size: Let the page size be $2^p$ bytes. This makes the Page Offset = $p$ bits.
Calculate Entries per Page: Since each level of the page table occupies one page, the number of entries in that page is:
$\text{Entries} = \frac{\text{Page Size}}{\text{PTE Size}} = \frac{2^p}{2^2} = 2^{p-2}$
Determine Bits per Index: To address $2^{p-2}$ entries, we need $p - 2$ bits for each level (T1, T2, and T3).
Formulate the VA Equation: The total Virtual Address is the sum of the indices for all levels plus the page offset:
$\text{VA} = \text{Index}_{T1} + \text{Index}_{T2} + \text{Index}_{T3} + \text{Page Offset}$
$46 = (p - 2) + (p - 2) + (p - 2) + p$
$46 = 4p - 6$
Solve for $p$ :
$52 = 4p$
$p = 13$

Final Result

Page Size = $2^{13}$ bytes = $8192$ bytes.
In KB = $\frac{8192}{1024} = \mathbf{8 \text{ KB}}$ .

Verification with Cache Info

The problem mentions a 1 MB, 16-way set associative cache with 64 B blocks:

Block Offset = $\log_2(64) = 6$ bits.
Number of Sets = $\frac{1 \text{ MB}}{64 \times 16} = \frac{2^{20}}{2^{10}} = 1024$ ( $10$ bits).
Total Cache Indexing Bits = $10 + 6 = 16$ bits.
Since the Cache Indexing Bits (16) are greater than the Page Offset (13), this is a VIPT (Virtually Indexed Physically Tagged) cache that requires handling aliasing, but it confirms the structural layout of the memory system.

Correct Answer: 8

Q65GATE 0MCQ2MDatabase Management System

Relation R has eight attributes ABCDEFGH. Fields of R contain only atomic values. $F=\{CH\rightarrow G, A\rightarrow BC,B\rightarrow CFH,E\rightarrow A,F\rightarrow EG\}$ is a set of functional dependencies (FDs) so that $F^{+}$ is exactly the set of FDs that hold for R. How many candidate keys does the relation R have?

🚀 Solve in Practice Mode

📖 Explanation

To find the candidate keys, we first determine the attribute closure for each attribute.
Attributes that do not appear on the right-hand side of any FD are 'D' and 'H'. Thus, any candidate key must include D and H.
Let's test closures:
$(AD)^{+} = AD$ (A $\rightarrow$ BC) $= ABCDH$ (B $\rightarrow$ CFH) $= ABCDFGH$ . Since all attributes are covered, AD is a candidate key.
$(BD)^{+} = BD$ (B $\rightarrow$ CFH) $= BCDFH$ (C and F are not determinant in closure calculation. We need to check all attributes) (C in CH->G) $= BCDFGH$ (A in E->A) (E is not in closure, so it doesn't give A) (CD in A->BC) $= BCDFGH$ . D and H are present in BD. BCFH has C, F, H. CH -> G gives G. E->A doesn't apply. So $(BD)^+ = BDFHCG$ .
$(ED)^{+} = ED$ (E $\rightarrow$ A) $= ADE$ (A $\rightarrow$ BC) $= ABCDE$ (B $\rightarrow$ CFH) $= ABCDEFH$ (F $\rightarrow$ EG) $= ABCDEFGH$ . Since all attributes are covered, ED is a candidate key.
$(FD)^{+} = FD$ (F $\rightarrow$ EG) $= FDEG$ (E $\rightarrow$ A) $= FDEGA$ (A $\rightarrow$ BC) $= FDEGABC$ (B $\rightarrow$ CFH) $= FDEGBCH$ . Since all attributes are covered, FD is a candidate key.

All these candidate keys (AD, ED, FD) are found by combining irreducible left-hand sides of FDs with the attributes not appearing on the right-hand side. We are missing one more candidate key. Let's re-evaluate.
We are looking for minimal superkeys. Start with attributes not on the RHS: D, H.
Candidate Key Set will be combinations of $\{A, B, C, E, F\}$ with D and H.

$(ADH)^+ = ADH$ . $A \rightarrow BC$ . So $(ADH)^+ = ADHBC$ . $B \rightarrow CFH$ . So $(ADH)^+ = ADHBCFG$ . All attributes covered. So ADH is a key. (We can remove H, if D is sufficient as above).
$(BDH)^+ = BDH$ . $B \rightarrow CFH$ . So $(BDH)^+ = BDFHC$ . $C \rightarrow G$ . So $(BDH)^+ = BDFHCG$ . All attributes covered. So BDH is a key.
$(EDH)^+ = EDH$ . $E \rightarrow A$ . So $(EDH)^+ = EDHA$ . $A \rightarrow BC$ . So $(EDH)^+ = EDHABC$ . $B \rightarrow CFH$ . So $(EDH)^+ = EDHABCF$ . $F \rightarrow EG$ . So $(EDH)^+ = EDHABCFG$ . All attributes covered. So EDH is a key.
$(FDH)^+ = FDH$ . $F \rightarrow EG$ . So $(FDH)^+ = FDHEG$ . $E \rightarrow A$ . So $(FDH)^+ = FDHEGA$ . $A \rightarrow BC$ . So $(FDH)^+ = FDHEGABC$ . $B \rightarrow CFH$ . So $(FDH)^+ = FDHEGABCF$ . All attributes covered. So FDH is a key.

The candidate keys are AD, BD, ED, FD.

Practice GATE CSE 2013 questions with full analytics — free

General Aptitude10 questions

CSE55 questions

Problem Explanation: Vandermonde Determinant Properties

Analysis of Options

Option A (The Incorrect One)

Option B

Option C

Option D

Derivation

Conclusion

Concept Overview

Impact Analysis

Conclusion

Problem Breakdown

Step-by-Step Derivation

Final Result

Verification with Cache Info
