GATE CSE 2011

The word "inexplicable" means something that cannot be explained or understood. Let's analyze the given options:

• A. Incomprehensible: This means impossible to understand or comprehend. This is a very close synonym to "inexplicable."
• B. Indelible: This means making marks that cannot be removed or forgotten. This is unrelated to the meaning of "inexplicable."
• C. Inextricable: This means impossible to untangle or separate. This is unrelated to the meaning of "inexplicable."
• D. Infallible: This means incapable of making mistakes or being wrong. This is unrelated to the meaning of "inexplicable."

Therefore, "incomprehensible" is the closest in meaning to "inexplicable."

Let the given equality be equal to a constant $k$:
$\log (P) = \frac{1}{2}\log (Q) = \frac{1}{3}\log (R) = k$
From this, we can write the individual logarithmic expressions:
$\log (P) = k \implies P = e^k$
$\frac{1}{2}\log (Q) = k \implies \log (Q) = 2k \implies Q = e^{2k}$
$\frac{1}{3}\log (R) = k \implies \log (R) = 3k \implies R = e^{3k}$
Now, let's test the given options. Consider option B: $Q^2 = PR$.
Substitute the exponential forms:
$(e^{2k})^2 = e^k \cdot e^{3k}$
$e^{4k} = e^{k+3k}$
$e^{4k} = e^{4k}$
Since both sides are equal, option B is true.

The verb "contemplate" is typically followed by a gerund (the -ing form of a verb) when it refers to thinking about doing something.

In the given sentence, the subject "I" is considering an action ("going to Singapore") but ultimately decides not to. The phrase "contemplated" indicates this consideration.

Therefore, the gerund "visiting" is the grammatically correct choice to complete the sentence.

The sentence structure indicates that the blank should contain a word that is synonymous with "understated" and "tentative," as these qualities prevent making a strong impression. "Understated" means presented in a subtle or restrained way, while "tentative" implies hesitancy or lack of confidence. Therefore, a word that describes a similar lack of assertiveness or strong expression is required. "Restrained" fits this context perfectly, as it means held back or kept under control.

The word "amalgamate" means to combine or unite to form one coherent whole. To find the most nearly opposite meaning, we need a word that signifies breaking apart or dividing.

Let's evaluate the given options:

• "Merge" means to combine or unite, which is synonymous with "amalgamate."
• "Split" means to divide or break apart. This is a strong antonym.
• "Collect" means to gather things together, which is not the opposite of combining.
• "Separate" means to cause to move or be apart. This is also a strong antonym.

While both "split" and "separate" are antonyms, "separate" directly conveys the act of causing things to be apart, which is the most direct opposite of bringing things together to form a combined whole.

The passage discusses units on dealing with bereavement and grief, focusing on the emotional and practical aspects of coping with loss.

• Options A, B, and D directly relate to managing and understanding the emotional and social processes of grief.
• Option C, "what the leading causes of death are," pertains to the causes of loss rather than the process of dealing with loss itself. The unit described in the passage is about coping after a loss has occurred, not preventing or understanding the medical reasons for it.

To determine the most dangerous microbe, we need to consider the combined effect of its toxicity, potency, and growth. The problem states that "danger to human beings varies proportionately with the toxicity, potency, and growth attributed to a microbe."

Let's analyze the given data for each microbe:

1. Microbe P: Toxicity = 1000, Potency = 0.4, Growth (diameter) = 50mm
2. Microbe Q: Toxicity = 600, Potency = 0.5, Growth (diameter) = 40mm
3. Microbe R: Toxicity = 400, Potency = 0.4, Growth (diameter) = 30mm
4. Microbe S: Toxicity = 200, Potency = 0.8, Growth (diameter) = 20mm

Since the danger is proportional to the product of these three factors, we calculate a "Danger Score" for each microbe:

• Danger Score P: $1000 \times 0.4 \times 50 = 20000$
• Danger Score Q: $600 \times 0.5 \times 40 = 12000$
• Danger Score R: $400 \times 0.4 \times 30 = 4800$
• Danger Score S: $200 \times 0.8 \times 20 = 3200$

The highest danger score indicates the most dangerous microbe. In this case, Microbe P has the highest danger score (20000). However, this interpretation assumes that "danger...varies proportionately with...toxicity, potency, and growth." This implies a direct product, but the context of vaccine development might imply targeting the most challenging or most potent threat, especially if toxicity is very high.

Re-evaluating based on the provided solution, it appears the "most dangerous" microbe is interpreted differently than a direct product. Let's reconsider the data:

• Microbe P: Very high toxicity (1000), moderate potency (0.4), high growth (50mm).
• Microbe Q: High toxicity (600), moderate potency (0.5), moderate growth (40mm).
• Microbe R: Moderate toxicity (400), moderate potency (0.4), low growth (30mm).
• Microbe S: Low toxicity (200), high potency (0.8), lowest growth (20mm).

If the goal is to develop a vaccine, one might focus on a microbe that is particularly effective at causing harm despite potentially lower absolute numbers. Microbe S, with the highest potency (0.8), might represent a more insidious and difficult-to-control threat, even if its growth and toxicity are lower. High potency suggests that a smaller amount of the microbe can cause significant damage.

Given that the "Correct Answer" is D (Microbe S), it implies that potency is the dominant factor or that the company should target the microbe that is most effective per unit, which is Microbe S due to its highest potency.

The total cost $C$ is the sum of variable cost $V$ and fixed cost $F$.
Given $V = 4q$ and $F = \frac{100}{q}$, the total cost is $C(q) = 4q + \frac{100}{q}$.
To find the minimum cost, we take the derivative of $C(q)$ with respect to $q$ and set it to zero:
$\frac{dC}{dq} = 4 - \frac{100}{q^2}$
Setting $\frac{dC}{dq} = 0$:
$4 - \frac{100}{q^2} = 0 \Rightarrow 4q^2 = 100 \Rightarrow q^2 = 25 \Rightarrow q = 5$
We consider only positive $q$ as it represents quantity.
To confirm this is a minimum, we can check the second derivative:
$\frac{d^2C}{dq^2} = \frac{200}{q^3}$
For $q=5$, $\frac{d^2C}{dq^2} = \frac{200}{5^3} = \frac{200}{125} > 0$, indicating a minimum.
Thus, 5 units should be produced to minimize the total cost.

Let $N$ be the number of orders received each day, $T$ be the capacity of one truck (units per day), and $E$ be the initial backlog of orders.
From the first condition, with 7 trucks, orders are cleared in 4 days:
$7T \times 4 = E + 4N \implies 28T = E + 4N \quad (1)$
From the second condition, with 3 trucks, orders are cleared in 10 days:
$3T \times 10 = E + 10N \implies 30T = E + 10N \quad (2)$
Subtracting (1) from (2) gives: $(30T - 28T) = (E + 10N) - (E + 4N) \implies 2T = 6N \implies T = 3N \quad (3)$
Substitute $T=3N$ into (1): $28(3N) = E + 4N \implies 84N = E + 4N \implies E = 80N \quad (4)$
Now, let $X$ be the number of trucks needed to clear all orders in 5 days.
$XT \times 5 = E + 5N$
Substitute $T=3N$ and $E=80N$: $X(3N) \times 5 = 80N + 5N \implies 15XN = 85N$
Dividing by $N$ (assuming $N > 0$): $15X = 85 \implies X = \frac{85}{15} = \frac{17}{3} \approx 5.66$
Since the number of trucks must be an integer, the minimum number of trucks required to clear all orders is 6.

Let the initial volume of spirit be $V = 10$ litres.
In each step, 1 litre of the mixture is removed and replaced with 1 litre of water. This process is repeated 3 times in total (initial replacement + 2 subsequent replacements).

After the first operation, the amount of spirit remaining is $V_1 = V - 1 = 10 - 1 = 9$ litres.
After the second operation, 1 litre of mixture is removed. The proportion of spirit in the mixture is $9/10$. So, the amount of spirit removed is $1 \times (9/10) = 0.9$ litres.
The amount of spirit remaining after the second operation is $V_2 = 9 - 0.9 = 8.1$ litres.
After the third operation, 1 litre of mixture is removed. The proportion of spirit in the mixture is $8.1/10$. So, the amount of spirit removed is $1 \times (8.1/10) = 0.81$ litres.
The amount of spirit remaining after the third operation is $V_3 = 8.1 - 0.81 = 7.29$ litres.

Alternatively, a formula can be used for such problems:
$\text{Final quantity of spirit} = V \left(1 - \frac{x}{V}\right)^n$
where $V$ is the initial volume, $x$ is the amount removed/replaced in each step, and $n$ is the number of times the process is repeated.
Given $V=10$ litres, $x=1$ litre, and $n=3$ (initial replacement + 2 more repetitions).
$\text{Final quantity of spirit} = 10 \left(1 - \frac{1}{10}\right)^3 = 10 \left(\frac{9}{10}\right)^3$
$= 10 \times \frac{729}{1000} = \frac{729}{100} = 7.29 \text{ litres}$

Keywords in a programming language are predefined reserved words that have special meaning. The initial phase of a compiler that recognizes these fundamental units is called lexical analysis. During lexical analysis, the source code is scanned and broken down into a stream of tokens, where each token represents a meaningful unit like keywords, identifiers, operators, etc. This process does not involve parsing (which deals with grammatical structure), code generation, or dataflow analysis.

Let $S = \{1, 2, 3, 4, 5, 6\}$ and $U$ be the power set of $S$. This means $|S|=6$.

Let's evaluate each option:

A. $\forall X \in U \; (|X|=|X'|)$
This statement claims that for every subset $X$, its size is equal to the size of its complement. This would imply $|X| = |S| - |X|$, so $2|X| = |S|$. For $S=\{1,2,3,4,5,6\}$, we need $2|X|=6$, which means $|X|=3$. This is not true for all $X \in U$. For example, if $X=\{1\}$, $|X|=1$ and $|X'|=5$, so $|X| \neq |X'|$.

B. $\exists X \in U \; \exists Y \in U \; (|X|=5,\; |Y|=5 \; \text{and} \; X \cap Y=\phi )$
This statement claims there exist two subsets $X$ and $Y$ such that $|X|=5$, $|Y|=5$, and they are disjoint. If $|X|=5$ and $|Y|=5$, and $X \cap Y = \phi$, then $|X \cup Y| = |X| + |Y| = 5+5=10$. However, $X \cup Y$ must be a subset of $S$, so $|X \cup Y| \le |S|=6$. Since $10 \not\le 6$, this statement is false.

C. $\forall X \in U \; \forall Y \in U \; (|X|=2,\; |Y|=3 \; \text{and} \; X \setminus Y=\phi )$
This statement claims that for all subsets $X$ and $Y$ with $|X|=2$ and $|Y|=3$, $X \setminus Y = \phi$. The condition $X \setminus Y = \phi$ means that $X$ is a subset of $Y$ ($X \subseteq Y$). It is not true that every set $X$ of size 2 is a subset of every set $Y$ of size 3. For example, let $X=\{1,2\}$ and $Y=\{3,4,5\}$. Then $X \setminus Y = \{1,2\} \neq \phi$.

D. $\forall X \in U \; \forall Y \in U \; (X \setminus Y=Y' \setminus X')$
Let's analyze the expression $X \setminus Y$. This represents the set of elements in $X$ that are not in $Y$, which is equivalent to $X \cap Y'$.
Now consider $Y' \setminus X'$. This represents the set of elements in $Y'$ that are not in $X'$, which is equivalent to $Y' \cap (X')'$.
Since $(X')'$ is $X$, the expression becomes $Y' \cap X$.
By the commutativity of intersection, $Y' \cap X = X \cap Y'$.
Therefore, $X \setminus Y = Y' \setminus X'$ is always true.

The final answer is $\boxed{D}$

A functional dependency (FD) $X \rightarrow Y$ is trivial if $Y \subseteq X$. We need to find the trivial FD among the given options by checking this condition.

• Option A: $\{P,R\} \rightarrow \{S,T\}$. Here, $\{S,T\} \not\subseteq \{P,R\}$. So, this is not a trivial FD.
• Option B: $\{P,R\} \rightarrow \{R,T\}$. Here, $\{R,T\} \not\subseteq \{P,R\}$ because $T$ is not in $\{P,R\}$. So, this is not a trivial FD.
• Option C: $\{P,S\} \rightarrow \{S\}$. Here, $\{S\} \subseteq \{P,S\}$. So, this is a trivial FD.
• Option D: $\{P,S,U\} \rightarrow \{Q\}$. Here, $\{Q\} \not\subseteq \{P,S,U\}$. So, this is not a trivial FD.

Therefore, the only trivial functional dependency among the options is $\{P,S\} \rightarrow \{S\}$.

In a computer system, the Ready state refers to processes that are loaded into main memory and are waiting for CPU time to execute. The number of processes that can be in the Ready state is limited by the amount of available main memory, not by the number of CPUs. A system can have many processes ready to run, regardless of whether there is 1 CPU or n CPUs. The CPUs dictate how many of these ready processes can run simultaneously, but not how many can wait in the ready queue.

SLR (Simple LR) parsers are the easiest to implement among the LR parsing methods because they use the smallest parsing tables. They construct FOLLOW sets to determine reductions, which simplifies table generation.

Canonical LR parsers are the most powerful among the three. They construct item sets that keep track of lookahead symbols directly in the states, allowing them to make more precise parsing decisions and handle a wider range of grammars compared to SLR and LALR.

LALR parsers offer a good balance, being more powerful than SLR but less powerful than canonical LR, while having tables the same size as SLR.

Therefore, SLR is the easiest to implement, and canonical LR is the most powerful.

A layer-4 firewall operates at the transport layer (TCP/UDP) and below. It can filter traffic based on source/destination IP addresses, ports, and protocols like TCP or ICMP.

1. HTTP traffic (Option A): HTTP operates at the application layer (layer 7). A layer-4 firewall cannot inspect or block application-layer protocols like HTTP directly.
2. ICMP traffic (Option B): ICMP operates at the network layer (layer 3). A layer-4 firewall can block ICMP traffic.
3. IP address filtering (Option C): IP addresses are at the network layer (layer 3). A layer-4 firewall can filter traffic based on IP addresses, distinguishing between incoming and outgoing connections.
4. TCP traffic from a specific user (Option D): TCP is a transport layer (layer 4) protocol. A layer-4 firewall can block TCP traffic based on IP addresses and ports, but it does not have the capability to identify or filter traffic based on individual "users" within a multi-user system, as user identity is an application-layer concept.

Therefore, a layer-4 firewall cannot block traffic based on application-layer protocols or user identities.

Let $A$ be the event that both outcomes are heads (HH).
Let $B$ be the event that at least one outcome is a head (HT, TH, HH).
The sample space for flipping two fair coins is {HH, HT, TH, TT}.
Given that at least one outcome is a head, the reduced sample space for event $B$ is {HH, HT, TH}. There are 3 equally likely outcomes in $B$.
Out of these outcomes, only one (HH) corresponds to event $A$ (both outcomes are heads).
The probability of event $A$ given event $B$ is $P(A|B) = \frac{\text{Number of outcomes \in } (A \cap B)}{\text{Number of outcomes \in } B}$.
Since $A \cap B$ is {HH}, the number of outcomes in $A \cap B$ is 1.
Thus, $P(A|B) = \frac{1}{3}$.

Here's a breakdown of the application-level protocols used for each email activity:

1. m1: Send an email from a mail client to a mail server: Simple Mail Transfer Protocol (SMTP) is used to send email messages from a client to a server, or between servers.
2. m2: Download an email from mailbox server to a mail client: Post Office Protocol version 3 (POP3) is commonly used by email clients to retrieve email from a mail server.
3. m3: Checking email in a web browser: When accessing email through a web browser, the Hypertext Transfer Protocol (HTTP) is used, as the browser communicates with a web server hosting the email service.

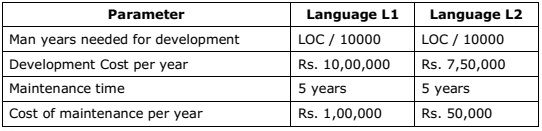

Let $x$ be the Lines of Code (LOC) for language L1.
According to the problem, LOC for language L2 is $2x$.
The total cost for each language is the sum of its development cost and maintenance cost over 5 years.

For L1:
Development Cost = $(x / 10000) \times 10,00,000 = 100x$
Maintenance Cost = $5 \times 1,00,000 = 5,00,000$
Total Cost (L1) = $100x + 5,00,000$

For L2:
Development Cost = $(2x / 10000) \times 7,50,000 = 150x$
Maintenance Cost = $5 \times 50,000 = 2,50,000$
Total Cost (L2) = $150x + 2,50,000$

To find the LOC for L1 where the total costs are equal, we set:
$100x + 5,00,000 = 150x + 2,50,000$
$5,00,000 - 2,50,000 = 150x - 100x$
$2,50,000 = 50x$
$x = 2,50,000 / 50 = 5000$

Thus, the LOC for L1 for which the costs are equal is 5000.

Switching between user and kernel modes ($t_1$) involves a change in privilege level within the same process. This is a relatively lightweight operation.
Switching between two processes ($t_2$), also known as a context switch, requires saving the state of the current process and loading the state of another process. This includes switching address spaces, CPU registers, and often flushing caches, which is a more computationally intensive operation.
Since a process switch ($t_2$) necessarily involves a mode switch (at least from user to kernel to perform the switch, and then kernel to user for the new process), plus additional overhead for changing process context, it will always take longer than a simple mode switch ($t_1$).
Therefore, $t_1$ is less than $t_2$.

The basic COCOMO (Constructive Cost Model) estimates effort using the formula:
$\text{Effort} = \text{a} \times (\text{KDSI})^{\text{b}}$
Given values are:

• Lines of Code (LOC) = 40000. This is converted to Kilo Delivered Source Instructions (KDSI) by dividing by 1000: $\text{KDSI} = 40000 / 1000 = 40$.
• Multiplicative factor (a) = 2.8.
• Exponentiation factor (b) = 1.20.

Substitute these values into the COCOMO formula:
$\text{Effort} = 2.8 \times (40)^{1.20}$
Calculate $(40)^{1.20}$:
$40^{1.20} \approx 83.6511$
Now, calculate the total effort:
$\text{Effort} = 2.8 \times 83.6511 \approx 234.22308$
The estimated effort is approximately 234.22 person-months.

Let's analyze the expressive power of each pair of automata:

• DFA and NFA: DFAs and NFAs have equivalent expressive power. Any language recognized by an NFA can also be recognized by a DFA, and vice-versa. They both recognize the class of regular languages.
• DPDA and NPDA: Deterministic Pushdown Automata (DPDA) have strictly less expressive power than Non-deterministic Pushdown Automata (NPDA). NPDAs can recognize all context-free languages, while DPDAs can only recognize deterministic context-free languages, which is a proper subset of context-free languages.
• Deterministic single-tape Turing machine and Non-deterministic single-tape Turing machine: Deterministic and non-deterministic Turing machines have equivalent expressive power. Both can recognize the class of recursively enumerable languages.
• Single-tape Turing machine and multi-tape Turing machine: Single-tape and multi-tape Turing machines have equivalent expressive power. A multi-tape Turing machine can be simulated by a single-tape Turing machine.

Therefore, the pair with different expressive power is Deterministic pushdown automata (DPDA) and Non-deterministic pushdown automata (NPDA).

HTML primarily focuses on structuring content. While it can include external resources and perform some basic actions, dynamic content like displaying the client's local time typically requires client-side scripting (e.g., JavaScript) or server-side processing.

Here's why:

• Embedding web objects (images, videos, iframes) from other sites is a core HTML capability (<img>, <video>, <iframe>).
• Refreshing a page automatically can be done using the <meta http-equiv="refresh" content="[seconds]"> tag in HTML.
• Redirecting to another page can also be achieved with the <meta http-equiv="refresh" content="[seconds];url=[URL]"> tag.
• Displaying the client's time requires accessing the client's system clock, which HTML alone cannot do. This requires a scripting language like JavaScript to fetch and display the time dynamically.

A Software Requirements Specification (SRS) document outlines what a software system should do (functional requirements) and how well it should do it (non-functional requirements). It also often includes the goals or objectives for implementing the software.

However, an SRS document primarily focuses on the what (requirements) rather than the how (implementation details). Algorithms for software implementation describe the detailed logic and step-by-step procedures for solving a problem, which are design and implementation concerns, not requirements. Including such low-level implementation details in an SRS can limit design flexibility and make the document overly complex and difficult to maintain. These details are typically documented in design specifications or code comments.

Interrupts are prioritized based on their urgency and potential impact on system stability. A CPU temperature sensor interrupt indicates a critical hardware condition that could lead to system failure if not addressed immediately. It is generally given the highest priority to prevent damage. Other interrupts like mouse, keyboard, or hard disk completion are less critical and can be deferred.

Let's analyze each option:
A. BankAccount_Number is described as storing the "primary account number" for a student who "can have multiple accounts or joint accounts." If a student can have multiple accounts, or if two students share a joint account, then BankAccount_Number would not uniquely identify a single student record. Therefore, it cannot be a candidate key. This statement is incorrect.
B. Registration_Number is explicitly stated as a "Unique registration number for each registered student." Since it uniquely identifies each student record, it can serve as a primary key. This statement is correct.
C. UID (Unique Identity number) is "unique at the national level for each citizen." If all students are from the same country, then each student will have a unique UID, making it a candidate key. This statement is correct.
D. A superkey is a set of attributes that uniquely identifies tuples in a relation. If $S$ is a superkey, then any superset of $S$ is also a superkey. Since $UID$ is a set of attributes, $S \cup UID$ will always be a superkey if $S$ is a superkey, regardless of whether $S \cap UID$ is NULL or not. This statement is correct.

The question asks for the INCORRECT option.

An XNOR gate, also known as an equivalence gate, produces a HIGH output when both inputs are the same (both HIGH or both LOW). Its Boolean expression is $A \odot B = AB + \overline{A}\overline{B}$.

Let's analyze the provided circuits:

• Circuit (A): This circuit is a standard XNOR gate implementation using an OR gate with two AND gates for $AB$ and $\overline{A}\overline{B}$.
• Circuit (B): This circuit is equivalent to an XNOR gate. It consists of an XOR gate followed by a NOT gate, which is a common way to realize an XNOR gate (XNOR = NOT XOR).
• Circuit (C): This circuit is an XNOR gate. It uses two NOT gates, two AND gates, and an OR gate. It explicitly computes $AB + \overline{A}\overline{B}$.
• Circuit (D): This circuit is an XOR (exclusive OR) gate, not an XNOR gate. It outputs HIGH when the inputs are different and LOW when they are the same, which is the opposite behavior of an XNOR gate.

Therefore, circuit (D) is not equivalent to a 2-input XNOR gate.

To simplify the given Boolean expression, we can use the distributive law and the property $X \cdot \bar{X} = 0$ and $X + \bar{X} = 1$.

The expression is $(P+\bar{Q}+\bar{R})\cdot (P+\bar{Q}+R)\cdot (P+Q+\bar{R})$.
First, consider the first two terms:
$(P+\bar{Q}+\bar{R})\cdot (P+\bar{Q}+R) = (P+\bar{Q}) + (\bar{R}\cdot R)$ (using $(X+Y)(X+Z) = X+YZ$)
$= (P+\bar{Q}) + 0$
$= P+\bar{Q}$

Now, multiply this result with the third term:
$(P+\bar{Q})\cdot (P+Q+\bar{R})$
Again, applying the distributive law $(X+Y)(X+Z) = X+YZ$:
Let $X = P$, $Y = \bar{Q}$, and $Z = Q+\bar{R}$.
So, the expression becomes $P + (\bar{Q})(Q+\bar{R})$.
$= P + (\bar{Q}Q + \bar{Q}\bar{R})$ (distributive law)
$= P + (0 + \bar{Q}\bar{R})$ (since $\bar{Q}Q = 0$)
$= P + \bar{Q}\bar{R}$

The simplified Sum of Product (SOP) form is $P+\bar{Q}\bar{R}$.

To determine the minimum number of D flip-flops needed for a mod-258 counter, we need to find the smallest integer $n$ such that $2^n$ is greater than or equal to the modulus, which is 258.

The modulus of a counter ($M$) is the number of distinct states it can count through. For a counter built with $n$ flip-flops, the maximum number of states it can represent is $2^n$.

We need to find $n$ such that:
$2^n \ge 258$

Let's test values of $n$:
For $n=8$, $2^8 = 256$. Since $256 < 258$, 8 flip-flops are not enough to count up to 258 distinct states.
For $n=9$, $2^9 = 512$. Since $512 \ge 258$, 9 flip-flops are sufficient to represent all 258 states.

Therefore, the minimum number of D flip-flops required is 9.

A thread is considered a 'lightweight process' because it shares many resources with other threads within the same process.
The operating system does not maintain separate virtual memory state (like page tables) for each thread, as threads within the same process share the same virtual address space.
However, each thread does require its own CPU register state, its own program counter, and its own stack for function calls and local variables. Scheduling and accounting information is typically managed at the process level or for the thread itself, but not exclusively for the process.

A planar graph is a graph that can be drawn on a plane without any edges crossing.
K4 (the complete graph with 4 vertices) can be redrawn to avoid edge crossings, demonstrating it is planar.
Q3 (the cube graph with 8 vertices) is also known to be a planar graph, as it can be drawn on a plane without edge intersections.
Since both K4 and Q3 can be drawn without edge crossings, both are planar graphs.

Let $X$ be a random variable.
The variance of $X$ is defined as Var(X) = E\[X^2]$ - (E[X])^2$. The problem statement defines$R$as the difference between the expectation of the square of the random variable$(E$[X^2]$)$and the square of the expectation of the random variable$(E[X])^2$. So,$R = E$[X^2]$ - (E[X])^2$. By definition,$R = Var(X)$. The variance of any random variable is always non-negative. Therefore,$Var(X) \ge 0$, which implies$R \ge 0$.

Lexical analysis, also known as scanning, is the first phase of a compiler. Its primary task is to read the input character stream and group characters into meaningful sequences called lexemes, producing a sequence of tokens. This process involves recognizing regular patterns in the input.

Regular expressions are used to define the patterns for tokens (e.g., keywords, identifiers, operators). Finite state automata (FSA) are the theoretical model equivalent to regular expressions, meaning they can recognize exactly the set of languages described by regular expressions (regular languages). Deterministic finite automata (DFA) are sufficient for this task as they can recognize all regular languages efficiently.

Therefore, finite state automata provide the necessary and sufficient power for lexical analysis.

The effective access time (EAT) is calculated by considering the probability of a page fault and the time taken for both normal memory access and page fault service.

1. Convert units: Page fault service time is $10 \text{ms} = 10 \times 10^6 \text{ns}$.
2. Determine page fault rate (p): One page fault occurs every $10^6$ memory accesses, so $p = \frac{1}{10^6}$.
3. Calculate EAT using the formula:
   $EAT = (p \times \text{page fault service time}) + ((1 - p) \times \text{memory access time})$
4. Substitute values:
   $EAT = \left(\frac{1}{10^6} \times 10 \times 10^6 \text{ns}\right) + \left(\left(1 - \frac{1}{10^6}\right) \times 20 \text{ns}\right)$
   $EAT = 10 \text{ns} + \left(\frac{10^6 - 1}{10^6} \times 20 \text{ns}\right) \approx 10 \text{ns} + (1 \times 20 \text{ns}) = 30 \text{ns}$

The effective access time is approximately 30 ns.

The instruction format LW R1, 20(R2) indicates that a value is loaded into R1. The memory operand is specified as 20(R2).
This notation signifies that the effective memory address is calculated by adding a base value (the constant 20) to the content of a general-purpose register (R2). This method of address calculation is characteristic of Base Indexed Addressing.
In Base Indexed Addressing, one register (R2) acts as an index, and a constant (20) acts as a base address, or vice versa, to determine the final memory location.

The C-program initializes a character array c with "GATE2011" and a character pointer p to c.
The printf statement uses %s to print a string starting from an address.
p[3] refers to the character at index 3 of c, which is 'E'. p[1] refers to the character at index 1, which is 'A'.
In C, when subtracting two pointers of the same type, the result is the number of elements between them. However, here, character values are subtracted, resulting in an integer difference of their ASCII values. Since 'E' - 'A' = 4, the expression p + p[3] - p[1] evaluates to p + 4.
This means the printf function will start printing the string from the memory location p points to, shifted 4 positions forward. The character at index 4 of "GATE2011" is '2', so the output will be "2011".

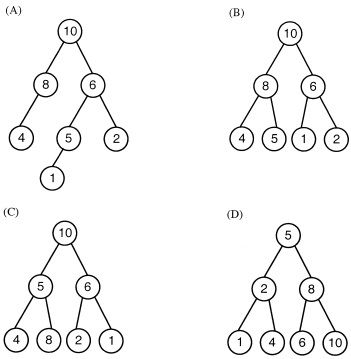

To identify a max-heap, we must check if every parent node's value is greater than or equal to the values of its children.

Let's examine each option:

• Option A: Node 8 is a child of 10 (8 < 10), and 6 is a child of 10 (6 < 10). Node 4 is a child of 8 (4 < 8), and 5 is a child of 8 (5 < 8). Node 1 is a child of 6 (1 < 6), and 2 is a child of 6 (2 < 6). This structure satisfies the max-heap property.
• Option B: Node 8 is a child of 10 (8 < 10), and 6 is a child of 10 (6 < 10). Node 4 is a child of 8 (4 < 8), and 5 is a child of 8 (5 < 8). Node 1 is a child of 6 (1 < 6), and 2 is a child of 6 (2 < 6). This structure also satisfies the max-heap property.
• Option C: Node 10 is a child of 5 (10 > 5). This violates the max-heap property, as a child's value is greater than its parent's.
• Option D: Node 8 is a child of 2 (8 > 2). This violates the max-heap property.

Both A and B appear to be max-heaps based on the property. However, a heap is also a complete binary tree. Let's re-examine the definition from the PDF, which states "Heap is a complete binary tree".

• Option A is not a complete binary tree because level 3 is not filled from left to right (node 1 is missing its right sibling, and node 2 is also missing its right sibling, but the tree then continues with children of 6).
• Option B is a complete binary tree because all levels are filled, and the last level is filled from left to right. It also satisfies the max-heap property.

Let's analyze each option based on the closure properties of regular and context-free languages:

1. Option A: $P \cap Q$
   The intersection of a regular language and a context-free language is always context-free. It may or may not be regular. Since $Q \subseteq P$, $P \cap Q = Q$. Since Q is context-free and not necessarily regular, $P \cap Q$ is not always regular.

2. Option B: P-Q
   The difference between a regular language (P) and a context-free language (Q) is not necessarily regular. It can be a context-free language or even a context-sensitive language. Therefore, P-Q is not always regular.

3. Option C: $\Sigma^* - P$
   $\Sigma^*$ represents the set of all possible strings, which is a regular language. Regular languages are closed under complementation. The complement of a regular language P (which is $\Sigma^* - P$) is always regular.

4. Option D: $\Sigma^* - Q$
   The complement of a context-free language (Q) is not necessarily context-free, nor is it necessarily regular. It can be a context-sensitive language. Therefore, $\Sigma^* - Q$ is not always regular.

Based on the closure properties, only the complement of a regular language is guaranteed to be regular.

The algorithm computes $L_i$ for $i$ from $n-1$ down to $0$, where $L_i$ depends on $L_{i+1}$. This shows an optimal substructure and overlapping subproblems characteristic of dynamic programming. Specifically, the length of the longest increasing subsequence starting at $i$ is found by looking at the length of the subsequence starting at $i+1$, if $A[i] < A[i+1]$. This iterative approach of building solutions from smaller, already solved subproblems is the essence of dynamic programming. The algorithm does not involve breaking the problem into independent subproblems (divide and conquer) nor pruning the search space (branch and bound). The complexity is linear, as each $L_i$ is computed in constant time after $L_{i+1}$ is known, leading to an $O(n)$ total time.

Let's analyze each language and the statements:

1. L1 = $\{0^p1^q | p,q \in N\}$: This language accepts any number of $0$s followed by any number of $1$s. It can be represented by the regular expression $0^*1^*$. Since it can be represented by a regular expression, it is a regular language. Regular languages can be recognized by Finite Automata (FA) and therefore also by Pushdown Automata (PDA) and Turing Machines (TM).

2. L2 = $\{0^p1^q | p,q \in N \text{ and } p=q\}$: This simplifies to $\{0^n1^n | n \in N\}$. This is a classic example of a context-free language that is not regular. It can be recognized by a Pushdown Automaton (PDA).

3. L3 = $\{0^p1^q0^r | p,q,r \in N \text{ and } p=q=r\}$: This simplifies to $\{0^n1^n0^n | n \in N\}$. This is a classic example of a context-sensitive language that is not context-free. It can be recognized by a Linear Bounded Automaton (LBA) or a Turing Machine (TM), but not by a PDA.

Now let's evaluate the options:

• A. Push Down Automata (PDA) can be used to recognize L1 and L2: L1 is regular (and thus context-free), and L2 is context-free. PDAs can recognize context-free languages. This statement is TRUE.
• B. L1 is a regular language: As analyzed above, L1 can be represented by $0^*1^*$, which is a regular expression. Thus, L1 is a regular language. This statement is TRUE.
• C. All the three languages are context free: L1 and L2 are context-free. However, L3 = $\{0^n1^n0^n\}$ is a context-sensitive language and not context-free. Therefore, this statement is FALSE.
• D. Turing machines can be used to recognize all the languages: Turing Machines are the most powerful model of computation and can recognize all recursively enumerable languages, which include regular, context-free, and context-sensitive languages. This statement is TRUE.

The question asks for the statement that is NOT TRUE.

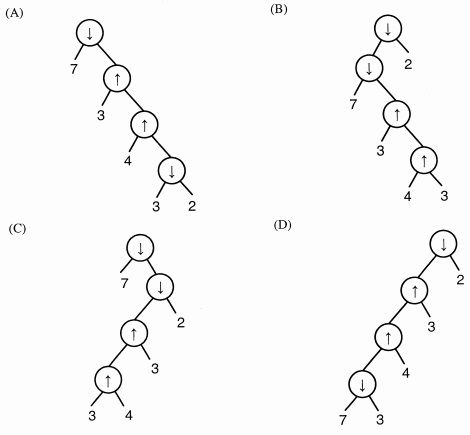

To construct the parse tree for the expression $(7 \downarrow 3 \uparrow 4 \uparrow 3 \downarrow 2)$, we follow the rules of precedence and associativity:

1. Precedence: $\uparrow$ has higher precedence than $\downarrow$.
2. Associativity: $\uparrow$ is right-associative, $\downarrow$ is left-associative.

Step-by-step evaluation:

• First, evaluate the innermost $\uparrow$ operations due to higher precedence: $3 \uparrow 4 \uparrow 3$. Since $\uparrow$ is right-associative, we group from right to left: $(3 \uparrow (4 \uparrow 3))$.
• Now, the expression becomes $7 \downarrow (3 \uparrow (4 \uparrow 3)) \downarrow 2$.
• Next, evaluate the $\downarrow$ operations. Since $\downarrow$ is left-associative, we group from left to right: $((7 \downarrow (3 \uparrow (4 \uparrow 3))) \downarrow 2)$.
• This structure corresponds to option B, where the root is $\downarrow$, its left child is another $\downarrow$ operation, and its right child is 2. The left $\downarrow$ operation has 7 as its left child and $(3 \uparrow (4 \uparrow 3))$ as its right child.

To calculate the speedup, we first determine the total clock cycles for both the interrupt-driven I/O and DMA approaches.

1. Clock Cycles for Interrupt-Driven I/O:

• Initialization (address register, count): 2 non-load/store instructions = 2 cycles.
• Loop (500 iterations):
  • Load byte: 2 cycles.
  • Store byte: 2 cycles.
  • Increment address: 1 cycle.
  • Decrement count: 1 cycle.
  • If count != 0 (branch): 1 cycle.
  • Total per iteration: $2 + 2 + 1 + 1 + 1 = 7$ cycles.
• Total cycles for interrupt-driven I/O: $2 + (500 \times 7) = 2 + 3500 = 3502$ cycles.

2. Clock Cycles for DMA:

• Initialization/Overheads: 20 cycles.
• Data transfer (500 bytes): Each byte transfer takes 2 cycles.
• Total cycles for DMA: $20 + (500 \times 2) = 20 + 1000 = 1020$ cycles.

3. Calculate Speedup:
Speedup is the ratio of execution time of the slower method (interrupt-driven I/O) to the faster method (DMA).
$\text{Speedup} = \frac{\text{Cycles (Interrupt-Driven I/O)}}{\text{Cycles (DMA)}} = \frac{3502}{1020} \approx 3.433$
The approximate speedup is 3.4.

To populate an unlabeled binary tree with $n$ distinct elements such that it becomes a binary search tree, there is only one way. This is because once the root is chosen, all elements smaller than the root must be placed in the left subtree, and all elements larger than the root must be placed in the right subtree. Since the tree structure is fixed (unlabeled but given), and the elements are distinct, the relative ordering completely determines the placement of each element. This recursive partitioning leads to a unique assignment for a given tree structure.

Let's break down the predicate $P(x)$:
$P(x) = \neg (x=1) \wedge \forall y((\exists z(x=y \cdot z)) \Rightarrow (y=x) \vee (y=1))$

The first part, $\neg (x=1)$, means $x$ is not equal to 1.
The second part, $\forall y((\exists z(x=y \cdot z)) \Rightarrow (y=x) \vee (y=1))$, states that for all positive integers $y$, if $y$ is a factor of $x$ (i.e., $x=y \cdot z$ for some integer $z$), then $y$ must be either $x$ itself or 1.

Combining both parts, $P(x)$ is true if $x$ is not 1, and its only positive integer factors are 1 and $x$. This is the definition of a prime number.

We can simplify the integrand using Euler's formula, $e^{ix} = \cos x + i \sin x$.
Therefore, $\frac{\cos x + i \sin x}{\cos x - i \sin x} = \frac{e^{ix}}{e^{-ix}} = e^{ix - (-ix)} = e^{2ix}$.

Now, we need to evaluate the definite integral:
$\int_{0}^{\pi/2} e^{2ix} dx$
The integral of $e^{ax}$ is $\frac{1}{a}e^{ax}$. In this case, $a=2i$.
$\left[\frac{e^{2ix}}{2i}\right]_{0}^{\pi/2}$
Substitute the limits of integration:
$\frac{e^{2i(\pi/2)}}{2i} - \frac{e^{2i(0)}}{2i} = \frac{e^{i\pi}}{2i} - \frac{e^0}{2i}$
Using Euler's formula again, $e^{i\pi} = \cos \pi + i \sin \pi = -1 + 0i = -1$, and $e^0 = 1$.
$\frac{-1}{2i} - \frac{1}{2i} = \frac{-2}{2i} = \frac{-1}{i}$
To simplify $\frac{-1}{i}$, multiply the numerator and denominator by $i$:
$\frac{-1}{i} \times \frac{i}{i} = \frac{-i}{i^2} = \frac{-i}{-1} = i$

The problem describes a process of inserting new records into a table T, starting with (X=1, Y=1). Each new record has X = MX + 1 and Y = 2*MY + 1, where MX and MY are the maximum X and Y values seen so far. We need to find the value of Y when X is 7.

Let's trace the values of X and Y:

1. Initial record: (X=1, Y=1). So, MX=1, MY=1.
2. After 1st insertion (MX=1, MY=1): X = 1+1=2, Y = 2*1+1=3. New record: (2,3). MX=2, MY=3.
3. After 2nd insertion (MX=2, MY=3): X = 2+1=3, Y = 2*3+1=7. New record: (3,7). MX=3, MY=7.
4. After 3rd insertion (MX=3, MY=7): X = 3+1=4, Y = 2*7+1=15. New record: (4,15). MX=4, MY=15.
5. After 4th insertion (MX=4, MY=15): X = 4+1=5, Y = 2*15+1=31. New record: (5,31). MX=5, MY=31.
6. After 5th insertion (MX=5, MY=31): X = 5+1=6, Y = 2*31+1=63. New record: (6,63). MX=6, MY=63.
7. After 6th insertion (MX=6, MY=63): X = 6+1=7, Y = 2*63+1=127. New record: (7,127). MX=7, MY=127.

The query SELECT Y FROM T WHERE X=7; will return the Y value from the record where X is 7. From our trace, when X=7, Y=127.

Let $X = [x_1, x_2, ..., x_n]$ be a sequence of random values with mean $\mu_x$ and standard deviation $\sigma_x$.
A new sequence $Y$ is derived as $y_i = a \cdot x_i + b$, where $a$ and $b$ are positive constants.
The mean of $Y$ is given by $\mu_y = E[Y] = E[aX+b] = aE[X]+b = a\mu_x+b$. So, statement C is correct.
The standard deviation of $Y$ is given by $\sigma_y = SD[Y] = SD[aX+b]$. For a linear transformation, $SD[aX+b] = |a|SD[X] = a\sigma_x$ (since $a$ is positive). So, statement D, which says $\sigma_y = a\sigma_x + b$, is incorrect because the additive constant $b$ does not affect the standard deviation.
The mode represents the most frequent value, and the median represents the middle value. A linear transformation $y_i = a \cdot x_i + b$ (with $a>0$) preserves the relative order and frequency of data points. Therefore, the index position of the mode and median will remain the same. Thus, statements A and B are correct.
