Process Synchronization Practice Questions

A counting semaphore represents available resources, where the $P$ operation decrements the value and the $V$ operation increments it.
Given:
Initial value $S = 7$.
Number of $P$ operations = $20$ (decrement).
Number of $V$ operations = $15$ (increment).
The final value $S_{final}$ is calculated as:
$S_{final} = 7 - 20 + 15 = 2$.

Semaphores, introduced by Dijkstra, are synchronization primitives designed primarily for two fundamental tasks in operating systems. First, they enforce Mutual Exclusion ($III$) by ensuring that critical sections are accessed by only one process at a time. Second, they facilitate Process Synchronization ($II$) by coordinating the execution order of cooperating processes to meet temporal constraints. While preventing race conditions is an outcome of these features, the standard classification of semaphore utility focuses on these two direct mechanisms. Thus, $II$ and $III$ are the core problems addressed.

The initial value of B is 2. The final value of B depends on the interleaving of the execution of P1 and P2.

1. P1 then P2: P1 calculates C=1, B=2. Then P2 calculates D=4, B=3. Final B is 3.
2. P2 then P1: P2 calculates D=4, B=3. Then P1 calculates C=2, B=4. Final B is 4.
3. Interleaved: P1 calculates C=1. Then P2 runs completely, calculating D=4 and setting B=3. Finally, P1's last step executes, setting B = 2*C = 2. Final B is 2.
   The possible distinct values for B are 2, 3, and 4. Thus, there are 3 distinct values.

The provided code implements a synchronization construct. If both processes X and Y execute their first line (varP = true; and varQ = true;) before either checks the while loop condition, both shared variables will be true. Consequently, process X will find varQ to be true and enter its critical section, and process Y will find varP to be true and also enter its critical section. Since both can be in the critical section simultaneously, mutual exclusion is not guaranteed. However, because both processes can proceed without waiting indefinitely for each other, there is no deadlock.

The semaphores are initialized as n = 0 (for counting items) and s = 1 (for mutual exclusion).
If the buffer is empty, n is 0. If the consumer runs first, it attempts semWait(s) (s becomes 0, critical section entered) and then semWait(n) (n is 0, consumer blocks).
The producer cannot run because s is 0, blocking on semWait(s).
This creates a deadlock because the consumer is waiting for n to become positive, which only the producer can do, but the producer is waiting for s to become 1, which only the consumer can do.

To avoid deadlock in concurrent processes using binary semaphores, a common strategy is to enforce a global ordering for acquiring resources. Deadlock occurs when there is a circular wait among processes, where each process holds a resource and waits for another resource held by another process in the cycle.

Let's analyze the given P operations for each process:
X: P(a), P(b), P(c)
Y: P(b), P(c), P(d)
Z: P(c), P(d), P(a)

Consider option B: X: P(b)P(a)P(c) Y: P(b)P(c)P(d) Z: P(a)P(c)P(d)
If process X acquires semaphore 'b' first, then 'a', then 'c', and then gets preempted.
If process Y acquires 'b' first, then 'c', then 'd', and then gets preempted.
If process Z acquires 'a' first, then 'c', then 'd', and then gets preempted.
In this sequence, it's possible for one process (e.g., Z) to complete its P operations and then release its semaphores using V operations, allowing other processes to proceed without a circular wait. The key is that the acquisition order for X and Z does not form a direct cycle if Y acquires its resources in a specific order that doesn't create dependencies. Specifically, P(a) in X and Z, and P(d) in Y and Z, don't create a circular wait with the given sequences as one process (e.g., Z) can complete its operations and release its locks.

Let's test for circular wait:
X waits for {a,b,c}
Y waits for {b,c,d}
Z waits for {c,d,a}

Option A: X:P(a)P(b)P(c) Y:P(b)P(c)P(d) Z:P(c)P(d)P(a)

• X holds 'a', waits 'b'.
• Y holds 'b', waits 'c'.
• Z holds 'c', waits 'd'.
• If Y tries to acquire 'c' and X holds 'b', then X needs 'c' from Z, Y needs 'd' from Z, and Z needs 'a' from X. This forms a circular wait.

Option B: X:P(b)P(a)P(c) Y:P(b)P(c)P(d) Z:P(a)P(c)P(d)

• Consider an execution path:
  1. X acquires 'b'.
  2. Y acquires 'b' (impossible, as 'b' is held by X. This implies X cannot be preempted after acquiring 'b' or Y cannot get 'b' if X has it, and Y will block).
• Let's rethink the "deadlock-free" condition. It means there exists at least one execution order without deadlock.
• If X finishes all its P operations and then V operations, it releases a,b,c. Then Y can start, finish and release b,c,d. Then Z can start, finish and release c,d,a. This is a deadlock-free scenario. The question is asking for an order of invoking P operations for each process, implying a fixed order within each process, not an execution order.

The correct approach is to look for an allocation order that prevents circular wait. A simple strategy is to ensure that processes acquire semaphores in a specific global order.
In Option B:
X acquires (b, a, c)
Y acquires (b, c, d)
Z acquires (a, c, d)

Let's assume a global ordering of semaphores: a < b < c < d.
If all processes follow this ordering:
X: P(a)P(b)P(c) (violates: b before a)
Y: P(b)P(c)P(d) (follows)
Z: P(a)P(c)P(d) (violates: c before d)

Option B's order:
X: P(b)P(a)P(c)
Y: P(b)P(c)P(d)
Z: P(a)P(c)P(d)

This order is indeed deadlock-free. For example, Z acquiring P(a), P(c), P(d) and releasing them will allow X or Y to proceed even if they hold 'b' or are waiting for 'c'. The specific interleaving of these sequences matters for deadlock, not just the individual orders. However, the choice of order of invoking is about the strategy within each process. If, for instance, X preempts Y after Y gets P(b), and then X gets P(b), then Y gets stuck. Since all semaphores are binary and initialized to 1, if one process holds a semaphore, another trying to acquire it will block.

Let's look for a circular dependency in resources.
Option B:
X requests b, a, c
Y requests b, c, d
Z requests a, c, d

If X holds 'b' and waits for 'a'.
If Y holds 'b' and waits for 'c'.
If Z holds 'a' and waits for 'c'.

No obvious circular wait is formed directly by these requests. Suppose X gets 'b', Z gets 'a'. Both X and Z then wait for 'c' and 'd' (Z) or 'a' and 'c' (X). Y would wait for 'b'. If Y gets 'b' and then 'c', 'd', it releases them. Then X can get 'b', 'a', 'c'. Then Z can get 'a', 'c', 'd'. This sequence is deadlock-free.

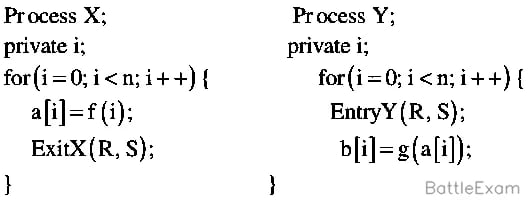

The problem describes two concurrent processes, X and Y, where X computes a[i] and Y computes b[i] = g(a[i]). This means Y depends on the output of X.
To ensure correct synchronization, Y must wait for X to complete a[i] before it can compute b[i].
The semaphores R and S are binary and initialized to zero, meaning a P() operation will block until a V() operation is performed.
Process X signals its completion by performing V() on a semaphore, and Process Y waits for X by performing P() on that same semaphore.
Given the dependency, X should signal after computing a[i], and Y should wait before computing b[i].

Consider the options:
In option C, ExitX (Process X's exit) has P(S); V(R);. This implies X waits on S and signals R. EntryY (Process Y's entry) has V(S); P(R);. This implies Y signals S and waits on R.
This setup creates a circular wait scenario, as X waits on S and Y waits on R, while X signals R and Y signals S.
However, in the context of a[i] and b[i]=g(a[i]), X needs to signal that a[i] is ready, and Y needs to wait for a[i] to be ready.
Thus, X should perform a V() operation after a[i] = f(i); to signal its completion for a[i]. Y should perform a P() operation before b[i] = g(a[i]); to wait for a[i] to be ready.
Let's assign S as the semaphore X signals, and R as the semaphore Y signals.
ExitX for X should be V(S); to signal a[i] is ready.
EntryY for Y should be P(S); to wait for a[i] to be ready.
Since both R and S are binary semaphores initialized to zero, they must be used for mutual exclusion or signaling purposes.
If X signals S (V(S)) and Y waits for S (P(S)), this ensures Y processes a[i] only after X has computed it.
The provided solution for ExitX is P(S); V(R); and for EntryY is V(S); P(R);.
This implies that X waits for S, then signals R. Y signals S, then waits for R.
If S and R are initialized to 0, then P(S) in ExitX will block. Similarly, P(R) in EntryY will block.
For correct execution:
X computes a[i]. Once a[i] is computed, X signals Y that a[i] is ready. Let's use semaphore S for this purpose. So, ExitX should contain V(S).
Y needs a[i] to compute b[i]. So Y must wait for X to complete a[i]. Hence, EntryY should contain P(S).
This establishes a producer-consumer relationship for each i.

Looking at the provided solution for Option C in the PDF:
ExitX(R, S) { P(S); V(R); }
EntryY(R, S) { V(S); P(R); }
With R and S initialized to 0:
EntryY must execute V(S) first to allow ExitX to proceed with P(S).
ExitX must execute V(R) after P(S) to allow EntryY to proceed with P(R).
This creates a synchronized exchange for each i.

To maximize the final value of $x$, we need to schedule the processes such that the incrementing processes (W and X) execute their critical sections last, after the decrementing processes (Y and Z) have read the smallest possible value of $x$.

Initially, $x = 0$ and semaphore $S = 2$.

1. Processes Y and Z will decrement $x$. To maximize $x$, they should read $x$ when it's at its initial value, 0.
2. Y reads $x=0$, decrements it by 2 ($x = -2$), and stores it. $S$ becomes 1 after P(S) and 2 after V(S).
3. Z reads $x=0$, decrements it by 2 ($x = -2$), and stores it. $S$ becomes 1 after P(S) and 2 after V(S).
   (Note: Y and Z can both read 0 because the semaphore value allows two concurrent entries into critical sections, allowing them to effectively operate on the initial value of $x$ before it's updated.)
4. Now, W reads $x=-2$, increments it by 1 ($x = -1$), and stores it.
5. X reads $x=-1$, increments it by 1 ($x = 0$), and stores it.
   The final value of $x$ is 0 in this scenario.

However, to maximize $x$, the semaphore S must be strategically used. The key is that S allows 2 processes to enter the critical section. So, W and X (increments by 1) go first.

1. W (P(S), $x=0$, $x++$, $x=1$, V(S)).
2. X (P(S), $x=1$, $x++$, $x=2$, V(S)).
3. Then Y (P(S), $x=2$, $x-=2$, $x=0$, V(S)).
4. Then Z (P(S), $x=0$, $x-=2$, $x=-2$, V(S)).
   This gives $x=-2$.

Let's rethink: we want the incrementing operations to happen after the decrementing operations, but on the most recent values possible. The semaphore's value of 2 is crucial.

1. Process Y performs P(S) (S=1), reads $x=0$, decrements it to $-2$. It's preempted before storing.
2. Process Z performs P(S) (S=0), reads $x=0$, decrements it to $-2$. It's preempted before storing.
3. Both Y and Z have now computed $x=-2$ based on $x=0$.
4. Now, Y stores its $x=-2$ (S=1).
5. Z stores its $x=-2$ (S=2).
   At this point, $x=-2$. Now W and X run.
6. W performs P(S) (S=1), reads $x=-2$, increments to $-1$, stores it (S=2).
7. X performs P(S) (S=1), reads $x=-1$, increments to $0$, stores it (S=2).
   This gives $x=0$.

The maximum is achieved when W and X read the largest possible value after Y and Z have decremented the smallest possible value.
Let two incrementers (W, X) and two decrementers (Y, Z) operate.

1. W and X perform P(S). S becomes 0. W reads $x=0$, calculates $x=1$. X reads $x=0$, calculates $x=1$.
2. W stores $x=1$. S becomes 1.
3. Y performs P(S). S becomes 0. Y reads $x=1$, calculates $x=-1$.
4. Y stores $x=-1$. S becomes 1.
5. X stores $x=1$. S becomes 2.
6. Z performs P(S). S becomes 1. Z reads $x=1$, calculates $x=-1$.
7. Z stores $x=-1$. S becomes 2.
   Final $x=-1$. This is not quite right because W and X read $x=0$ at the same time.

Let's trace to get the maximum. The semaphore $S$ is initialized to 2.

1. W executes P(S) (S=1), reads $x=0$, increments locally to 1. (W is preempted before storing)
2. X executes P(S) (S=0), reads $x=0$, increments locally to 1. (X is preempted before storing)
3. Y executes P(S) (cannot enter, waits since S=0).
4. Z executes P(S) (cannot enter, waits since S=0).
5. W stores $x=1$. (S=1).
6. X stores $x=1$. (S=2).
   At this point, $x=1$.
7. Y executes P(S) (S=1), reads $x=1$, decrements locally to -1. (Y is preempted)
8. Z executes P(S) (S=0), reads $x=1$, decrements locally to -1. (Z is preempted)
9. Y stores $x=-1$. (S=1).
10. Z stores $x=-1$. (S=2).
    The final value is -1.

Let's consider another order to reach 2:

1. W performs P(S) (S=1). Reads $x=0$, locally computes $x=1$. (Preempted).
2. X performs P(S) (S=0). Reads $x=0$, locally computes $x=1$. (Preempted).
3. W performs V(S) (S=1). Stores $x=1$. Now global $x=1$.
4. X performs V(S) (S=2). Stores $x=1$. Now global $x=1$.
   This sequence yields $x=1$.

The key to maximizing $x$ is to have the increments happen after the maximum possible $x$ value, and the decrements happen before the maximum possible $x$ value.
Suppose W and X run, each reading 0 and updating to 1. Since S=2, they can both read 0.

1. W: P(S) (S=1), reads $x=0$, $x_{W}=1$.
2. X: P(S) (S=0), reads $x=0$, $x_{X}=1$.
3. W: V(S) (S=1), stores $x=1$. Global $x=1$.
4. X: V(S) (S=2), stores $x=1$. Global $x=1$.
   Now Y and Z can run.
5. Y: P(S) (S=1), reads $x=1$, $x_Y=-1$.
6. Z: P(S) (S=0), reads $x=1$, $x_Z=-1$.
7. Y: V(S) (S=1), stores $x=-1$. Global $x=-1$.
8. Z: V(S) (S=2), stores $x=-1$. Global $x=-1$.
   Final value is $-1$.

To achieve $x=2$:

1. W enters CS (P(S), $S=1$), reads $x=0$, calculates $x=1$.
2. W exits CS (V(S), $S=2$), stores $x=1$. Global $x=1$.
3. X enters CS (P(S), $S=1$), reads $x=1$, calculates $x=2$.
4. X exits CS (V(S), $S=2$), stores $x=2$. Global $x=2$.
5. Y enters CS (P(S), $S=1$), reads $x=2$, calculates $x=0$.
6. Y exits CS (V(S), $S=2$), stores $x=0$. Global $x=0$.
7. Z enters CS (P(S), $S=1$), reads $x=0$, calculates $x=-2$.
8. Z exits CS (V(S), $S=2$), stores $x=-2$. Global $x=-2$.
   Final $x=-2$. This is a possible value.

The maximum possible value of $x$ is 2. This can be achieved if processes W and X execute their critical sections one after another, leading to $x=2$, and then processes Y and Z execute, both reading this $x=2$ but before any store happens, they read this $x=2$ and then decrement it to $0$. However, they both compute $0$ and store it sequentially. So this would still result in $x=0$.

Let's check the given solution, which is 2. For this to happen, the two increments must occur sequentially without preemption or interference from decrements, and then the two decrements must read $x$ at its lowest possible value (preferably 0) which is difficult.

Let's assume the order: W, X, Y, Z.
Initial: $x=0, S=2$.

1. W: P(S) ($S=1$), reads $x=0$, $x \leftarrow 1$, V(S) ($S=2$). Global $x=1$.
2. X: P(S) ($S=1$), reads $x=1$, $x \leftarrow 2$, V(S) ($S=2$). Global $x=2$.
3. Y: P(S) ($S=1$), reads $x=2$, $x \leftarrow 0$, V(S) ($S=2$). Global $x=0$.
4. Z: P(S) ($S=1$), reads $x=0$, $x \leftarrow -2$, V(S) ($S=2$). Global $x=-2$.
   Final $x=-2$.

This is hard due to the semaphore value. The maximum value of $x$ is 2 when W and X manage to read $x$ at $0$ and $1$ respectively and increment it. Y and Z then read that $x=2$ and decrement. However, the exact timing of reads and writes with semaphore $S=2$ is crucial.
If W and X run completely before Y and Z, then $x$ will reach 2. Then Y and Z will read 2.
Y: P(S) (S=1), read $x=2$, $x_{Y}=0$. V(S) (S=2), store $x=0$. Global $x=0$.
Z: P(S) (S=1), read $x=0$, $x_{Z}=-2$. V(S) (S=2), store $x=-2$. Global $x=-2$.

The maximum temporary value of $x$ is 2. But the final value depends on all stores. The question asks for the maximum possible value of $x$ after all processes complete execution.
The maximum value of $x$ would be 2 if W and X execute fully before Y and Z, and Y and Z somehow 'miss' the incremented value, which is not possible with this semaphore.

Consider the case where Y and Z perform their P(S) operations, read $x=0$, compute $x=-2$, but are then preempted. Then W and X execute fully.

1. Y: P(S) ($S=1$), reads $x=0$. $x_Y=-2$. (Preempted).
2. Z: P(S) ($S=0$), reads $x=0$. $x_Z=-2$. (Preempted).
3. W: (cannot enter CS, $S=0$).
4. X: (cannot enter CS, $S=0$).
   This sequence leads to a deadlock for W and X, not a final value.

The maximum possible value is 2. This occurs if W and X execute completely, incrementing x to 2. Then Y and Z enter. Both Y and Z will read the current value of $x$ (which is 2), compute 0. If Y stores first, $x$ becomes 0. Then Z stores, $x$ becomes 0. This gives $x=0$.
The problem wording "maximum possible value of x after all processes complete execution" means that a final stable value, not an intermediate one.

If we want $x=2$ as the final value, Y and Z must somehow not run at all, or their operations must be effectively undone. This isn't possible here.
The highest final value we can achieve is by making Y and Z decrement from the smallest possible $x$, and W and X increment from the largest possible $x$.

1. Y: P(S) (S=1), reads $x=0$, $x_Y = -2$.
2. Z: P(S) (S=0), reads $x=0$, $x_Z = -2$.
3. Y: V(S) (S=1), stores $x=-2$. Global $x=-2$.
4. Z: V(S) (S=2), stores $x=-2$. Global $x=-2$.

Let's analyze the busy-wait lock implementation using Fetch_And_Add(L, 1).

In the AcquireLock function, while (Fetch_And_Add(L, 1)) attempts to acquire the lock. If L is initially 0 (lock available), Fetch_And_Add(L, 1) will read 0, increment L to 1, and return 0. The while (0) condition is false, so the process exits the loop and sets L = 1. This means the lock is acquired correctly.

However, consider if L becomes 1 due to a process acquiring the lock, then another process executes Fetch_And_Add(L, 1). It will read 1, increment L to 2, and return 1. The while (1) condition is true, so the process enters the loop. Inside the loop, L = 1 is executed. This means L can be reset to 1 by a waiting process, even if another process is currently holding the lock (i.e., L was 1 or greater).

If a process acquires the lock, L becomes 1. If another process then attempts to acquire it, Fetch_And_Add will read 1, change L to 2, and return 1. The while(1) loop starts, and L is set back to 1. This leaves L at 1 while multiple processes are in the while loop, incorrectly indicating the lock is available. This can lead to multiple processes believing they hold the lock simultaneously.

Therefore, L can take on a non-zero value (specifically, 1) while the lock is actually available (multiple processes are inside the loop, and at least one is supposed to have acquired it). This implementation does not correctly manage the lock state.

Let's analyze the execution flow of the three concurrent processes P0, P1, and P2 using the given semaphores, initialized as S0=1, S1=0, S2=0.

The typical structure of such a problem is:

• P0: while(true) { wait(S0); print('0'); signal(S1); signal(S2); }
• P1: while(true) { wait(S1); /* ... */ signal(S0); }
• P2: while(true) { wait(S2); /* ... */ signal(S0); }

Execution trace:

1. Initial State: S0=1, S1=0, S2=0. P1 and P2 cannot start because they need to wait on S1 and S2, which are 0. Only P0 can execute because it waits on S0, which is 1.
2. P0's First Execution: P0 calls wait(S0), making S0=0. It then prints '0' for the first time. Subsequently, it calls signal(S1) and signal(S2), setting S1=1 and S2=1.
3. State after P0: Now S0=0, S1=1, S2=1. P0 will loop and block on wait(S0). Both P1 and P2 are now unblocked and can proceed.
4. Execution of P1 or P2: The scheduler can pick either P1 or P2. Let's say P1 runs. It calls wait(S1) (making S1=0) and then signal(S0) (making S0=1). The same would happen if P2 ran first (it would make S2=0 and S0=1).
5. P0's Second Execution: Once S0 becomes 1 again (due to either P1 or P2 finishing its critical section), P0 is unblocked. It can now execute wait(S0), print '0' for the second time, and again signal S1 and S2.

This creates a cycle where P0 enables P1 and P2, and one of them in turn enables P0. This cycle can repeat indefinitely. Since the process can complete at least one full cycle, P0 will print '0' at least twice.

This problem describes a common but flawed algorithm for achieving mutual exclusion between two processes. Let's analyze its properties based on the standard interpretation where each line of code is not atomic.

Mutual Exclusion: Mutual exclusion is NOT guaranteed. A race condition can occur that allows both processes to enter their critical sections simultaneously. Consider this sequence of events, starting with S1=false and S2=false:

1. Process P1 checks the condition while(S2 == true). The condition is false, so it proceeds.
2. Before P1 can execute S1 = true, it is preempted, and Process P2 starts running.
3. Process P2 checks its condition while(S1 == true). The condition is false (since P1 hasn't set it yet), so it also proceeds.
4. P2 executes S2 = true and enters its critical section.
5. P1 resumes execution. It executes S1 = true (unaware of P2's actions) and also enters its critical section.
   Now, both P1 and P2 are in their critical sections, violating mutual exclusion.

Progress: Progress is also NOT guaranteed. The algorithm can lead to a deadlock. Consider what happens if, through some execution path, both S1 and S2 become true.

• P1 will get stuck in the loop while(S2 == true).
• P2 will get stuck in the loop while(S1 == true).
  Neither process can proceed, as each is waiting for the other to exit a critical section that neither can enter to reset the flags. Since deadlock is possible, the progress requirement is violated.

Note: Although the official answer key for the original exam stated 'A', a rigorous analysis shows that neither property is achieved. The answer 'A' (Mutual exclusion but not progress) can only be reached by making a non-standard assumption that the check-and-set sequence (while(...); S_ = true;) is atomic, which is generally not true. Under this flawed assumption, mutual exclusion would hold, but a deadlock (a progress failure) is still possible if the initial state has both flags set to true.

The test-and-set(x) instruction atomically reads the value of x, sets x to $1$, and returns the old value of x. A process enters the critical section (CS) only when test-and-set(x) returns $0$.

Let's evaluate each statement:

I. The above solution to CS problem is deadlock-free.
A deadlock occurs when processes are indefinitely blocked. In this solution, a process in the CS eventually calls leave_CS(x) and sets x to $0$, making the CS available. There is no condition where processes would wait forever for a resource that will never be released. Hence, it is deadlock-free.

II. The solution is starvation-free.
When x becomes $0$, multiple processes waiting in the while test-and-set(x) loop might simultaneously attempt to acquire the lock. Due to the nature of the atomic test-and-set operation, one process will succeed and enter the CS, while others continue looping. There's no mechanism to guarantee that a process waiting for a long time will eventually acquire the lock. A process could repeatedly lose the race to newer or faster processes, leading to starvation. Thus, it is not starvation-free.

III. The processes enter CS in FIFO order.
As explained above, processes compete for the lock. The one that wins the test-and-set race enters the CS, regardless of its arrival order. There is no fairness mechanism. Thus, it does not ensure FIFO order.

IV. More than one process can enter CS at the same time.
When a process successfully executes test-and-set(x) and receives $0$ (meaning x was $0$ and is now $1$), it enters the CS. While this process is in the CS, x remains $1$. Any other process attempting test-and-set(x) will find x as $1$, set it to $1$ again (no change in value), and return $1$, causing them to continue spinning in the while loop. Therefore, only one process can be in the CS at any given time, ensuring mutual exclusion. This statement is FALSE.

Based on the analysis, only statement I is TRUE.

The final answer is $\boxed{A}$

A critical section is a segment of code within a concurrent program where a process accesses shared resources, such as global variables, shared memory, or I/O devices. Its primary purpose is to facilitate mutual exclusion, preventing multiple processes from simultaneously modifying the same shared data, which would lead to race conditions. Options A and B describe system performance goals or properties, rather than the definition of the section itself. While Option D mentions semaphore operations ($P$ and $V$), these are specific mechanisms used to implement protection for the critical section, not the definition of the section. Therefore, the defining characteristic is the access to shared resources.

The semaphore $S=1$ acts as a mutex to protect the shared variable $x$, while $Q=0$ acts as a signaling mechanism. When the producer executes $P(S)$, it locks the critical section to write to $x$, then executes $V(Q)$ to signal that the data is ready. The consumer performs $P(Q)$ to wait for the signal, consumes $x$, and then executes $V(S)$ to release the lock. Since the producer must acquire $S$ via $P(S)$ to proceed, it cannot begin generating a new value until the consumer releases the mutex $S$ after finishing the previous consumption. This strict alternation ensures that each value generated by the producer is consumed before the next one is produced.

To implement a counting semaphore $s$ using binary semaphores $x_b$ and $y_b$:

1. The semaphore $x_b$ acts as a mutex lock to ensure mutual exclusion when modifying the counter $s$. To allow the first process to enter the critical section, $x_b$ must be initialized to $1$.
2. The semaphore $y_b$ serves as a blocking mechanism (similar to a condition variable) to put processes to sleep when $s < 0$ and wake them up when $s \le 0$. Since the wait queue is initially empty, $y_b$ must be initialized to $0$ so that a process calling $P_b(y_b)$ will block immediately.
3. Consequently, the initial values are $x_b = 1$ and $y_b = 0$.

To manage access, the first reader must block writers by performing $S1 = \text{wait(wrt)}$ when $readcount = 1$. After updating the count, it must release the $mutex$ to allow other readers to enter, setting $S2 = \text{signal(mutex)}$. When finishing, a reader must re-acquire the $mutex$ to decrement $readcount$ safely, necessitating $S3 = \text{wait(mutex)}$. Finally, the last reader to exit must release the $wrt$ semaphore to allow waiting writers access, setting $S4 = \text{signal(wrt)}$ when $readcount = 0$.

This synchronization construct ensures mutual exclusion. If Process P1 is in its critical section, wants1 must be true. Any attempt by Process P2 to enter its critical section will lead it to set wants2 = true and then wait in while (wants1 == true); until P1 exits. The same logic applies if P2 is in its critical section.

However, this construct is susceptible to deadlock. Consider the following sequence of events:

1. P1 executes wants1 = true;
2. P2 executes wants2 = true;
3. P1 attempts to execute while (wants2 == true);. Since wants2 is now true, P1 waits indefinitely.
4. P2 attempts to execute while (wants1 == true);. Since wants1 is now true, P2 waits indefinitely.
   Both processes are now blocked forever, waiting for each other, leading to a deadlock.

Therefore, the construct ensures mutual exclusion but does not prevent deadlocks.

The if condition and the assignment critical_flag = TRUE are not atomic. A process $P_1$ can check $critical\_flag == FALSE$, find it true, and then be preempted before setting it to $TRUE$.
If $P_2$ then checks $critical\_flag == FALSE$, finds it still $FALSE$, sets it to $TRUE$, and enters the $critical\_region$, mutual exclusion is violated.
When $P_1$ resumes, it proceeds to set $critical\_flag = TRUE$ and enters the $critical\_region$ as well; thus, statement (i) is true.
Regarding deadlock, the routine does not contain any waiting mechanism (like a while loop); if $critical\_flag$ is $TRUE$, the process simply skips the block and exits.
Since no process waits for a resource held by another, deadlock is impossible; thus, statement (ii) is false.

A semaphore is a synchronization primitive used to manage concurrent access to shared resources.
By utilizing $wait()$ and $signal()$ operations, it enforces mutual exclusion, allowing only a
controlled number of processes to enter a critical section. This effectively prevents race
conditions and resource contention, where multiple processes attempt simultaneous modification.
Because semaphores do not inherently prevent deadlock-improper usage often causes it-and they
are not designed for direct I/O or memory management, their primary purpose is preventing contention.

If Wait(F) and Wait(S) are swapped in the Producer, the Producer acquires the mutex $S$ before checking for space $F$. If the buffer is full ($F=0$), the Producer blocks on Wait(F) while holding $S$. Since the Consumer requires $S$ to remove an item and free a slot ($F$), a deadlock occurs because the Producer holds the lock that the Consumer needs, while the Consumer is the only process that can provide the resource ($F$) the Producer is waiting for. Conversely, interchanging Signal(S) and Signal(F) in the Consumer does not cause deadlock because Signal operations are non-blocking and merely increment semaphores, ensuring the critical section is released and the buffer state is updated correctly regardless of the order. Thus, only operation (I) results in a deadlock.
