GATE CSE · Computer Organization Architecture
Master topic for Pipeline Processor. Includes Pipelining, Performance & Parallelism.
110 questions · 20 PYQs · 0 AI practice · GATE CSE 2027
Consider a 3GHz (gigahertz) processor with a three-stage pipeline and stage latencies , , and such that . If the longest pipeline stage is split into two pipeline stages of equal latency, the new frequency is _____GHz, ignoring delays in the pipeline registers.
Consider a non-pipelined processor with a clock rate of 2.5 gigahertz and average cycles per instruction of four. The same processor is upgraded to a pipelined processor with five stages; but due to the internal pipeline delay, the clock speed is reduced to 2 gigahertz. Assume that there are no stalls in the pipeline. The speedup achieved in this pipelined processor is
Register renaming is done in pipelined processors:
The dynamic hazard problem occurs in

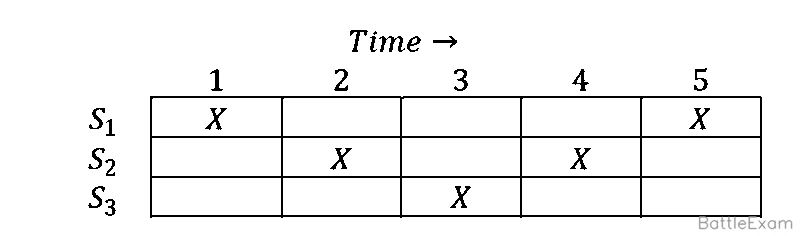

Consider the following reservation table for a pipeline having three stages S1,S2 and S3. The minimum average latency (MAL) is ________.
Consider the following code sequence having five instructions I1 to I5. Each of these instructions has the following format. OP Ri, Rj, Rk where operation OP is performed on contents of registers Rj and Rk and the result is stored in register Ri. I1: ADD R1, R2, R3 I2: MUL R7, R1, R3 I3: SUB R4, R1, R5 I4: ADD R3, R2, R4 I5: MUL R7, R8, R9 Consider the following three statements. S1: There is an anti-dependence between instructions l2 and l5 S2: There is an anti-dependence between instructions l2 and l4 S3: Within an instruction pipeline an anti-dependence always creates one or more stalls Which one of above statements is/are correct?
Consider a non-pipelined processor with a clock rate of 2.5 gigahertz and average cycles per instruction of four. The same processor is upgraded to a pipelined processor with five stages; but due to the internal pipeline delay, the clock speed is reduced to 2 gigahertz. Assume that there are no stalls in the pipeline. The speed up achieved in this pipelined processor is_________.
Consider the sequence of machine instructions given below: MUL R5, R0, R1 DIV R6, R2, R3 ADD R7, R5, R6 SUB R8, R7, R4 In the above sequence, R0 to R8 are general purpose registers. In the instructions shown, the first register stores the result of the operation performed on the second and the third registers. This sequence of instructions is to be executed in a pipelined instruction processor with the following 4 stages: (1) Instruction Fetch and Decode (IF), (2) Operand Fetch (OF), (3) Perform Operation (PO) and (4) Write back the result (WB). The IF, OF and WB stages take 1 clock cycle each for any instruction. The PO stage takes 1 clock cycle for ADD or SUB instruction, 3 clock cycles for MUL instruction and 5 clock cycles for DIV instruction. The pipelined processor uses operand forwarding from the PO stage to the OF stage. The number of clock cycles taken for the execution of the above sequence of instructions is ___________.
Consider the following processors (ns stands for nanoseconds). Assume that the pipeline registers have zero latency. P1: Four-stage pipeline with stage latencies 1 ns, 2 ns, 2 ns, 1 ns. P2: Four-stage pipeline with stage latencies 1 ns, 1.5 ns, 1.5 ns, 1.5 ns. P3: Five-stage pipeline with stage latencies 0.5 ns, 1 ns, 1 ns, 0.6 ns, 1 ns. P4: Five-stage pipeline with stage latencies 0.5 ns, 0.5 ns, 1 ns, 1 ns, 1.1 ns. Which processor has the highest peak clock frequency?
Consider a 6-stage instruction pipeline, where all stages are perfectly balanced. Assume that there is no cycle-time overhead of pipelining. When an application is executing on this 6-stage pipeline, the speedup achieved with respect to non-pipelined execution if 25% of the instructions incur 2 pipeline stall cycles is _________.
An instruction pipeline has five stages, namely, instruction fetch (IF), instruction decode and register fetch (ID/RF), instruction execution (Ex), memory access (MEM), and register write back (WB) with stage latencies 1 ns, 2.2 ns, 2 ns, 1 ns, and 0.75 ns, respectively (ns stands for nanoseconds). To gain in terms of frequency, the designers have decided to split the ID/RF stage into three stages (ID, RF1, RF2) each of latency 2.2/3 ns. Also, the Ex stage is split into two stages (Ex1, Ex2) each of latency 1 ns. The new design has a total of eight pipeline stages. A program has 20% branch instructions which execute in the Ex stage and produce the next instruction pointer at the end of the Ex stage in the old design and at the end of the Ex2 stage in the new design. The IF stage stalls after fetching a branch instruction until the next instruction pointer is computed. All instructions other than the branch instruction have an average CPI of one in both the designs. The execution times of this program on the old and the new design are P and Q nanoseconds, respectively. The value of P/Q is __________
A pipeline P operating at 400 MHz has a speedup factor of 6 and operating at 70% efficiency. How many stages are there in the pipeline?
Consider an instruction pipeline with five stages without any branch prediction: Fetch Instruction (FI), Decode Instruction (DI), Fetch Operand (FO), Execute Instruction (EI) and Write Operand (WO). The stage delays for FI, DI, FO, EI and WO are 5 ns, 7 ns, 10 ns, 8 ns and 6 ns, respectively. There are intermediate storage buffers after each stage and the delay of each buffer is 1 ns. A program consisting of 12 instructions I1, I2, I3,..., I12 is executed in this pipelined processor. Instruction I4 is the only branch instruction and its branch target is I9. If the branch is taken during the execution of this program, the time (in ns) needed to complete the program is
Register renaming is done in pipelined processors

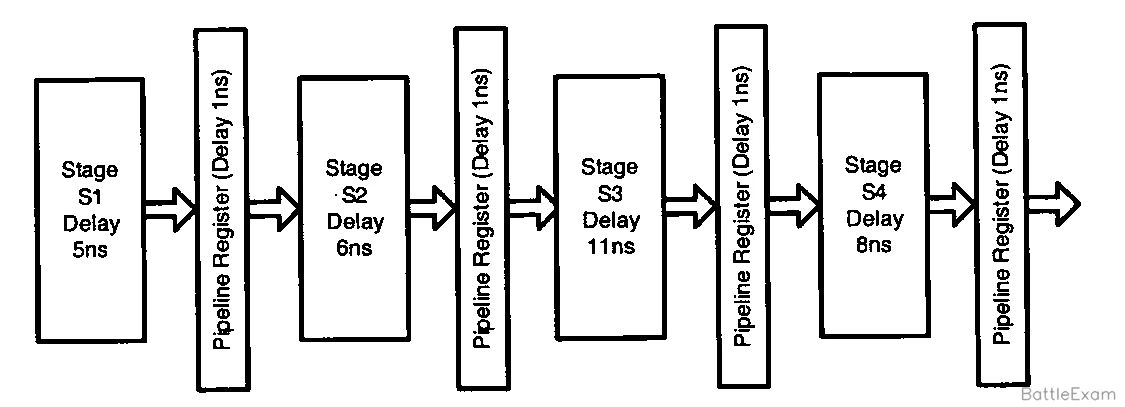

Consider an instruction pipeline with four stages (S1, S2, S3 and S4) each with combinational circuit only. The pipeline registers are required between each stage and at the end of the last stage. Delays for the stages and for the pipeline registers are as given in the figure. What is the approximate speed up of the pipeline in steady state under ideal conditions when compared to the corresponding non-pipeline implementation?
If a microcomputer operates at 5 MHz with an 8-bit bus and a newer version operates at 20 MHz with a 32-bit bus, the maximum speed-up possible approximately will be
A processor takes 12 cycles to complete an instruction I. The corresponding pipelined processor uses 6 stages with the execution times of 3,2,5,4,6 and 2 cycles respectively. What is the asymptotic speedup assuming that a very large number of instructions are to be executed?
A 5-stage pipelined processor has Instruction Fetch (IF), Instruction Decode (ID), Operand Fetch (OF), Perform Operation (PO) and Write Operand (WO) stages. The IF, ID, OF and WO stages take 1 clock cycle each for any instruction. The PO stage takes 1 clock cycle for ADD and SUB instructions, 3 clock cycles for MUL instruction, and 6 clock cycles for DIV instruction respectively. Operand forwarding is used in the pipeline. What is the number of clock cycles needed to execute the following sequence of instructions?
Consider a 4 stage pipeline processor. The number of cycles needed by the four instructions I1, I2, I3, I4 in stages S1, S2, S3, S4 is shown below: What is the number of cycles needed to execute the following loop? For (i=1 to 2) {I1; I2; I3; I4;}
Consider a pipelined processor with the following four stages: IF: Instruction Fetch ID: Instruction Decode and Operand Fetch EX: Execute WB: Write Back The IF, ID and WB stages take one clock cycle each to complete the operation. The number of clock cycles for the EX stage depends on the instruction. The ADD and SUB instructions need 1 clock cycle and the MUL instruction needs 3 clock cycles in the EX stage. Operand forwarding is used in the pipelined processor. What is the number of clock cycles taken to complete the following sequence of instructions?
