Runtime Environment Practice Questions

Understanding where C stores different types of data is crucial. The main memory areas are the stack, the heap, and the static/global data segment. The Heap is a region for dynamic memory allocation, requiring explicit request (e.g., using $malloc()$, $calloc()$) and release (e.g., using $free()$). A static variable declared inside a function goes into the static/global data segment. An array of integers declared inside a function is typically on the stack. The return address of a function is stored on the stack. Therefore, only a dynamically allocated array of integers created using $malloc()$ is stored in the heap.

To determine the set of live variables at the exit point of each basic block, we use the data-flow equations $LiveIn(B) = Use(B) \cup (LiveOut(B) - Def(B))$ and $LiveOut(B) = \bigcup_{S \in Succ(B)} LiveIn(S)$.
The sets are: $Def(B1)=\{a\}, Use(B1)=\{b,c\}$; $Def(B2)=\{d\}, Use(B2)=\{a,e\}$; $Def(B3)=\{e\}, Use(B3)=\{a,f\}$; $Def(B4)=\{g\}, Use(B4)=\{d,e\}$.

1. $LiveOut(B4) = \emptyset$, so $LiveIn(B4) = \{d, e\}$.
2. $LiveOut(B2) = LiveIn(B4) = \{d, e\}$, so $LiveIn(B2) = \{a, e\} \cup (\{d, e\} - \{d\}) = \{a, e\}$.
3. $LiveOut(B3) = LiveIn(B1)$, and $LiveIn(B3) = \{a, f\} \cup (LiveOut(B3) - \{e\})$.
4. Through iteration to fixed point, we find $LiveIn(B1) = \{b, c, e, f\}$. Consequently, $LiveOut(B3) = \{b, c, e, f\}$.
5. Finally, $LiveOut(B1) = LiveIn(B2) \cup LiveIn(B3) = \{a, e\} \cup \{a, b, c, f\} = \{a, b, c, e, f\}$.
   This matches the provided sets: $B1: \{a, b, c, e, f\}, B2: \{d, e\}, B3: \{b, c, e, f\}, B4: \emptyset$.

Live variables at the exit point of a basic block are those variables whose values are used in subsequent blocks before being redefined. We work backward from the EXIT block.
EXIT: No variables are live.
B4: i = a + 1. a is used, i is defined. i is live if used later. a is live if used later.
OUT(B4) = IN(EXIT) = {}.
IN(B4) = USE(B4) \cup (OUT(B4) - DEF(B4)) = \{a\} \cup ({} - \{i\}) = \{a\}.
B2: i = i + 1, j = j - 1. i and j are used and defined.
OUT(B2) = IN(B4) = \{a\}.
IN(B2) = USE(B2) \cup (OUT(B2) - DEF(B2)) = \{i, j\} \cup (\{a\} - \{i, j\}) = \{a, i, j\}.
B3: a = 20. a is defined.
OUT(B3) = IN(B2) = \{a, i, j\}.
IN(B3) = USE(B3) \cup (OUT(B3) - DEF(B3)) = \{\} \cup (\{a, i, j\} - \{a\}) = \{i, j\}.
B1: i = m - 1, j = n, a = 10. m, n are used, i, j, a are defined.
OUT(B1) = IN(B2) \cup IN(B3) = \{a, i, j\} \cup \{i, j\} = \{a, i, j\}.
IN(B1) = USE(B1) \cup (OUT(B1) - DEF(B1)) = \{m, n\} \cup (\{a, i, j\} - \{a, i, j\}) = \{m, n\}.
The question asks for live variables at the exit point (OUT set) of each block.
OUT(B1) = \{a, i, j\}
OUT(B2) = \{a, j\} (since i is redefined in B2, it's not live out if only a is used in B4)
OUT(B3) = \{a, j\} (since a is redefined in B3, it's not live out if only j is used in B2)
OUT(B4) = \{a, i, j\} (since i is defined in B4, it's not live out if only a is used in EXIT)

Re-evaluating based on the provided solution's OUT sets:
OUT(B4) = IN(EXIT) = {}.
IN(B4) = \{a\}.
OUT(B2) = IN(B4) = \{a\}.
IN(B2) = \{i, j\} \cup (\{a\} - \{i, j\}) = \{a, i, j\}.
OUT(B3) = IN(B2) = \{a, i, j\}.
IN(B3) = \{\} \cup (\{a, i, j\} - \{a\}) = \{i, j\}.
OUT(B1) = IN(B2) \cup IN(B3) = \{a, i, j\} \cup \{i, j\} = \{a, i, j\}.

The solution's OUT sets are:
B1: {a, i, j}
B2: {a, j}
B3: {a, j}
B4: {a, i, j}

Let's trace the variables:
i is used in B2, so it's live into B2. i is defined in B1, so it's live out of B1.
j is used in B2, so it's live into B2. j is defined in B1, so it's live out of B1.
a is used in B4, so it's live into B4. a is defined in B3, so it's live out of B3. a is defined in B1, so it's live out of B1.

Consider the path B1 -> B2 -> B4 -> EXIT.
OUT(B4): i is defined in B4, a is used in B4. i is not live out. a is not live out. So OUT(B4) = {}.
IN(B4) = \{a\}.
OUT(B2): i and j are defined in B2. a is not defined. IN(B4) is $\{a\}$. So OUT(B2) = \{a\}.
IN(B2) = \{i, j\} \cup (\{a\} - \{i, j\}) = \{a, i, j\}.
OUT(B3): a is defined in B3. IN(B2) is $\{a, i, j\}$. So OUT(B3) = \{i, j\}.
IN(B3) = \{\} \cup (\{i, j\} - \{a\}) = \{i, j\}.
OUT(B1): i, j, a are defined in B1. IN(B2) is $\{a, i, j\}$, IN(B3) is $\{i, j\}$. So OUT(B1) = IN(B2) \cup IN(B3) = \{a, i, j\}.
IN(B1) = \{m, n\} \cup (\{a, i, j\} - \{a, i, j\}) = \{m, n\}.

The provided solution's OUT sets are:
B1: {a, i, j}
B2: {a, j}
B3: {a, j}
B4: {a, i, j}

Let's re-evaluate the OUT sets based on the provided solution's final answer.
OUT(B4): i is defined in B4. a is used in B4. If i is live out of B4, it must be used after B4. If a is live out of B4, it must be used after B4. The solution states OUT(B4) = {a, i, j}. This implies i and j are live out of B4.
OUT(B3): a is defined in B3. OUT(B3) = {a, j}. This implies j is live out of B3.
OUT(B2): i and j are defined in B2. OUT(B2) = {a, j}. This implies a and j are live out of B2.
OUT(B1): i, j, a are defined in B1. OUT(B1) = {a, i, j}. This implies a, i, j are live out of B1.

The solution's table for OUT values:
B1: {a, i, j}
B2: {a, j}
B3: {a, j}
B4: {a, i, j}
This matches option D.

The sequence of procedure calls in an activation tree corresponds to a preorder traversal, where a parent procedure is called before its child procedures. Thus, S1 is true.
The sequence of procedure returns corresponds to a postorder traversal, as a parent procedure can only return after all its child procedures have completed and returned. Therefore, S2 is true.
Both statements S1 and S2 are correct.

In liveness analysis, for a basic block consisting of statements $S_1$ followed by $S_2$, the variables live at the exit of $S_1$ are precisely the variables live at the entry of $S_2$. This is because any variable that is live after $S_1$ must be used in $S_2$ or any subsequent statements reachable from $S_2$. Therefore, the set of variables live at the exit of $S_1$, denoted as $OUT(S_1)$, is equal to the set of variables live at the entry of $S_2$, denoted as $IN(S_2)$.

Static type checking verifies data types at compile-time, whereas dynamic type checking performs these checks during program execution. Option A and B are correct because dynamic checking introduces runtime overhead for increased flexibility. Option C is correct as dynamic errors manifest only during execution. Option D is incorrect because dynamic type checking occurs at runtime, not during compilation, making the statement fundamentally false. Therefore, D is the only incorrect comparison provided.

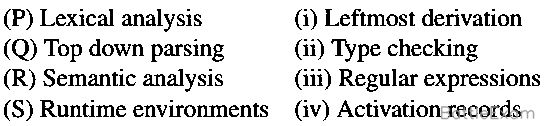

This question matches concepts from compiler design phases with their corresponding techniques or artifacts.
(P) Lexical analysis involves scanning the input text and grouping characters into tokens. This process is modeled using regular expressions.
(Q) Top-down parsing, such as LL parsing, constructs a parse tree from the root down, which corresponds to a leftmost derivation of the string.
(R) Semantic analysis checks for meaning-related errors, a key part of which is type checking to ensure operators are applied to compatible operands.
(S) Runtime environments manage the program's execution state, using activation records (stack frames) for function calls.
This corresponds to P-iii, Q-i, R-ii, S-iv.

During the $Pass_1$ of a two-pass assembler, the system performs foundational tasks to prepare for machine code generation. First, it validates that instructions adhere to the architecture's defined syntax and opcode rules (Option A). Second, it identifies literals encountered in the source code and allocates necessary space for their storage (Option B). Third, it processes all label definitions to construct the symbol table, assigning specific memory addresses to every symbol (Option C). Since these activities are all standard and necessary requirements of the initial scanning phase, the

Here's a step-by-step explanation for the given question:

1. Analyze Statement 1: Static allocation assigns memory at compile time. Recursion requires a new set of local variables and parameters for each function call, which cannot be managed with static allocation because the number of active calls is not known at compile time. Thus, static allocation makes recursion impossible.
2. Analyze Statement 2: Automatic garbage collection handles memory deallocation for objects on the heap that are no longer referenced. While useful for memory management, it is not essential for implementing recursion. Recursion primarily relies on the stack for activation records.
3. Analyze Statement 3: Dynamic allocation of activation records means memory is allocated at runtime for each function call (specifically on the stack). This is crucial for recursion as it allows each recursive call to have its own separate execution context.
4. Analyze Statement 4: Recursion primarily uses the stack for activation records. The heap is used for dynamic data structures that might persist beyond a function call, but it is not essential for the fundamental mechanism of recursion itself.

Based on this analysis, statements 1 and 3 are correct.

Compilation involves several stages that transform source code into executable code. Let's analyze each option:

• Type checking: This is a crucial phase during compilation (specifically, semantic analysis) where the compiler verifies that the types of variables and expressions are used consistently and correctly according to the language rules.
• Symbol table management: Throughout compilation, a symbol table is maintained to store information about identifiers (variables, functions, etc.), their types, scopes, and memory locations. This is essential for various compilation phases.
• Inline expansion: This is a compiler optimization technique where a function call is replaced by the body of the function itself. This occurs during the optimization phase of compilation.
• Dynamic memory allocation: This refers to memory allocation that happens at runtime, when the program is executing, not during the compilation phase. Compilers generate instructions for dynamic allocation (e.g., malloc or new), but the actual allocation takes place when the program runs.

Therefore, dynamic memory allocation is not performed during compilation but rather by the compiled program at runtime.

An activation record, or stack frame, is a data structure residing on the call stack that manages the state of a specific subroutine call. It typically holds the return address (B), storage for local variables (A), and references (like static or dynamic links) required to access non-local variables (D). The heap, conversely, is a distinct memory pool used for dynamic data allocation (e.g., memory allocated via $malloc$ or $new$) that persists independently of individual function calls. Therefore, the heap area is not contained within an activation record.

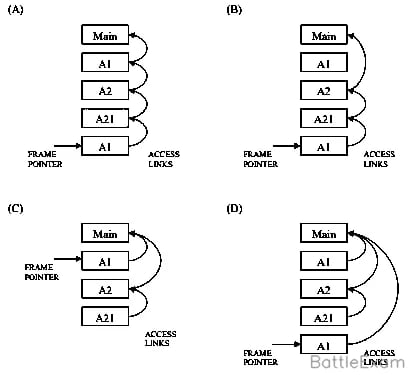

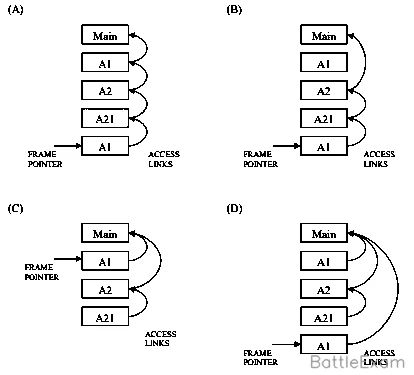

Lexical scoping determines access to non-local variables based on the program text, not the call sequence. Access links point from an activation record to the activation record of its lexically enclosing (parent) scope.

1. Main: Lexically encloses A1 and A2.
2. A1: Lexically enclosed by Main.
3. A2: Lexically enclosed by Main, and lexically encloses A21.
4. A21: Lexically enclosed by A2.

For the calling chain Main -> A1 -> A2 -> A21 -> A1:

• The first A1 call's access link points to Main.
• The A2 call's access link points to Main.
• The A21 call's access link points to A2.
• The second A1 call's access link points to Main (its lexical parent).

Following these rules, Option D correctly illustrates the access links.

In compiler optimization, reduction in strength is a technique that replaces a computationally expensive operation with a simpler, equivalent one to enhance performance. For instance, replacing an operation like $i * 2$ inside a loop with the addition $i + i$ or a bitwise shift $i << 1$ typically reduces the number of required CPU cycles. Unlike constant folding (A), loop invariant code motion (B), or common subexpression elimination (C), this specific optimization focuses on minimizing the instruction cost. Therefore, it involves substituting costly operations with relatively cheaper alternatives.

Languages that allow for dynamic data structures, such as linked lists and trees, necessarily require heap allocation. The size of these structures is not known at compile time and can change during program execution. Memory for the individual nodes of these structures must be allocated dynamically. This memory is allocated on the heap because its lifetime is not tied to the scope of any particular function call; a node created in one function may need to persist long after that function has returned. In contrast, recursion is managed by the stack, and global variables are stored in a static memory region.

I. False: Recursion requires dynamic storage allocation to handle multiple activation records, making static allocation impossible.
II. True: Access links or displays are necessary to access non-local variables in lexically nested procedures.
III. False: Recursion is fundamentally implemented using dynamic storage allocation (typically a stack).
IV. False: Nesting and recursion are standardly implemented using a stack-based allocation scheme; a heap is not strictly required.
V. True: Returning functions (closures) requires maintaining the environment (activation record) beyond the function's scope, which a simple stack-based discipline cannot support without special mechanisms.

In a resident OS, core components responsible for process management must reside in main memory to maintain system availability. Utilities such as the Assembler, Compiler, and Linker are language processing tools used during the development phase and are not required to be resident in memory during normal system operation. Conversely, the Loader is a fundamental OS component responsible for moving executable programs from secondary storage into main memory to initiate execution. Since the operating system must be capable of launching new processes at any given time, the Loader must always reside in main memory.

Structural statements, such as struct or union definitions, act as templates for data organization and memory layout rather than sequences of operations. These definitions are processed entirely during the compilation phase to assist the compiler in determining data sizes and access offsets. Unlike assignment or I/O statements, which translate into runtime machine instructions like $MOV$ or system calls, structural statements require no CPU execution. They function as metadata for the program's memory structure and are resolved by the compiler before binary generation. Consequently, they produce no executable machine code in the final output.

A compiler translates the entire source code into machine code before execution, allowing the CPU to execute instructions directly with significant optimization. In contrast, an interpreter reads and translates source code line-by-line at runtime, which requires parsing and instruction analysis during every execution step. This continuous overhead makes the interpretation process inherently slower than executing pre-compiled machine code. Therefore, relative to the program translated by a compiler, the same program when interpreted runs slower.

Static scope allows variable-to-binding resolution at compile time, facilitating early bindings. Dynamic scope relies on the execution call chain to determine bindings, necessitating late bindings. Since early bindings are resolved before program execution, they reduce runtime overhead and increase execution efficiency. Conversely, late bindings perform lookups during execution, which introduces overhead and decreases execution efficiency. Thus, the correct sequence is Early, late, increase, decrease.

When source modules $M1$ and $M2$ are compiled independently, the compiler produces separate object files containing unresolved symbol references for functions defined externally. During compilation, the compiler lacks complete visibility into other modules, so it leaves these references as external symbols. The linker, in a subsequent step, merges these object files by matching the external symbol in $M1$ to the specific function definition in $M2$ and calculating their absolute memory addresses. This resolution of cross-module dependencies is the fundamental purpose of the linking phase. Consequently, the reference is resolved at link time.
